PLANET 4+1 100FX Port Multi-mode Industrial Ethernet Switch

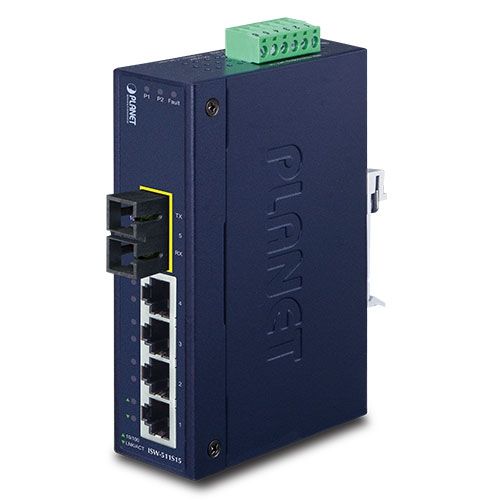

The PLANET ISW-511 and ISW-511S15 are slim-type industrial-grade 5-port Ethernet switches, purpose-built for harsh environments. They feature a robust IP30 metal enclosure, DIN-rail or wall mounting, and advanced fiber connectivity. The ISW-511 comes with a 100Base-FX SC Multi-Mode fiber port supporting up to 2 km, while the ISW-511S15 offers Single-Mode connectivity for up to 15 km. Both switches ensure stable, high-speed data transmission, redundant power input, and strong EMI protection.

Key Features:

• 4 x 10/100Base-TX RJ45 ports (Auto MDI/MDI-X, Auto Negotiation)
• 1 x 100Base-FX SC Fiber Port:
• ISW-511: Multi-Mode (2 km)
• ISW-511S15: Single-Mode (15 km)
• Rugged IP30-rated metal enclosure
• Operating temperature: -10 to 60 °C
• Dual 12–48V DC power input with polarity protection
• 6kV EFT and ESD immunity
• Relay output for power failure alarm

Hardware Specifications:

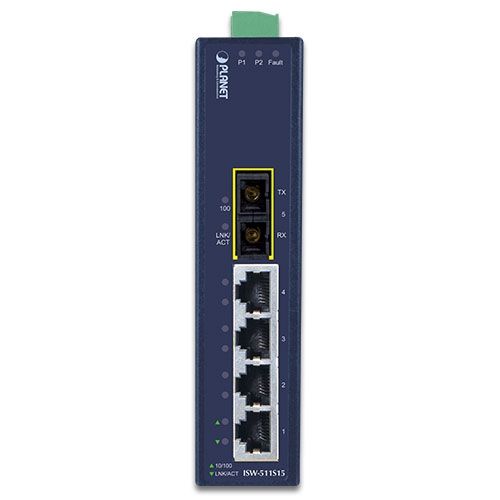

Copper Ports:

• 4 x 10/100Base-TX, Auto-Negotiation, Auto-MDI/MDI-X

Fiber Port:

• 1 x 100Base-FX SC connector
• ISW-511: Multi-Mode (50/125 µm), 1310 nm, 2 km range
• ISW-511S15: Single-Mode (9/125 µm), 1310 nm, 15 km range

Optical Power:

• Transmit Power:
• ISW-511: -14 to -19 dBm
• ISW-511S15: -7 to -20 dBm
• Receiver Sensitivity:
• ISW-511: -34.5 dBm
• ISW-511S15: -28 dBm

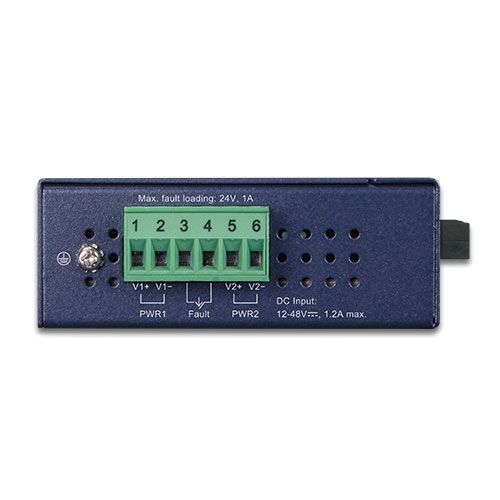

Power:

• Input: 12~48V DC (redundant), polarity-reversed protection
• Alarm: 1 relay output (1A @ 24V DC)
• Max. Power Consumption: 9.1W / 31BTU

Mechanical:

• Dimensions: 135 x 87.8 x 32 mm
• Weight: 436g
• Mounting: DIN-rail or wall-mount

Switching Specifications:

Switch Architecture:

• Store-and-Forward
• Switch Fabric: 1Gbps
• Throughput: 0.74Mpps @ 64Bytes
• MAC Address Table: 2K entries
• Buffer Memory: 1 Mbit
• Flow Control: IEEE 802.3x (full duplex), back pressure (half duplex)

Environment:

• Operating Temp: -10 ~ +60 °C
• Storage Temp: -40 ~ +85 °C
• Humidity: 5 ~ 90%, non-condensing

Compliance:

• Standards: IEEE 802.3, 802.3u, 802.3x
• Safety: UL, cUL
• Regulatory: FCC Part 15 Class A, CE
• Stability Testing: IEC60068-2-32 (free fall), -2-27 (shock), -2-6 (vibration)
