PLANET Industrial 5-Port 10/100TX Compact Ethernet Switch

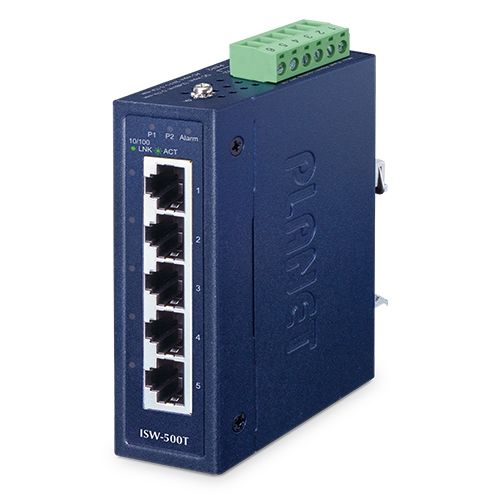

The PLANET ISW-500T is a compact 5-port 10/100TX Industrial Ethernet Switch, purpose-built for tight-space environments such as wall enclosures in harsh industrial conditions. With rugged IP30 metal housing, dual power input, and extended temperature tolerance (-40 to +75 °C), it ensures reliable operation for IIoT and automation networks.

Key Features:

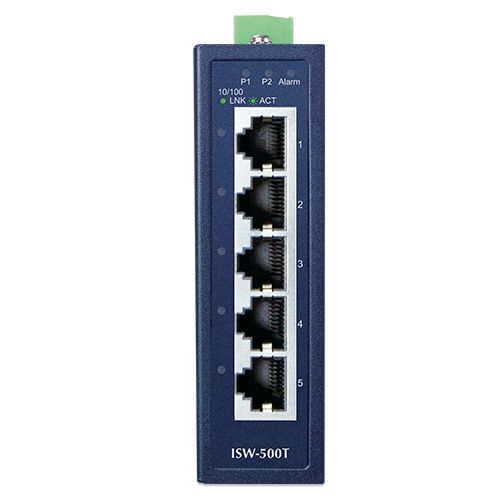

• 5 x 10/100BASE-TX RJ45 ports with auto MDI/MDI-X
• PROFINET traffic pass-through with QoS for prioritized automation data
• Dual power input: 12–48V DC or 24V AC with hardware failover
• Ultra-compact width: only 30mm – ideal for confined cabinets
• Energy efficient via IEEE 802.3az EEE and Auto Power Saving
• High surge/ESD protection: ±6kV ESD, ±4kV EFT

Special Functions:

• Prioritizes PROFINET packets over regular Ethernet traffic
• Reduces power based on link status and cable length
• No configuration needed – Plug and Play
• DIN-rail and wall-mountable for easy deployment

Technical Specifications:

Interfaces:

• 5 x 10/100BASE-TX RJ45, auto-negotiation, auto-MDI/MDI-X

Switching:

• Architecture: Store-and-Forward
• Switch Fabric: 1Gbps
• Throughput: 0.74Mpps @ 64 Bytes
• MAC Table: 1K entries
• Shared Buffer: 448Kbit
• Jumbo Frame: up to 1.5KB

Flow Control:

• Full Duplex: IEEE 802.3x pause frame
• Half Duplex: Back pressure

Power:

• Input: 12~48V DC (dual) or 24V AC

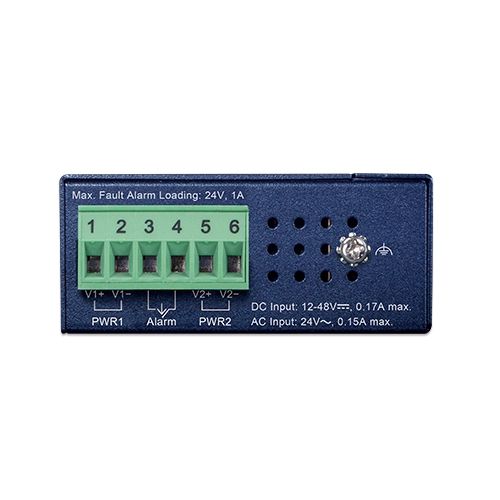

• Terminal Block: 6-pin (Power 1, Power 2, Fault Alarm)
• Alarm Output: 1A @ 24V DC

Mechanical:

• Dimensions: 30 x 70 x 104 mm
• Weight: 255g
• Housing: IP30-rated metal
• Mounting: DIN-rail or wall mount

Environment:

• Operating Temp: -40 to +75 °C
• Storage Temp: -40 to +75 °C
• Humidity: 5 ~ 95% (non-condensing)

Power Consumption:

• Idle: 1.1W / 3.77 BTU
• Full Load: 2W / 6.86 BTU

Certifications and Protections:

• ESD: ±6kV, EFT: ±6kV
• Stability: Shock, vibration, free-fall (IEC 60068)
• Compliant with IEEE 802.3/u/x/az, 802.1p, PROFINET QoS
• Regulatory: FCC Class A, CE, UL
