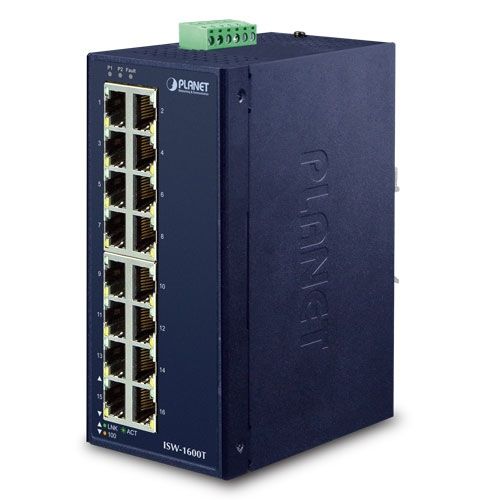

PLANET Industrial 16-Port 10/100/TX Switch

The PLANET ISW-1600T is a rugged 16-port industrial Fast Ethernet switch, designed for high-density Ethernet connectivity in harsh environments such as factory floors, roadside cabinets, and warehouse automation. Its IP30-rated metal housing, wide voltage input, and extended temperature range make it ideal for demanding installations.

Key Features:

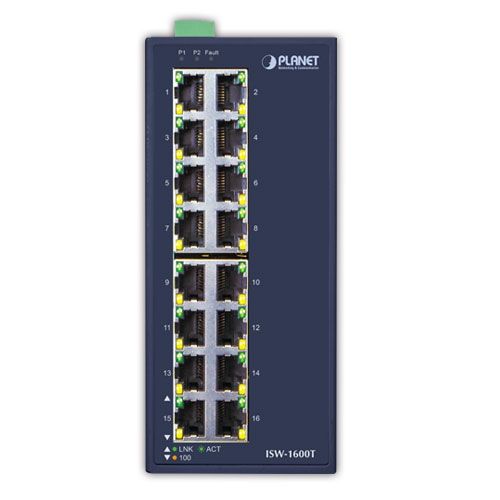

• 16 x 10/100BASE-TX RJ45 ports with auto MDI/MDI-X
• Supports wide range dual power inputs: 12–48V DC and 24V AC
• Energy-efficient IEEE 802.3az plus link-down and cable-length power saving
• Operating temperature: -40 to +75 °C
• 6kV ESD and surge protection
• DIN-rail and wall-mount support

Advanced Energy Efficiency:

• Link-down power saving for inactive ports
• Intelligent power scaling based on cable length (<20m for maximum savings)

Reliable Industrial Networking:

• Ideal for IP surveillance, VoIP systems, and wireless networks
• 16K Jumbo frame support and auto MAC learning
• Built-in relay alarm for power failure

Technical Specifications:

Network Ports:

• 16 x 10/100BASE-TX RJ45, auto-negotiation, auto MDI/MDI-X

Switching:

• Architecture: Store-and-Forward
• Switch Capacity: 3.2Gbps non-blocking
• Throughput: 2.38Mpps @ 64 Bytes
• MAC Table: 16K entries
• Jumbo Frame: 16KB
• Buffer Memory: 4Mbit

Flow Control:

• IEEE 802.3x pause frame (full-duplex)
• Back pressure (half-duplex)

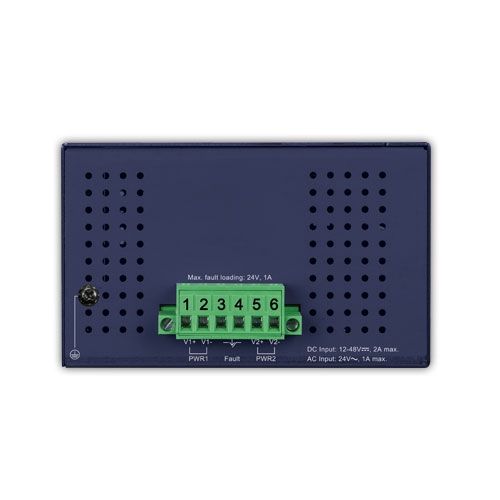

Power Supply:

• Dual 12–48V DC or 24V AC inputs
• Connector: 6-pin terminal block
• Alarm: 1 relay output (1A @ 24V DC) for power failure

Mechanical:

• Housing: IP30-rated metal
• Dimensions: 66 x 107 x 152 mm
• Weight: 750 g
• Mounting: DIN-rail or wall-mount

Environmental:

• Operating Temp: -40 to +75 °C
• Storage Temp: -40 to +85 °C
• Humidity: 5–95% non-condensing

Protection & Certifications:

• ESD: ±6kV contact / air
• Shock, vibration, and drop: IEC60068 compliant
• Standards: IEEE 802.3/u/x/1p/3az
• Compliance: FCC Part 15 Class A, CE, UL
