PLANET Industrial 1Port 802.3bt PoE++ to 2Port 802.3at GE

Your rating:
Average rating
Rating for PLANET Industrial 1Port 802.3bt PoE++ to 2Port 802.3at GE
( 0 / 5 ) 0 ratings
Planet IPOE-E302Planet IPOE-E302Planet IPOE-E302Planet IPOE-E302Planet IPOE-E302Planet IPOE-E302

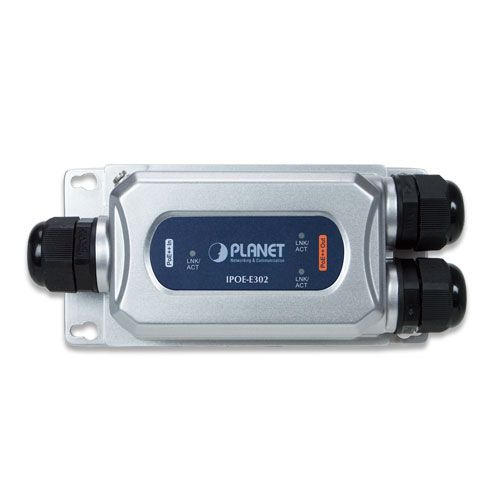

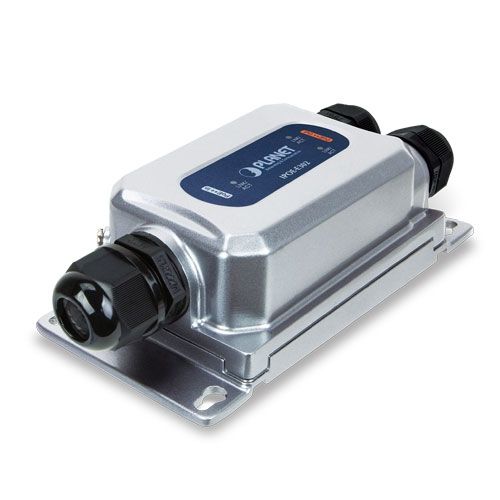

Planet IPOE-E302
This image may differ from the desired article.
134,59 EUR
( 160,16 EUR incl. VAT )
2025-12-07Delivery time on requestinfo_outline
1x PLANET Industrial 1Port 802.3bt PoE++ to 2Port 802.3at GE
Lieske Part No.:277410
Mfg Part No: IPOE-E302
UPC/EAN: 4711605284929
Weight:0.63 kg

Product information for Planet IPOE-E302:

The PLANET IPOE-E302 is an industrial-grade, IP67-rated 1-port to 2-port 802.3bt/at PoE++ extender, designed to extend both data and power up to 200 meters without needing additional AC wiring. Receiving up to 95 watts from an 802.3bt PoE++ input, it can deliver up to 60 watts per port to two PoE devices, making it ideal for outdoor wireless and surveillance deployments.

Key Features:

  • Input: 1 x IEEE 802.3bt (Type 4/3) PoE++ port, up to 95W
  • Output: 2 x IEEE 802.3bt Type 3 / 802.3at PoE ports, up to 60W each
  • Max total PoE budget: 60W (Type 3 input)
  • Increases total PoE distance from 100 to 200 meters
  • IP67 & IK10-rated aluminum housing
  • Operating temperature: -40 to +75 °C

Ideal Applications:

  • Outdoor wireless access points
  • Outdoor IP surveillance cameras
  • Smart pole installations
  • IP intercom systems

Benefits:

  • No external power needed
  • Saves cable cost and labor
  • True plug-and-play installation

PoE Architecture:

  • 1 PoE-in (802.3bt Type 4 or 3)
  • 2 PoE-out (802.3bt Type 3 or 802.3at)
  • Auto PD detection
  • Power forwarded via all 4 pairs

Technical Specifications:


Interfaces:
  • 1 x RJ45 PoE IN (10/100/1000BASE-T, auto MDI/MDI-X)
  • 2 x RJ45 PoE OUT (10/100/1000BASE-T, auto MDI/MDI-X)

PoE:

  • PoE IN: IEEE 802.3bt Type 4/3, IEEE 802.3at
  • Input: 52–57V DC, up to 95W
  • PoE OUT:
  • IEEE 802.3bt Type 3 or 802.3at
  • Up to 60W per port
  • Power Pins: 1/2, 3/6, 4/5, 7/8
  • IEEE 802.3af not supported

Switching:

  • Architecture: Store-and-Forward
  • MAC Table: 2K
  • Buffer: 1Mbit
  • Fabric: 6Gbps / Throughput: 4.46Mpps
  • Jumbo Frame: 9KB

Mechanical:

  • Dimensions: 150.5 x 43.8 x 72.94 mm
  • With cable gland: 169.85 x 43.8 x 72.94 mm
  • Weight: 339g (372g with glands)
  • Housing: Aluminum, IP67, IK10-rated
  • Mounting: Wall mount

Protection:

  • ESD: ±6 kV contact / ±8 kV air
  • Surge: ±6 kV

Environmental:

  • Operating Temp: -40 to 75°C
  • Humidity: 5–95% (non-condensing)
  • Storage Temp: -40 to 85°C

Certifications:

  • FCC Class A, CE
  • IEC 60068-2 (Shock, Drop, Vibration)
  • IEEE 802.3/u/ab/x/af/at/bt compliant
