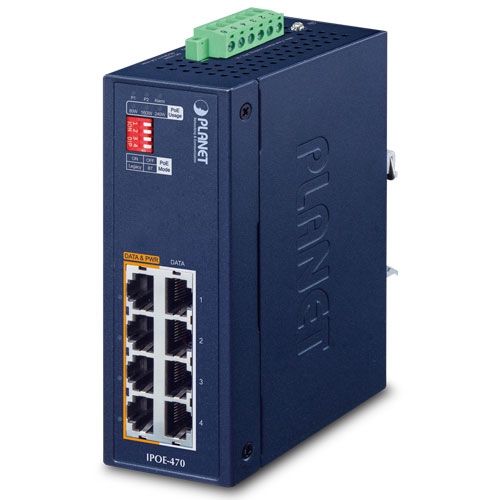

PLANET Industrial 4-Port GE 802.3bt PoE++ Injector Hub

The PLANET IPOE-470 is a compact, industrial-grade 4-port IEEE 802.3bt PoE++ injector hub delivering up to 95 watts per port and a total power budget of 240 watts. With four 10/100/1000/2500BASE-T RJ45 ports, it enables high-performance data and power transmission for high-power applications such as PTZ cameras, AIO PCs, POS systems, and smart signage over a single Ethernet cable.

Key Features:

• Supports IEEE 802.3bt Type 4 and 802.3at
• 4 PoE output ports, up to 95 W each
• 240W total PoE budget @ 54V DC
• Supports 2.5Gbps Ethernet speeds
• Real-time PoE usage LEDs (80W/160W/240W)

PoE++ Upgrade Made Simple
Install between any switch and PDs. Adds PoE++ capability without replacing infrastructure. Centralizes power and eliminates the need for local power outlets.

Reliable Power with Redundancy
Dual DC input (48–54V) with reverse polarity protection and fault alarm input. DIP switches allow selection of BT or Legacy mode per port.

Compatible with PoE Extenders and Splitters
Use PLANET IPOE-E302 for long-distance extension or IPOE-173S/176S to power non-PoE high-power devices.

Technical Specifications:

Network Interfaces:

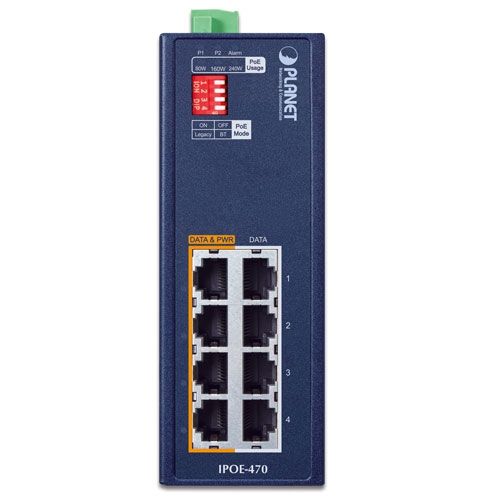

• 4 x RJ45 (10/100/1000/2.5G Data Input)
• 4 x RJ45 (Data + Power Output)

PoE Features:

• IEEE 802.3bt Type 4 (PoE++), backward-compatible with 802.3at
• Power Output:
• 95W (802.3bt)
• 60W (Legacy)
• 36W (802.3at)
• Total Power Budget:
• 120W @ 48V DC
• 240W @ 52–54V DC
• DIP switch per port: BT/Legacy

Power Input:

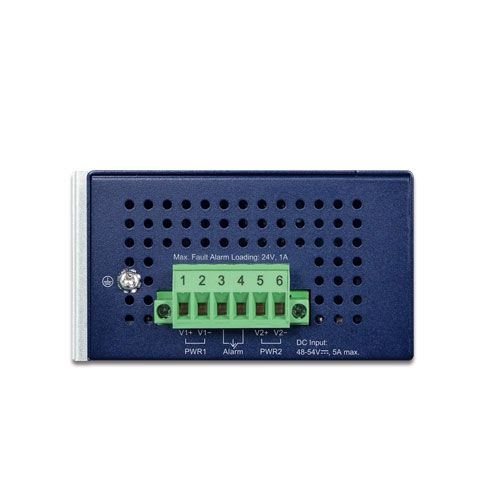

• 6-pin terminal block (Power 1, Power 2, Alarm)
• 48–54V DC, redundant with polarity protection

Power Consumption:

• System ON, no load: 1.92–2.16W
• Full load: up to 240W @ 54V DC

Indicators:

• Power 1/2 (Green), Alarm (Red)
• PoE usage: 80W / 160W / 240W (Amber)
• PoE in use per port (Amber)

Construction:

• Housing: IP30-rated metal
• Dimensions: 50 × 87.8 × 135 mm
• Weight: 544g
• Mounting: DIN-rail or wall

Protection:

• ESD: ±6kV (contact), ±8kV (air)
• Surge: ±6kV

Environment:

• Operating Temp: -40 ~ 75°C
• Humidity: 5–90% (non-condensing)

Certifications:

• IEEE 802.3 / u / ab / at / bt
• FCC Class A, CE
• IEC 60068 (Drop, Shock, Vibration)
