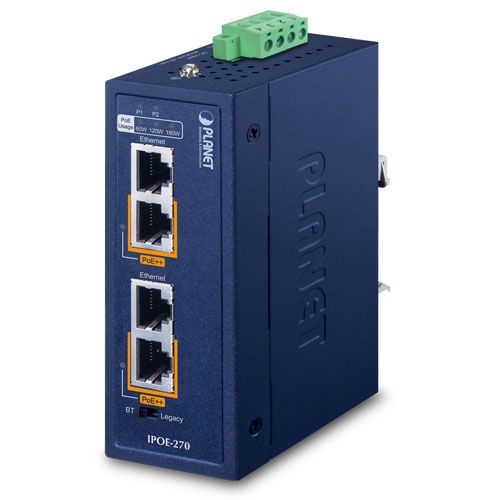

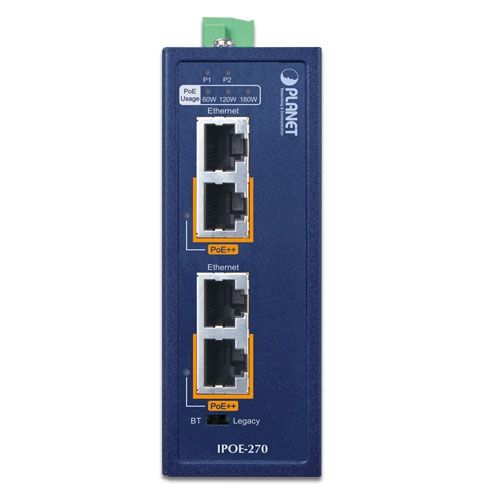

PLANET Industrial 2-Port GE 802.3bt PoE++ Injector Hub

The PLANET IPOE-270 is a 2-port industrial-grade 802.3bt PoE++ injector hub that delivers up to 95 watts per port and a total PoE power budget of 180 watts. Supporting data rates up to 5Gbps, this compact device enables simultaneous transmission of power and data over UTP cables, making it ideal for high-power devices like PTZ cameras, digital signage, and PoE lighting systems.

Two Models Available:

• IPOE-270: 48~54V DC input

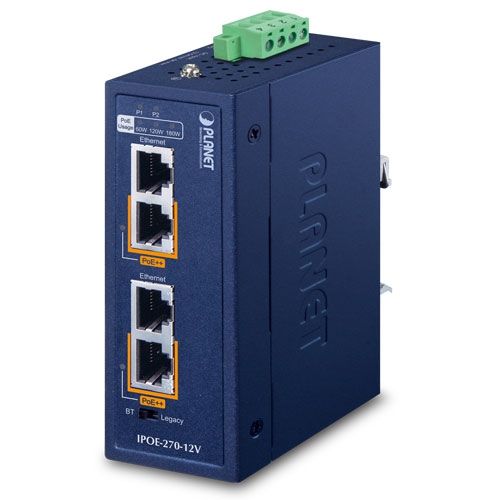

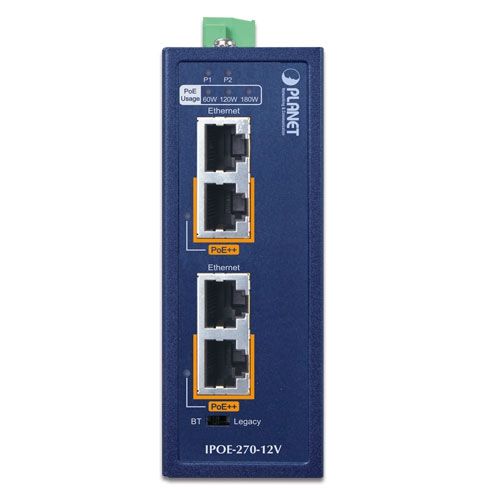

• IPOE-270-12V: 12~54V DC input with internal boost to 54V

Easy 802.3bt Upgrade for Any Network
The IPOE-270 is installed between your existing Ethernet switch and PDs, enabling PoE++ capability without replacing existing infrastructure.

BT / Legacy / Force Modes via DIP Switch
Choose from full IEEE 802.3bt compliance, legacy capacitive load support, or forced output—each port delivers up to 95W.

Real-time LED Power Monitoring
LEDs show current power usage (60W/120W/180W) and power source status, simplifying diagnostics.

Compatible with PoE++ Splitters
When paired with IPOE-173S or IPOE-176S, it powers legacy or non-PoE high-power devices over long distances.

Extend PoE Range Easily
With PLANET IPOE-E302 PoE extender, you can extend the PoE range to 200 meters—ideal for remote camera installations.

Technical Details:

Interfaces:

• 2 x RJ45 Data-IN (10/100/1G/2.5G/5GBASE-T)
• 2 x RJ45 Data + Power OUT (IEEE 802.3bt)
• Max Cable Length: 100 meters

PoE Features:

• Standard: IEEE 802.3bt Type 4, backward-compatible with 802.3at
• Output Power:
• 95W per port
• Total up to 180W
• Power Modes: BT, Legacy, Force
• Pin Assignment: End-span + Mid-span (4-pair)

Power Input:

• Terminal Block (reverse polarity protection)

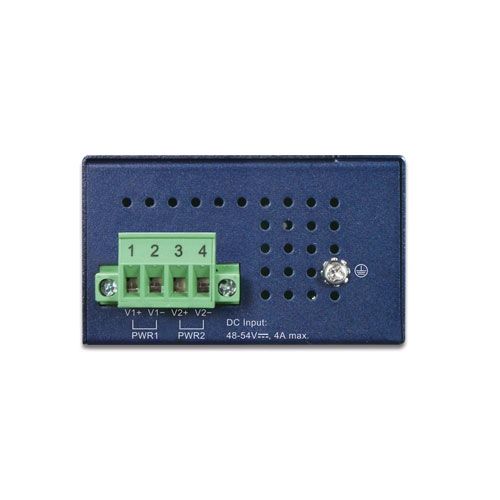

• IPOE-270: 48~54V DC

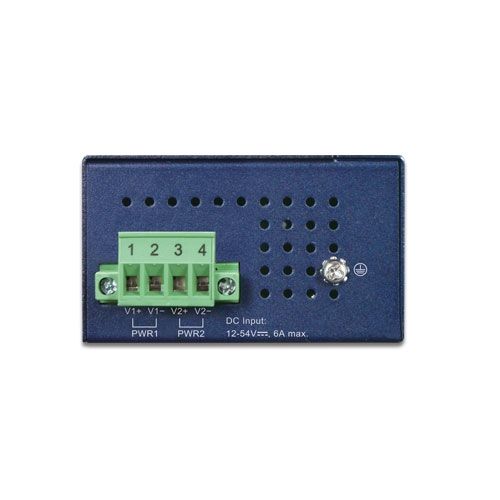

• IPOE-270-12V: 12~54V DC with boost

Power Consumption:

• System ON: 1.4–2.6W depending on input
• Full Load: up to 188W depending on voltage

LED Indicators:

• Power 1 & Power 2 (Green)
• PoE Usage: 60W / 120W / 180W (Amber)
• PoE-in-use: Green (bt), Amber (at)

Housing:

• IP30-rated metal
• Dimensions: 41 x 70 x 115 mm
• Weight: IPOE-270: 284g, IPOE-270-12V: 387g
• Mounting: DIN-rail or wall-mount

Protection:

• ESD: 6kV
• Surge: 6kV

Environmental:

• Operating Temp: -40 to 75°C
• Humidity: 5–90%, non-condensing

Certifications:

• IEEE 802.3 / u / ab / bz / at / bt
• FCC Class A, CE
• Stability: IEC 60068-2 (drop, shock, vibration)
