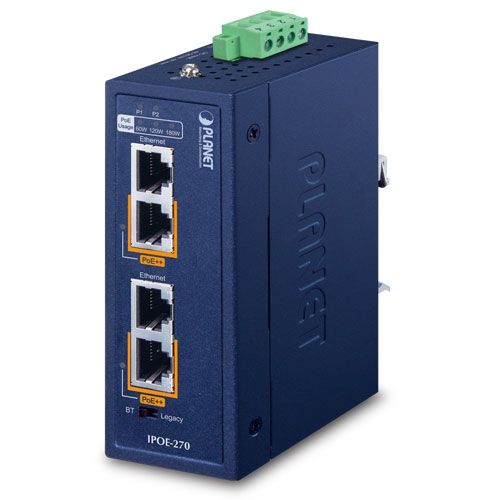

PLANET Industrial 2-Port GE 802.3bt PoE++ Injector Hub (12V)

The PLANET IPOE-270 series is a compact, robust 2-port industrial IEEE 802.3bt PoE++ injector hub providing up to 95 watts per port and a total PoE power budget of 180 watts. With dual 10/100/1G/2.5G/5GBASE-T RJ45 ports and wide voltage input ranges, it’s the perfect solution for high-power networking deployments—such as PTZ cameras, digital signage, AIO touch PCs, POS terminals, and PoE lighting.

Models:

• IPOE-270: 48–54V DC input

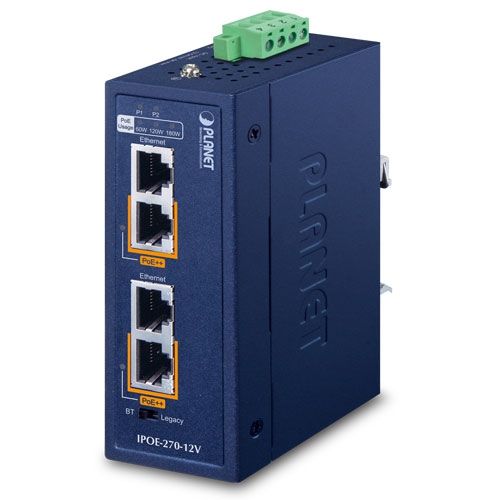

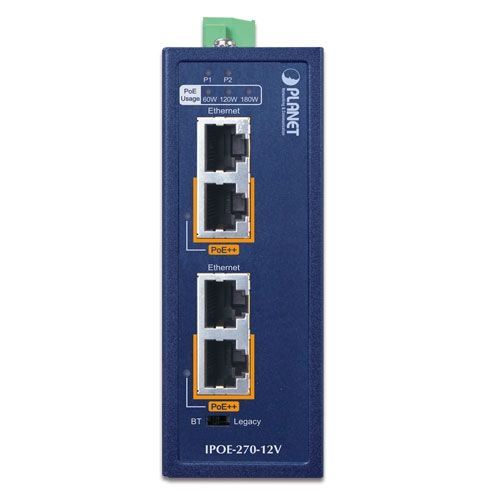

• IPOE-270-12V: 12–54V DC input with internal boost to 54V

Upgrade PoE++ without Replacing Switches
Install it between any standard Ethernet switch and the PD. It transforms legacy network segments into PoE++-capable links.

High Power, Flexible Modes

• Supports 802.3bt (Type 4) and 802.3at
• Delivers 95W per port
• DIP switch for BT, Legacy, and Force modes
• End-span and Mid-span PoE supported

Efficient Power Monitoring & Dual Inputs
LEDs indicate live power usage (60W/120W/180W). Dual power input terminals (redundant) ensure high availability.

Range Extension Ready
Works with PoE extenders (e.g., IPOE-E302) to double the reach—ideal for surveillance and remote PDs up to 200m.

Splitter Compatibility
Perfect partner for IPOE-173S or IPOE-176S for non-PoE or legacy device powering.

Technical Details:

Interfaces:

• 2 x RJ45 Data In (10M to 5G)
• 2 x RJ45 PoE Out (IEEE 802.3bt)
• DIP switch for PoE modes

Power:

• IPOE-270: 48–54V DC input
• IPOE-270-12V: 12–54V DC input (boosts to 54V)

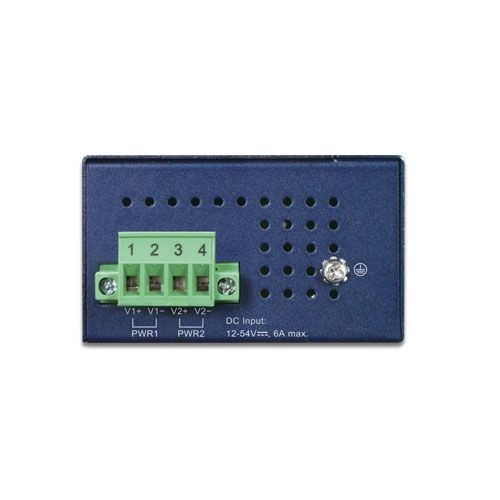

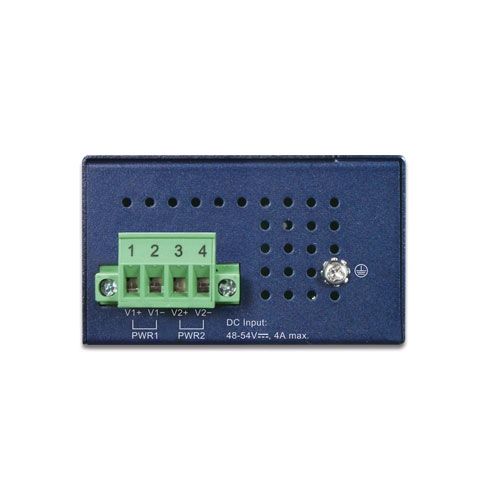

• 4-pin removable terminal block
• Max per-port output: 95W
• Max budget: 180W

Power Usage:

• System ON: 1.4–2.6 W
• Full Load: up to 188 W (depending on model/input)

PoE:

• Standards: IEEE 802.3bt Type 4, backward with 802.3at
• PoE Type: End-span + Mid-span
• Power Pin: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• Cable: Cat 5e to 7, up to 100 meters

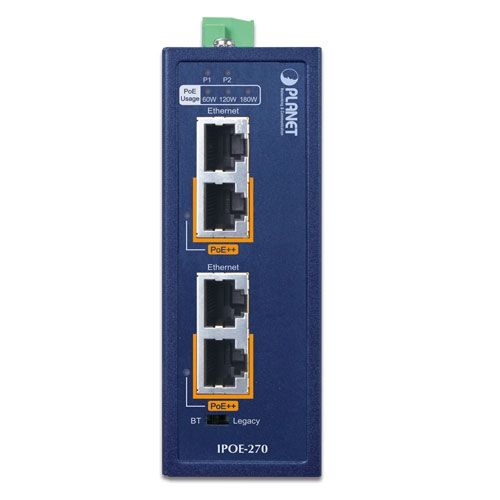

LED Indicators:

• Power 1 / 2 (Green)
• PoE Usage (60W/120W/180W)
• PoE-in-use: Green = bt, Amber = at

Mechanical:

• Housing: IP30 Metal
• Dimensions: 41 x 70 x 115 mm
• Weight: IPOE-270: 284g / IPOE-270-12V: 387g
• Mounting: DIN-rail and wall

Protection:

• ESD: 6 kV
• Surge: 6 kV

Environment:

• Operating Temp: -40 ~ 75°C
• Storage Temp: -40 ~ 75°C
• Humidity: 5 ~ 90% (non-condensing)

Certifications:

• IEEE 802.3af/at/bt, 802.3u/ab/bz
• FCC Class A, CE
• IEC 60068 stability tests (drop/shock/vibration)
