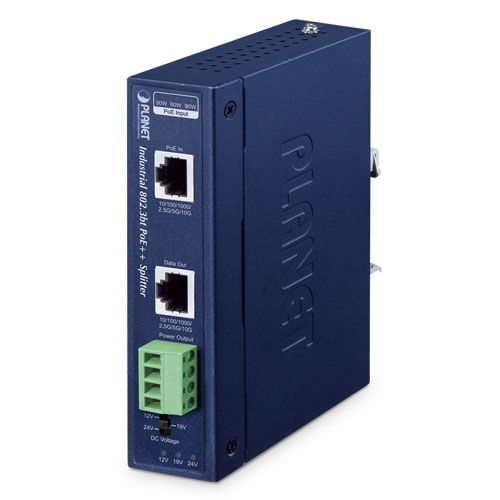

Planet Industrial Single Port PoE++ Splitter IPOE-176S

The PLANET IPOE-176S is a robust, industrial-grade 802.3bt PoE++ splitter that receives up to 70 watts of PoE power and Gigabit/Multi-Gigabit Ethernet data through a single UTP cable and converts it into three selectable DC outputs (12V / 19V / 24V). With two 10GBASE-T RJ45 ports, it handles ultra-high data rates and supplies traditional, non-PoE devices such as PTZ cameras, industrial 4K displays, or 5G outdoor units – even in harsh environments.

Flexible DC Output Options
An integrated DIP switch lets users toggle between 12V, 19V, or 24V DC output, offering extensive compatibility with power-hungry devices and sensitive electronics alike.

10G Multi-Gigabit Performance & Dual Power Output
With support for up to 10Gbps and dual DC outputs via 4-pin terminal block, the IPOE-176S powers either one or two non-PoE devices simultaneously – e.g. a camera and an outdoor housing fan/heater.

Industrial Build for Harsh Environments
Encased in an IP30-rated metal housing with 4kV ESD and EFT protection, it withstands extreme temperatures from -40 to 75°C and supports both DIN-rail and wall-mount installations.

Ideal for Use with 802.3bt PoE++ Injectors
Pair it with PoE++ injectors like the IPOE-171-95W or IPOE-175 for a complete, flexible power and data solution without additional AC cabling.

Technical Details:

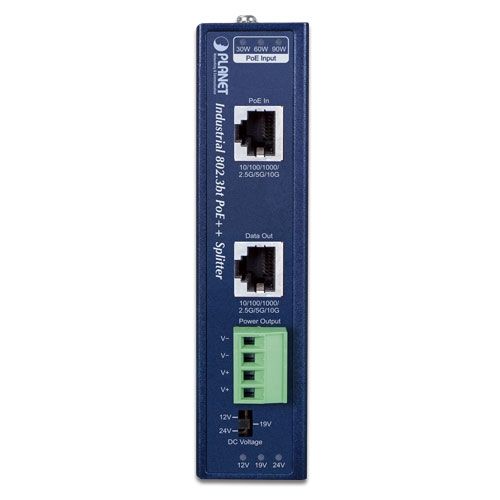

Interfaces:

• 1 x RJ45 PoE-IN (10M/100M/1G/2.5G/5G/10G)
• 1 x RJ45 Data-OUT
• 1 x 4-pin terminal block (DC Output)
• 1 x DIP switch (12V / 19V / 24V)

PoE Specs:

• Compliant: IEEE 802.3bt Type 4, backward with 802.3at
• Output Power:
• 12V DC @ 6.8A
• 19V DC @ 4.3A
• 24V DC @ 3.3A
• Max Output: 70W total
• Distance: up to 100m (1G/2.5G), 80m for 5G/10G
• Power Mode: End-span + Mid-span
• Pin Assignment: 1/2, 3/6, 4/5, 7/8 (+/-)

LED Indicators:

• PoE Input: 30W / 60W / 90W (Green)
• Voltage Output: 12V / 19V / 24V (Green)

Mechanical:

• Dimensions: 32 x 87.8 x 135 mm
• Weight: 433 g
• Enclosure: IP30-rated metal
• Mounting: DIN-rail or wall-mount

Protection:

• ESD: 4kV
• EFT: 4kV

Power Usage:

• System On: 5.5W–7.6W
• Max Load: ~98W depending on output voltage

Cabling:

• Cat.5e/6/6A/7, 4-pair UTP
• Supports up to 10GBASE-T

Environmental:

• Operating Temp: -40 to 75°C
• Storage Temp: -40 to 85°C
• Humidity: 5 – 95%, non-condensing

Compliance:

• IEEE 802.3af / at / bt
• IEEE 802.3ab / bz / u / 10BASE-T
• FCC Class A, CE
