PLANET Industrial 1-Port 802.3bt PoE++ Injector IP67

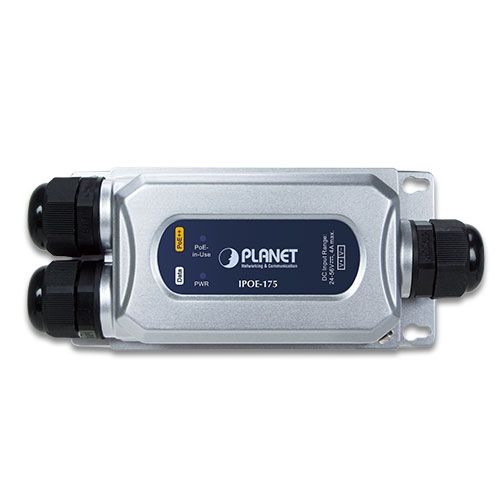

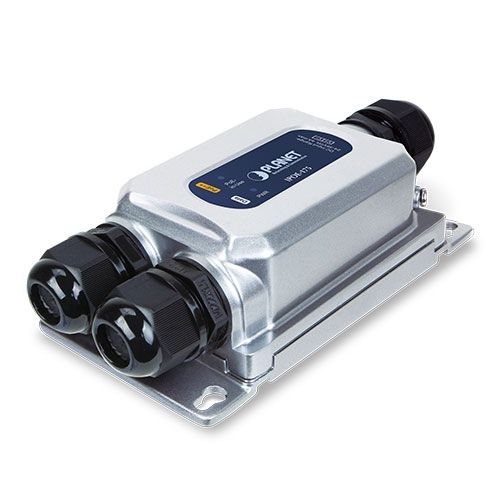

The PLANET IPOE-175 is a rugged, industrial-grade 802.3bt Type 3 PoE++ injector that provides up to 60 watts of output power over a single Ethernet cable. Featuring an IP67-rated aluminum enclosure, wide operating temperature range (-40 to 75°C), and 2.5G-capable RJ45 interfaces, the IPOE-175 is the ideal choice for outdoor or harsh industrial PoE deployments.

With support for 24–56V DC input and integrated power boost to 54V DC, the IPOE-175 enables flexible and reliable power delivery to high-power devices such as PTZ cameras, VoIP touchscreen phones, wireless APs, and remote displays—even in areas without local AC outlets.
IP67-rated for Outdoor Applications

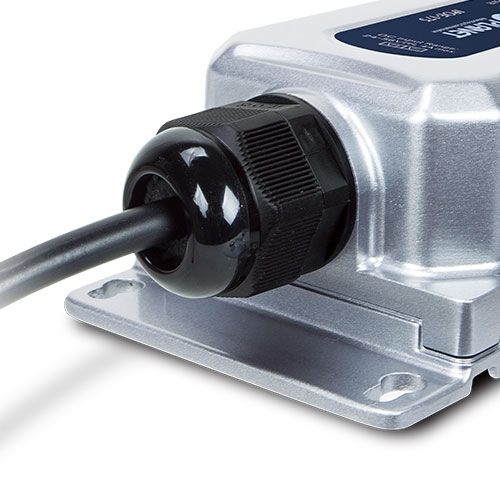

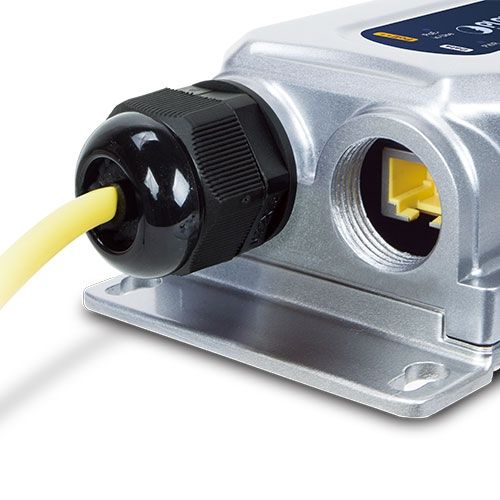

Built to withstand water, dust, vibration, shock, and extreme temperatures. Cable glands provide sealed RJ45 connections for direct exposure environments.

High-Power IEEE 802.3bt PoE++ Support
Delivers up to 60W using all four pairs of UTP cabling. Backward compatible with IEEE 802.3at and capable of 2.5Gbps Ethernet throughput.

Industrial Stability and Surge Protection
Features ESD protection up to 8kV and 6kV surge immunity for high operational reliability in mission-critical applications.

Easy Plug & Play Setup
Just plug in the Ethernet cables and DC power – no software required. Can be paired with the IPOE-173S splitter to power legacy devices.

Technical Details:

Network Interfaces:

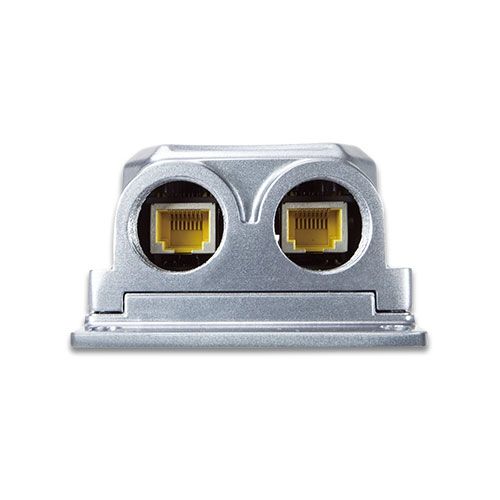

• 1 x RJ45 Data In (10/100/1000/2500 Mbps)
• 1 x RJ45 Data + PoE Out (IEEE 802.3bt)

Power Input:

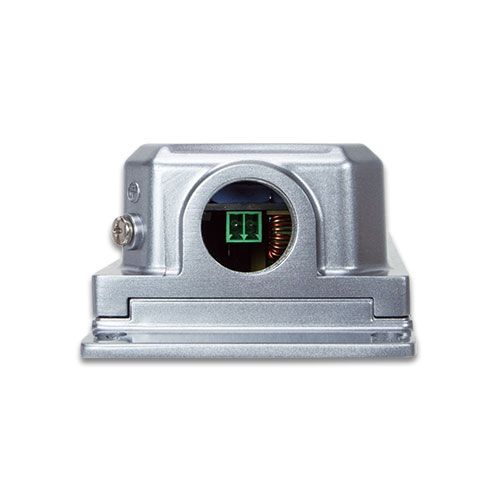

• 1 x 2-pin terminal block (24–56V DC)
• Boosts input to 54V internally
• Max power consumption: up to 72W (at 24V DC)

PoE Features:

• PoE Standards: IEEE 802.3bt Type 3 (60W), IEEE 802.3at (30W)
• PoE Types: End-span + Mid-span
• Pin Assignment: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• Distance: up to 100 meters

Protection:

• ESD: 8kV air, 6kV contact
• Surge Immunity: 6kV

Mechanical:

• Housing: IP67 and IK10-rated aluminum
• Dimensions: 150.5 x 43.8 x 72.93 mm (169.85 mm incl. cable gland)
• Weight: 485g
• MTBF: >100,000 hours
• Installation: Wall-mount

Environmental:

• Operating Temp: -40 to 75°C
• Storage Temp: -40 to 85°C
• Humidity: 5 – 95%, non-condensing

Certifications & Standards:

• IEEE 802.3 / 802.3u / 802.3ab / 802.3af / 802.3at / 802.3bt
• FCC Part 15 Class A, CE
• Stability Tests: IEC 60068-2-32 (Drop), -2-27 (Shock), -2-6 (Vibration)
