PLANET Industrial 1-Port 802.3bt PoE++ Splitter

The PLANET IPOE-173S is a high-performance, industrial-grade IEEE 802.3bt Type 4 PoE++ splitter that separates up to 70 watts of PoE power and Gigabit Ethernet data from a single Ethernet cable. Equipped with a DIP switch, it supports selectable 12V, 19V, or 24V DC output to power non-PoE devices such as PTZ cameras, touch-screen IP phones, digital signage, and other high-power network hardware without the need for additional electrical wiring.

Powerful 70W PoE++ Splitter
Receives 802.3bt power input and delivers up to 70W through a terminal block in one of three user-selectable voltage levels (12V/19V/24V).

Flexible DC Output Options
A DIP switch lets users select the desired voltage level. LEDs clearly indicate the current output voltage and PoE power level (30W, 60W, 90W).

Dual DC Output Capability
Supports power sharing to two non-PoE devices simultaneously—for example, an IP camera and a pan-tilt motor or housing heater. Total power output must not exceed 70W.

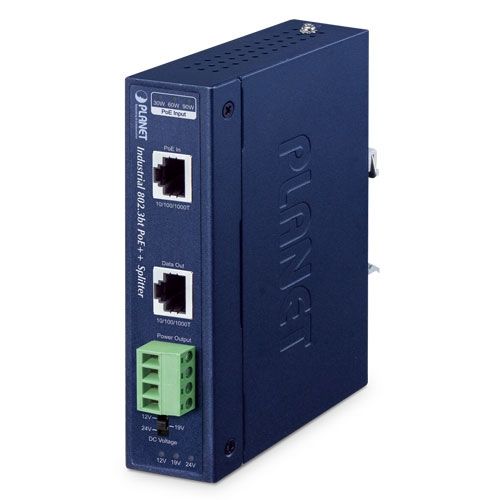

Rugged Industrial Design
With its compact IP30-rated metal housing, -40 to 75°C operating range, and 4kV ESD/EFT protection, the IPOE-173S is engineered for harsh industrial environments.

Easy Integration into PoE++ Networks
Perfectly complements high-power injectors like the IPOE-171-60W or IPOE-171-95W to support non-PoE devices across up to 100 meters of Cat.5e/6 cabling.

Technical Details:

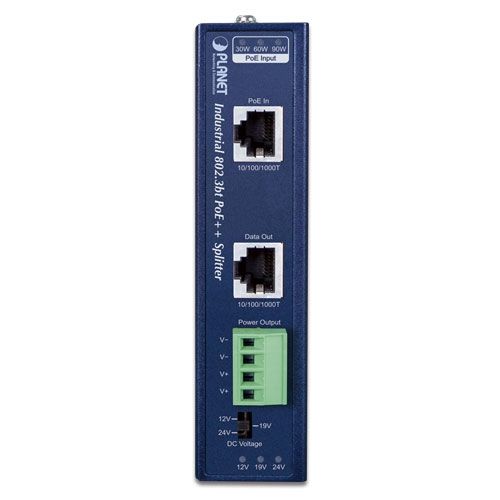

Interfaces:

• 1 x RJ45 PoE IN (10/100/1000 Mbps)
• 1 x RJ45 Data OUT (10/100/1000 Mbps)
• 1 x 4-pin removable terminal block (DC output)
• 1 x DIP switch (12V / 19V / 24V selection)

PoE Features:

• Compliant with IEEE 802.3bt PoE++ and IEEE 802.3at
• Max Output: 70W
• DC Output: 12V @ 6.8A, 19V @ 4.3A, 24V @ 3.3A
• Distance: up to 100 meters
• PoE Types: End-span + Mid-span

LED Indicators:

• Power Input: 30W, 60W, 90W
• Voltage Output: 12V, 19V, 24V (all green)

Construction:

• IP30-rated metal housing
• Dimensions: 32 x 87.8 x 135 mm
• Weight: 440 g
• Mounting: DIN-rail or wall-mount

Protection:

• ESD Protection: 4kV
• EFT Protection: 4kV

Cabling:

• IEEE 802.3bt: 4-pair Cat.5e/6 up to 100m
• IEEE 802.3at: 2-pair Cat.5/5e/6 up to 100m

Environment:

• Operating Temperature: -40 to 75°C
• Storage Temperature: -40 to 85°C
• Humidity: 5 – 95%, non-condensing

Certifications:

• IEEE 802.3 / 802.3u / 802.3ab / 802.3bt
• FCC Class A, CE
