PLANET Industrial Single Port 10/100/1000Mbps Ultra PoE 95W

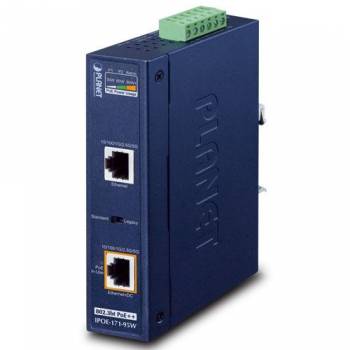

The PLANET IPOE-171-95W is a powerful, industrial-grade PoE++ injector supporting the IEEE 802.3bt standard. It delivers up to 95 watts of power over one Ethernet cable using all four twisted-pair wires, making it ideal for high-power devices such as smart lighting, all-in-one touch PCs, digital signage displays, and other power-hungry equipment.

Featuring dual Multi-Gigabit RJ45 ports (100M/1G/2.5G/5G), IP30-rated rugged metal casing, a wide operating temperature range of -40 to 75°C, and dual redundant 12–54V DC power inputs, the IPOE-171-95W is perfectly suited for harsh industrial environments.

95W Power over 4-Pair Ethernet
Supports IEEE 802.3bt Type 4, delivering up to 95W at the injector and up to 71W at the PD. Fully backward compatible with 802.3af/at.

Easy Deployment & Wide Compatibility
Plug and play with no configuration required. Supports standard, legacy, and force modes for powering non-compliant devices.

Real-Time Power Monitoring
LED indicators provide immediate feedback on power input status and usage levels, allowing administrators to monitor connected device power draw in real time.

Versatile Power Input
Accepts 12–54V DC and boosts internally to 54V, supports dual input with reversible polarity for high availability deployment worldwide.

Industrial Design
Compact IP30 metal case, DIN-rail or wall-mount options, 6kV ESD protection, and a wide temperature range make it ideal for factory, outdoor, and infrastructure use.

Technical Details:

Network Interfaces:

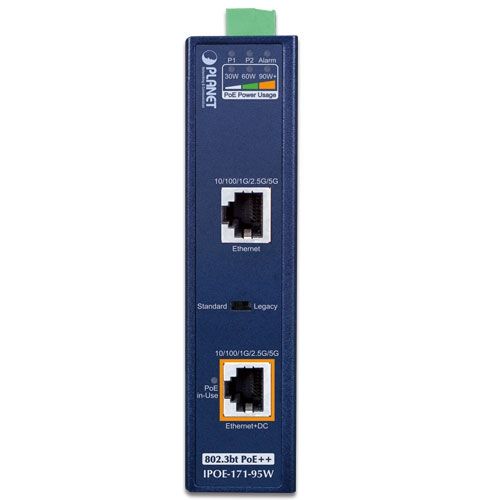

• 1 x RJ45 (Data In)
• 1 x RJ45 (Data + Power Out)
• Speeds: 10M/100M/1G/2.5G/5G

PoE Capabilities:

• Standards: IEEE 802.3af/at/bt (Types 1–4)
• Max Power Output: 95W (up to 71W at 100m)
• PoE Mode: End-span + Mid-span, 4-pair
• DIP switch: Standard, Legacy, Force

Power Supply:

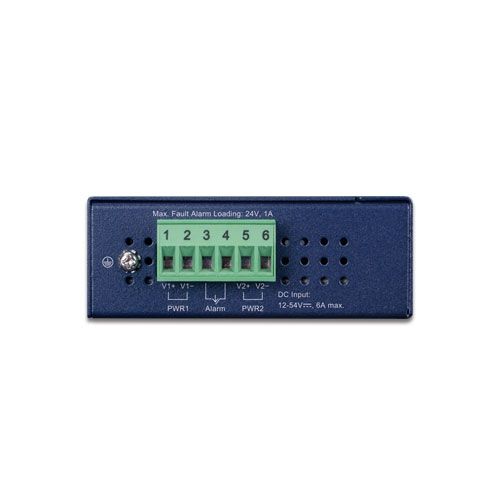

• Input: 12–54V DC via terminal block (redundant)
• Output: 54V DC via RJ45
• Max Power Consumption: 75W

LED Indicators:

• Power 1 & 2 (Green), Fault (Red)
• PoE-in-Use (Amber), PoE Usage x3 (Amber)

Housing:

• Material: Metal IP30)
• Dimensions: 135 x 87.8 x 32 mm
• Weight: approx. 406 g
• Mounting: DIN-rail or wall-mount

Environment:

• Operating Temp: -40 to 75°C
• Storage Temp: -40 to 85°C
• Humidity: 5 – 90%, non-condensing

Accessories:

• User manual, wall-mount kit, dust cap

Certifications:

• IEEE 802.3 / 802.3u / 802.3ab / 802.3bz / 802.3bt
• FCC Part 15 Class A, CE
