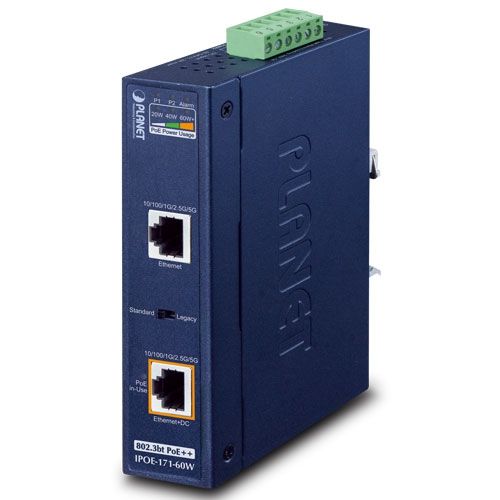

PLANET Industrial Single Port 10/100/1000Mbps Ultra PoE 60W

The PLANET IPOE-171-60W is an advanced industrial-grade 802.3bt PoE++ injector that provides up to 60 watts of output power using all four twisted-pair wires over standard Cat.5e/6 cabling. With dual RJ45 copper ports supporting 100M/1G/2.5G/5G data speeds, it meets the high bandwidth and power demands of next-generation PoE-enabled devices such as all-in-one PCs, digital signage, smart lighting, and more.

When used with the IPOE-173S PoE splitter, it can supply selectable 12V/24V DC output, enabling easy power and data deployment for non-PoE devices even in remote or hard-to-wire locations.

High-Power PoE++ over 4 Pairs
Delivers 60W of PoE power using 802.3bt (Type 3) standard. Up to 51W available at the powered device (PD) over 100m UTP cable. Fully backward compatible with 802.3af/at.

Multi-Gigabit Speeds
Supports 10/100/1000Mbps, 2.5Gbps, and 5Gbps data rates—perfect for high-definition streaming and data-intensive network applications.

Flexible PoE Modes
In addition to standard mode, the injector includes legacy and force modes to power older PDs that may not follow full IEEE standards.

Real-time Power Monitoring and Redundancy
Three amber LEDs show current PoE usage level. Equipped with dual DC power input (48~54V) and a relay alarm output for power failure alert.

Industrial Durability
Compact IP30-rated metal housing supports DIN-rail or wall-mounting and offers ESD protection (6kV). Operates reliably in harsh temperatures from -40 to 75°C.

Technical Details:

Network Interfaces:

• 1 x RJ45 (Data In)
• 1 x RJ45 (Data + Power Out)
• Speeds: 10M/100M/1G/2.5G/5G

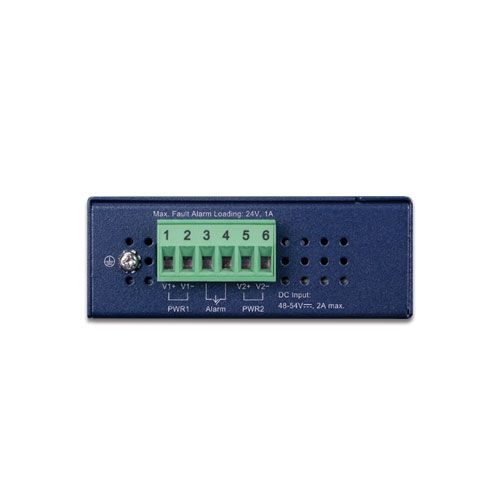

Power Input:

• Redundant 48–54V DC via terminal block

PoE Specifications:

• Standard: IEEE 802.3bt / 802.3at / 802.3af
• Power Output: Max. 60W @ 1m / Max. 51W @ 100m
• PoE Mode: Standard / Legacy / Force
• Pin Assignment: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• PoE Type: End-span + Mid-span (4-pair)

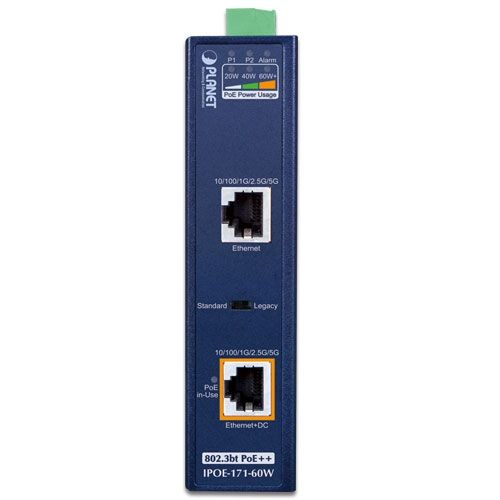

LED Indicators:

• Power 1 & 2 (Green), Alarm (Red)
• PoE-in-Use (Amber), PoE Usage x3 (Amber)

Mechanical:

• Enclosure: IP30-rated metal case
• Dimensions: 135 x 87.8 x 32 mm
• Weight: 406 g
• Mounting: DIN rail or wall-mount

Environmental:

• Operating Temperature: -40 ~ 75°C
• Storage Temperature: -40 ~ 85°C
• Humidity: 5 ~ 90% RH, non-condensing

Accessories:

• User’s manual, wall-mount kit, dust cap

Certifications:

• IEEE 802.3 / 802.3u / 802.3ab / 802.3bz / 802.3bt / 802.3at
• FCC Class A, CE
