PLANET Industrial IEEE 802.3at High Power over Ethernet
|
92,34 EUR |
|
|
( 109,88 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 4 pieces | |
| Lieske Part No.: | 1225921 |
|---|---|
| Mfg Part No: | IPOE-162 |
| UPC/EAN: | 4711213688881 |
| Weight: | 0.58 kg |

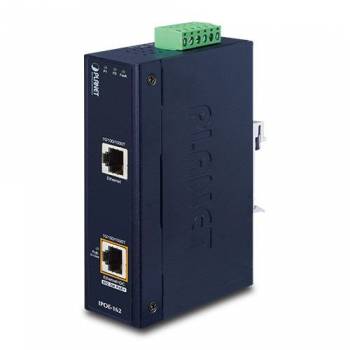

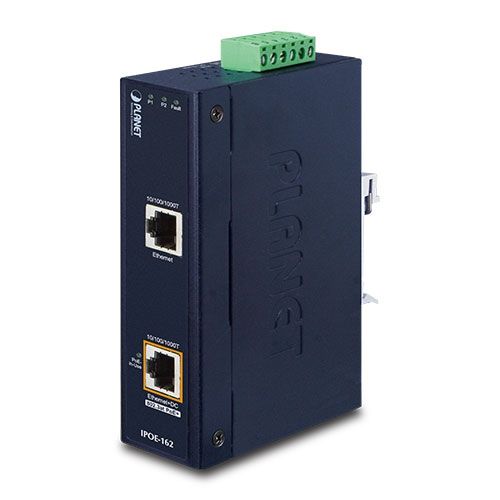

Product information for Planet IPOE-162:
With a wide 12–48V DC input range and built-in power boost to 56V, the IPOE-162 is perfect for transportation, surveillance, and factory environments. It operates stably from -40 to 75°C and supports both DIN-rail and wall-mount installations, ensuring flexibility in harsh environments.
30W PoE+ Output
The injector provides 56V DC via Cat.5/5e/6 cable on pins 4/5 (+) and 7/8 (−), compliant with IEEE 802.3at. It’s compatible with both PoE PDs and PoE Splitters (like IPOE-162S).
Compact & Rugged Design
Housed in an IP30-rated metal casing with 6kV ESD protection and tested for shock, vibration, and drop resistance per IEC standards.
Easy Network Integration

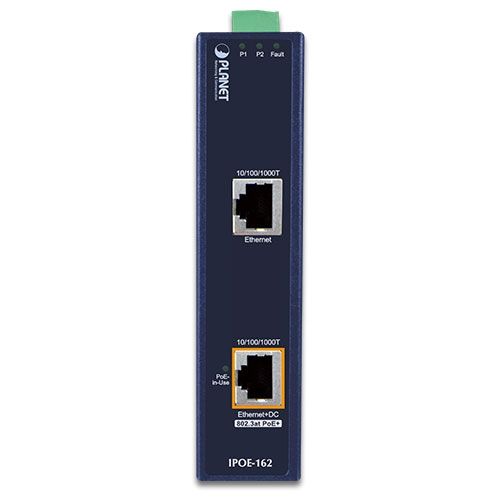

Features two RJ45 ports for data input and PoE output. LED indicators display Power 1, Power 2, Fault, and PoE-in-use for at-a-glance monitoring.
Alarm Relay & Power Redundancy
A built-in alarm relay (3A @ 24V DC) signals power failure. Dual power inputs (12–48V DC) ensure high availability with backup support.
Technical Details:
Network Interfaces:
- 1 x RJ45 STP (Data In)
- 1 x RJ45 STP (Data + Power Out)

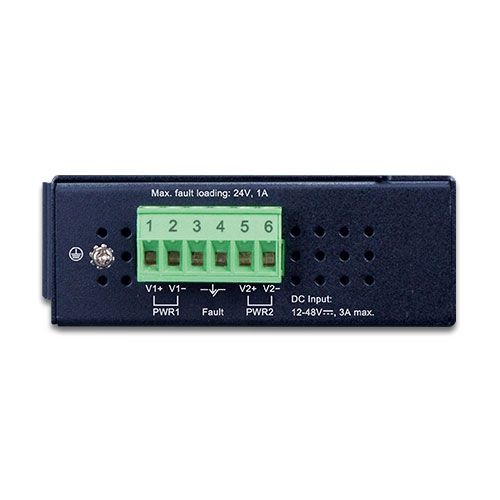

- 1 x Terminal block for 12–48V DC input (redundant)
PoE Features:
- IEEE 802.3af/at compliant (mid-span)
- PoE Output Power: up to 30W
- Power Pin Assignment: 4/5 (+), 7/8 (−)
- Distance: up to 100 meters
LED Indicators:
- Power 1 (Green), Power 2 (Green), Fault (Red)
- PoE-in-use (Orange)
Power:
- Max. Power Consumption: 32W
- Powers 1 device (PD)
Housing & Mounting:
- IP30-rated metal case
- Dimensions: 32 x 87.8 x 135 mm
- Weight: 489 g
- DIN-rail and wall-mount options
Environment:
- Operating Temperature: -40 to 75°C
- Storage Temperature: -40 to 85°C
- Humidity: 5 – 95% (non-condensing)
Certifications & Standards:
- IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at
- FCC Part 15B Class A, CE
- IEC Compliance: Free fall, shock, vibration
