Planet Vertical IP-based 16-port Switched Power Manager IPM-

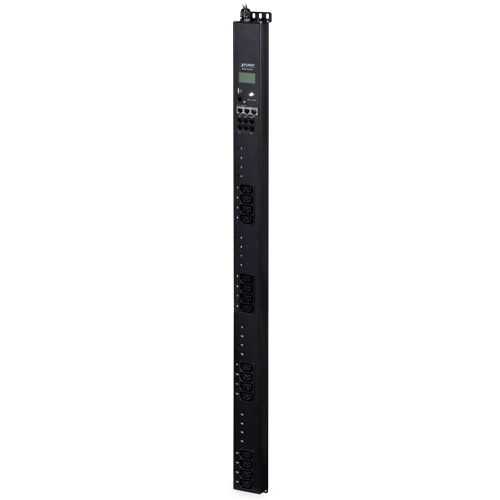

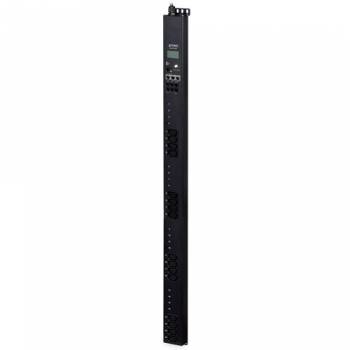

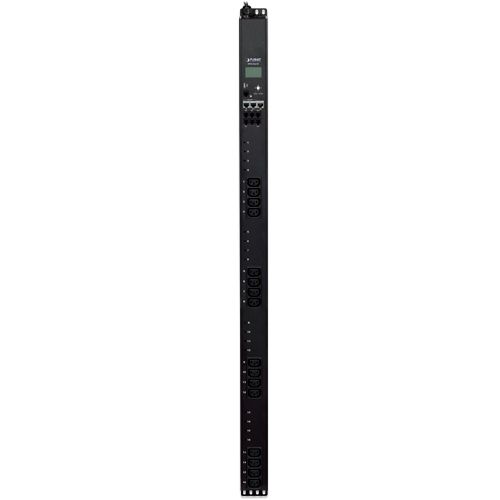

The PLANET IPM-16230 is a vertical, IP-based Power Management Unit offering 16 independently controlled outlets. Designed in a 0U rack-mountable form factor, it combines advanced power distribution, environmental monitoring, and remote access—all while supporting ESG (Environmental, Social, Governance) principles for sustainable operations.

Fully integrable with PLANET's Universal Network Management System (UNI-NMS) and Smart Discovery Utility, the IPM-16230 allows IT teams to remotely monitor power usage, equipment status, and environmental factors—reducing downtime and energy waste while promoting responsible resource use.

Smart Power Control
Each of the 16 IEC320 C13 outlets can be controlled individually via the web interface, SNMP, or LCD panel. Real-time current and voltage data helps ensure safe power delivery to connected devices.

Scheduled Power Management & Overload Protection
The unit supports power schedules and warning alerts for safe shutdown. The built-in 32A circuit breaker protects devices from overload without shutting off the entire unit.

Environmental & Security Monitoring
Included RJ11 environmental sensor port allows tracking of temperature and humidity. Additionally, 3 Digital Inputs (DI) and 2 Digital Outputs (DO) support smoke detection, water intrusion monitoring, and alarm/siren integration for enhanced security.

Cascading & Energy Efficiency
With dual cascade ports, up to 255 units can be interconnected. Energy usage statistics help identify and reduce unnecessary consumption, saving operational costs.

Secure Remote Access
Manage via built-in 10/100Mbps Ethernet using any major browser. Supports HTTPS, SNMP, NTP, and role-based access control with logging and alert functionality.

Technical Details:

Power Outlets:

• 16 x IEC320 C13 (Max. 10A each)

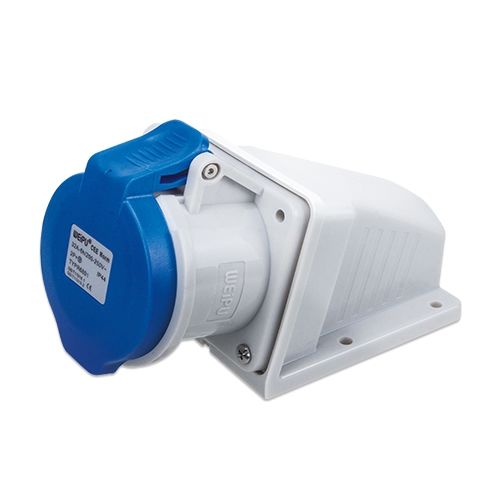

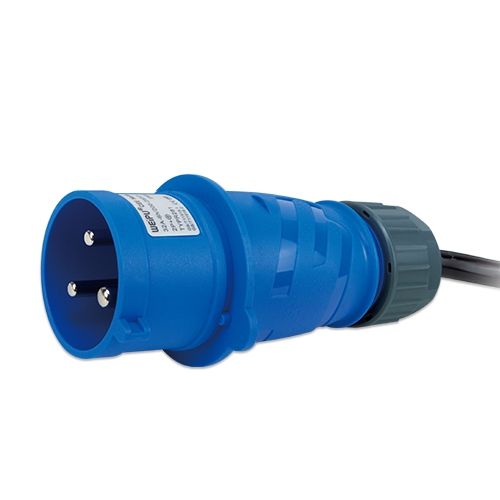

• 1 x IEC60309 inlet (Max. 32A)

Power Distribution:

• Voltage: 100–240V AC
• Frequency: 50–60Hz
• Max Load: up to 7600W
• Circuit Protection: 1 x 32A breaker

Sensor Ports:

• 1 x RJ11 TH Sensor (included)
• 3 x RJ11-type (6P) sensor ports
• 2 x RJ11-type (6P) controller ports
• 1 x RJ11 + 1 x USB (reserved)

Digital I/O:

• 3 x DI (0V / 3.3V)
• 2 x DO (0V / 3.3V)

Management:

• Protocols: TCP/IP, UDP, HTTP/HTTPS (TLS1.2), SNMP, DHCP, NTP
• Web browser, SNMP, PLANET UNI-NMS, Smart Discovery Utility
• Alert via email/pop-up, energy and activity logs
• User roles: Admin, Operator, Visitor
• Zero meter clearing, over-current watchdog, firmware upgrades

Networking:

• 1 x RJ45 10/100BASE-TX
• 2 x RJ45 cascade ports

Display & Housing:

• LCD: current, voltage, energy, environment, network info
• LED indicators per outlet
• Housing: aluminum alloy
• Dimensions: 1126 x 66 x 44.5 mm
• Weight: 3.1 kg

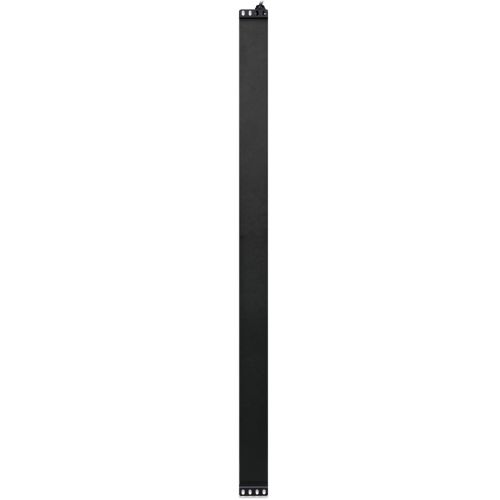

• Installation: 0U rack-mountable

Certifications & Compliance:

• IEEE 802.3, 802.3u
• CE, FCC

Environment:

• Operating Temp: 0–60 °C
• Humidity: 0–90 % (non-condensing)
