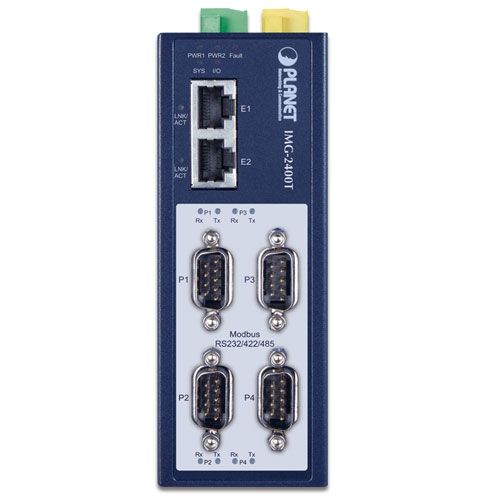

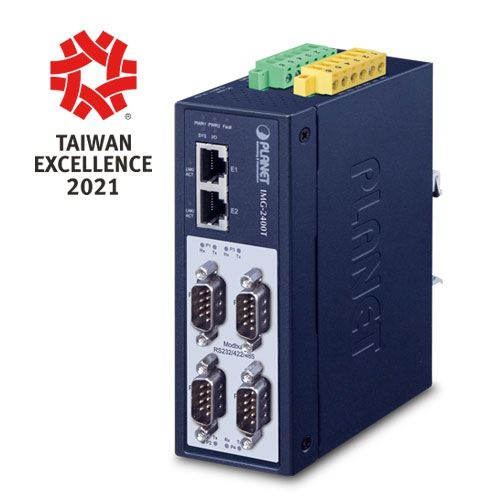

PLANET Industrial 4-port RS232/422/485 Modbus Gateway
|
396,79 EUR |
|
|
( 472,18 EUR incl. VAT ) ≈ £342.03 | ≈ $449.96 plus delivery charges: 53,00 € |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 272446 |
|---|---|
| Mfg Part No: | IMG-2400T |
| UPC/EAN: | 4711605285155 |
| Weight: | 0.12 kg |
Product information for Planet IMG-2400T:
The PLANET IMG-2400T is a robust industrial Modbus gateway featuring four DB9 serial ports and dual Ethernet interfaces for seamless bridging between Modbus RTU/ASCII and Modbus TCP/IP environments. Designed for industrial automation, SCADA, HMI, and IoT applications, it enables legacy serial devices to operate within modern IP infrastructures.
Equipped with rugged IP40-rated housing, dual 12–48V DC redundant power, and operating in extreme temperatures from -40 to 75 °C, the IMG-2400T is ideal for critical deployments. With digital input/output alarms, remote web/telnet/SNMP management, and up to 32 TCP connections per mode, it offers excellent flexibility, reliability, and visibility for industrial networks.
Key Features:
- Converts Modbus TCP/IP ↔ Modbus RTU/ASCII
- 4 DB9 serial ports: RS232, RS422, 2-/4-wire RS485
- 2 x 10/100BASE-TX Ethernet ports with Auto MDI/MDI-X
- Digital I/O for external alarms (e.g., power fail, intrusion)
- Rugged IP40 metal housing, -40 to 75 °C operating range
- Up to 32 TCP slave or master connections per mode
- DIN-rail and wall-mountable for flexible installation
Technical Specifications (English):
Serial Interface:
- 4 x DB9 male (RS232, RS422, 2-/4-wire RS485)
- Baud Rate: 50bps – 921600bps
- Data Bits: 5, 6, 7, 8 / Parity: Odd, Even, None, Space, Mark / Stop Bits: 1, 1.5, 2
- Flow Control: RTS/CTS, XON/XOFF
- Protection: 15KV ESD, 2KV surge, 2KV isolation
Ethernet Interface:
- 2 x 10/100BASE-TX RJ45, Auto-MDI/MDI-X
- Distance: up to 100m / Architecture: Store-and-Forward / MAC Table: 1K
Digital I/O:
- 2 Digital Inputs: -24V to 24V DC, max. 10mA
- 2 Digital Outputs: Open collector, 24V DC, 100mA max.
- 1 Relay Output: Power failure alarm (1A @ 24V DC)
Management & Protocols:
- Protocols: Modbus TCP, Modbus RTU, Modbus ASCII
- Operation Modes: RTU/ASCII Master and Slave (up to 32 TCP connections each)
- Management Interfaces: Web GUI, Telnet, SNMPv1/v2c, VCOM, Smart Discovery
- IPv4 & IPv6, DHCP, DNS, NTP, Syslog, alarm logging
Hardware & Power:
- Enclosure: IP40 metal, Dimensions: 50 x 87.8 x 135 mm, Weight: 625g
- Power Input: 12–48V DC (dual, reverse polarity protected)
- Power Consumption: Max. 6.5W
- Reset Button: <5s = reboot / >5s = factory reset
Environmental:
- Operating Temp: -40 ~ 75 °C
- Humidity: 5 ~ 95% (non-condensing)
Package Contents:
- 1x IMG-2400T Gateway
- 1x DIN-Rail Mount Kit
- 1x Quick Installation Guide
