PLANET High Definition HDMI Extender Transmitter over IP
|
207,66 EUR |
|
|
( 247,12 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1226020 |
|---|---|
| Mfg Part No: | IHD-210PT |
| UPC/EAN: | 4711605282505 |
| Weight: | 0.39 kg |
Product information for Planet IHD-210PT:

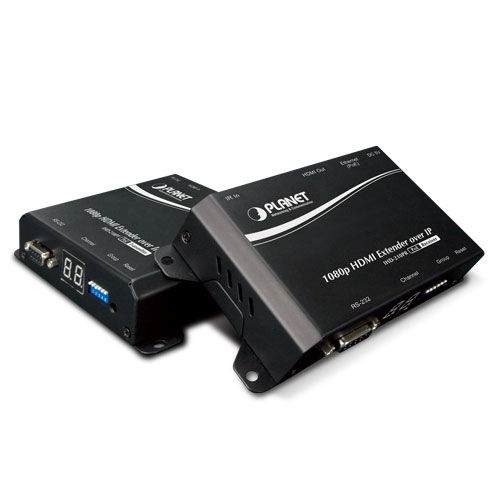

The PLANET IHD-210 HDMI Extender over IP with PoE is designed for effortless and scalable Full HD video distribution across any IP network. The pair – IHD-210PT (transmitter) and IHD-210PR (receiver) – streams 1080p HDMI content to unlimited remote displays with excellent clarity and performance.
This system supports one-to-one, one-to-many, or full multicast configurations. Integrated PoE+ simplifies cabling by eliminating separate power needs. With IGMP snooping, EDID auto-copy, and 64 DIP-switch selectable channels, the IHD-210 ensures low-latency, high-quality video across multiple screens, ideal for public displays, expos, education, and control rooms.
Key Features:
- HDMI over IP with Full HD 1080p resolution
- PoE+ support: no additional power adapters needed
- IR extension and RS232 for source control at endpoints
- HDMI local loop-out for source preview at transmitter
- EDID auto-copy for accurate screen compatibility
- 64 DIP switch-configurable channels for multicast groups
- HDCP and Blu-ray support for secure, high-quality content delivery
Technical Specifications (English):
Video In/Out Interfaces:
- HDMI A Type (1x In, 1x Out)
- Supported Resolutions: 1080p/1080i/720p/480p/480i @ 60/50/30/25 Hz
- Compression: H.264 (video), MPEG-1 Layer II (audio)
- Audio: 2-channel uncompressed audio
- HDMI Standard: HDMI 1.4a, HDCP compliant
Connectivity:
- Network: 1x RJ45 (10/100BASE-TX with PoE+)
- RS232: 1x DB-9 female port
- IR: 1x 3.5mm jack (IR emitter cable)
- Channel Switching: 64-group DIP switch
- LED Display: Numeric channel/group ID indicator
Management & Scalability:
- Control via PC search tool over IP
- Supports up to 64 multicast groups
- Requires IGMP snooping on managed switch
- Automatic EDID copy for display compatibility
Power & Environment:
- Power: IEEE 802.3af/at PoE+ or 5V DC, 2A
- Power Consumption: 7W per unit
- Dimensions: 130 x 82 x 30.25 mm
- Weight: 290 g
- Operating Temp: 0–55 °C
- Storage Temp: -10–60 °C
- Humidity: 5–90% non-condensing
Accessories Included:
- 1x HDMI Extender unit
- 1x IR emitter cable
- 1x Quick Installation Guide
Questions & answers
What is the delivery time of PLANET High Definition HDMI Extender Transmitter over IP?
The article PLANET High Definition HDMI Extender Transmitter over IP is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 16 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Planet IHD-210PT to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you PLANET High Definition HDMI Extender Transmitter over IP always at the best possible price. We can give you a discount of 2% on PLANET High Definition HDMI Extender Transmitter over IP if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
