PLANET Industrial Media Converter IGUP-805AT PoE++
|
220,91 EUR |
|
|
( 262,88 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1640368 |
|---|---|
| Mfg Part No: | IGUP-805AT |
| UPC/EAN: | 4711605284486 |
| Weight: | 0.57 kg |

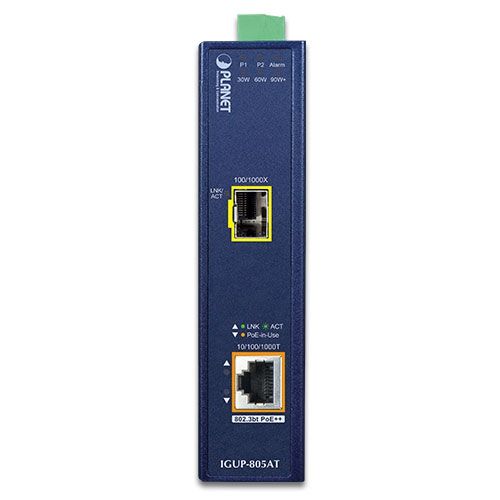

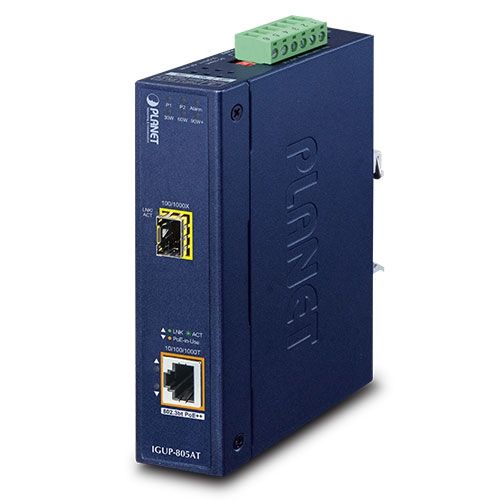

Product information for Planet IGUP-805AT:
The PLANET IGUP-805AT is a rugged industrial-grade media converter combining 1000BASE-X fiber connectivity with a high-power IEEE 802.3bt PoE++ RJ45 port. It delivers up to 95 watts of power to remote PDs such as PTZ IP cameras, wireless access points, or touchscreen VoIP phones, while providing Gigabit-speed data transmission over long distances via fiber. The unit is ideal for harsh environments, featuring an IP30 metal enclosure, extended operating temperature range (-40 to +75 °C), and dual 12–54V DC input with built-in 54V boost.
The integrated LFPP (Link Fault Passthrough PoE Control) function enhances reliability by cutting PoE power when a fiber link fails, helping administrators respond quickly to connectivity issues.
Technical Specifications (English):
Network Interfaces:
- 1x 10/100/1000BASE-T RJ45 with IEEE 802.3bt PoE++ (up to 95W)
- 1x SFP port (100BASE-FX / 1000BASE-X, dual mode)
PoE Power Output:
- IEEE 802.3bt Type 4 compliant (PoE++)
- Legacy and standard (BT) mode supported
- Output: 95W max
- Power Type: End-span + Mid-span
- Pin Assignment: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- Power Budget:
- 95W @ 24–54V DC
- 60W @ 12–23V DC
Switching & Layer 2 Features:
- Switching Capacity: 2Gbps
- Store-and-Forward mode
- MAC Table: 2K entries
- Jumbo Frame: 9K bytes
- Flow Control: IEEE 802.3x (full-duplex), Backpressure (half-duplex)
Power Supply:
- Input Voltage: 12–54V DC, redundant
- Reverse polarity protected
- Power Consumption:
- Idle: 3.6W (12V), 4.4W (54V)
- Full Load: 70W (12V), 101.3W (54V)
Housing & Dimensions:
- IP30 metal case
- Size: 32 x 87.8 x 135 mm
- Weight: 447g
- DIN-rail or wall-mount installation
- ESD Protection: ±6KV DC
LED Indicators:
- System: Power 1/2 (Green), Alarm (Red), PoE Usage (Amber)
- Copper: LNK/ACT (Green), PoE-in-use (Amber)
- SFP: LNK/ACT (Green or Amber)

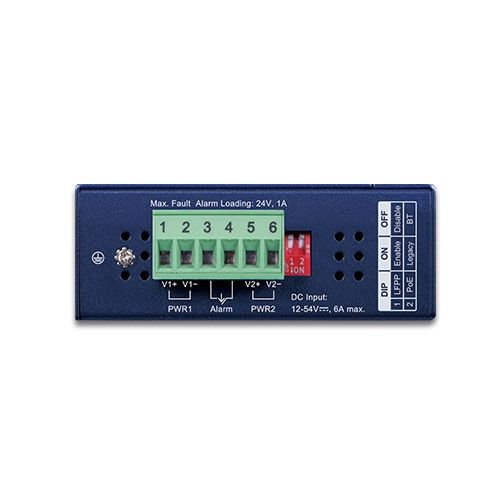

DIP Switches:
- DIP 1: LFPP (enable/disable)
- DIP 2: PoE Mode: Legacy / BT
Compliance & Standards:
- IEEE 802.3 / .3u / .3ab / .3z / .3x / .3af / .3at / .3bt / .3az
- FCC Part 15 Class A, CE
- Ruggedness: IEC60068 (drop, vibration, shock)
Environmental:
- Operating Temp: -40 to +75 °C
- Storage Temp: -40 to +85 °C
- Humidity: 5–90% non-condensing
Questions & answers
What is the delivery time of PLANET Industrial Media Converter IGUP-805AT PoE++?
The article PLANET Industrial Media Converter IGUP-805AT PoE++ is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 16 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Planet IGUP-805AT to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you PLANET Industrial Media Converter IGUP-805AT PoE++ always at the best possible price. We can give you a discount of 2% on PLANET Industrial Media Converter IGUP-805AT PoE++ if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
