PLANET Industrial Media Converter IGUP-2205AT PoE++

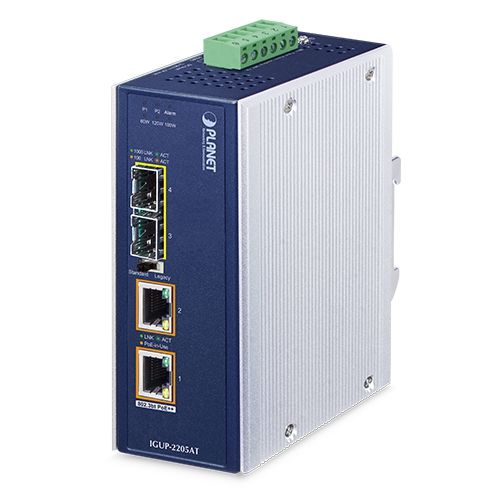

PLANET IGUP-2205AT – High-Power Dual-Port Industrial Gigabit PoE++ Media Converter with Fiber Extension

The PLANET IGUP-2205AT is a robust industrial media converter that integrates two 10/100/1000BASE-T PoE++ ports and two 100/1000BASE-X SFP slots, delivering up to 190 watts of total PoE output. Designed to operate in extreme environments (-40 to +75 °C), it is ideal for powering high-performance devices such as PTZ cameras, wireless access points, and industrial VoIP phones where reliable long-range fiber communication and high power are essential.

Its dual DC input (12~56V) with built-in 54V booster ensures global deployment flexibility without needing special power supplies. Plug-and-play support with Legacy PoE compatibility allows seamless integration of both 802.3af/at/bt powered devices.

Technical Specifications (English):

Network Ports:

• 2x 10/100/1000BASE-T RJ45 with IEEE 802.3bt PoE++ injector
• 2x 100/1000BASE-X SFP slots (multimode/singlemode)

PoE Output:

• Standards: IEEE 802.3af/at/bt (Type 4)
• Output per Port: up to 95W (Legacy), 90W (Standard)
• Total Budget: 190W @ 24–56V DC input
• Power Type: End-span + Mid-span
• Pin Assignment: 1/2, 3/6 and 4/5, 7/8

Switching Features:

• Auto-negotiation for 10/100/1000Mbps
• Store-and-Forward architecture
• Flow Control: IEEE 802.3x (full duplex), Backpressure (half duplex)
• Jumbo Frames: 9K max

Power Supply:

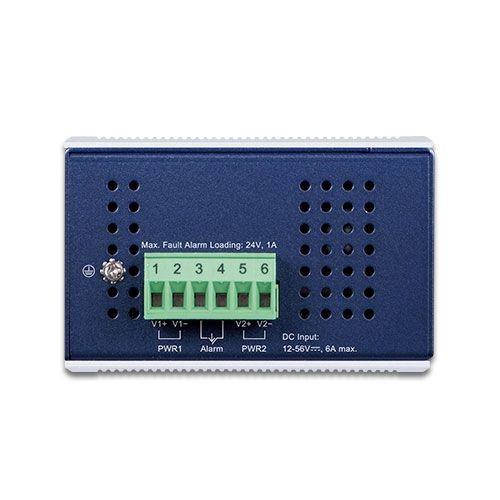

• Input: 12~56V DC dual input (reverse polarity protected)
• Power Consumption:
• Idle: 4.56W (12V), 5.28W (48V)
• Full Load: 67.44W (12V), 205W (48V)

Mechanical Design:

• Rugged IP30-rated metal housing
• Dimensions: 56 x 87.8 x 135 mm
• Weight: 630g
• DIN-rail and wall-mount installation
• ESD Protection: 6KV DC

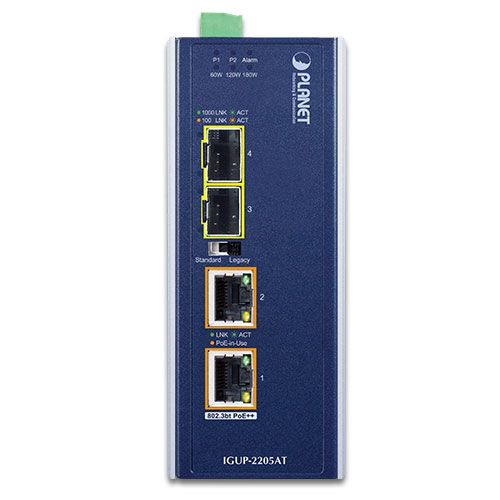

LED Indicators:

• System: Power 1/2 (Green), Alarm (Red), PoE Usage (Amber)
• Copper Ports: LNK/ACT (Green), PoE In Use (Amber)
• Fiber Ports: 100FX (Amber), 1000X (Green)

Cabling & Distance:

• RJ45: Cat. 3–6 UTP/STP up to 100m
• Fiber: Up to 120km (depending on SFP module)

Certifications & Standards:

• IEEE 802.3 / .3u / .3ab / .3z / .3x / .3af / .3at / .3bt / .3az
• FCC Part 15 Class A, CE
• Stability: IEC60068-2-32 (drop), -2-27 (shock), -2-6 (vibration)

Environmental Conditions:

• Operating Temp: -40 to +75 °C
• Storage Temp: -40 to +85 °C
• Humidity: 5–90% non-condensing
