PLANET Industrial Media Converter IGUP-1205AT PoE++

PLANET IGUP-1205AT – Industrial Gigabit Media Converter with PoE++ (95W) and Long-Distance Fiber Extension

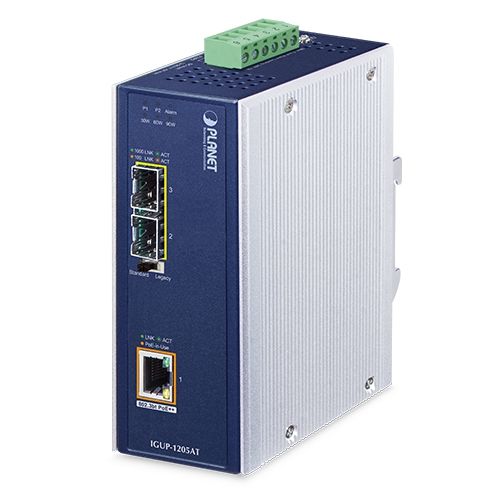

The PLANET IGUP-1205AT is an advanced industrial-grade media converter that combines 100/1000BASE-X fiber-to-copper media conversion with IEEE 802.3bt Power over Ethernet Plus Plus (PoE++) injection, delivering up to 95 watts of power to high-demand PDs. Designed to operate in harsh environments, it features a compact IP30 metal enclosure, dual redundant 12~56V DC inputs, and extreme temperature resilience (-40 to 75 °C).

Key Features:

• 95W PoE++ injector (IEEE 802.3bt Type 4)
• Dual SFP slots for flexible fiber uplinks up to 120km
• Integrated 54V power booster for 12–56V DC input
• Plug and Play with backward compatibility (IEEE 802.3af/at)
• Ideal for PTZ cameras, high-power APs, VoIP phones, and more
• Compact, fanless design with DIN-rail/wall mounting

Technical Specifications (English):

Interfaces:

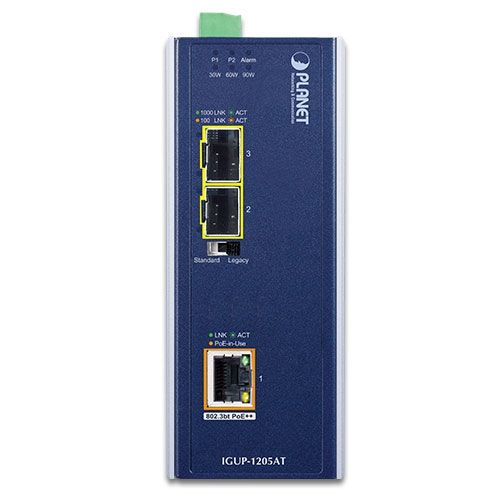

• 1x 10/100/1000BASE-T RJ45 with IEEE 802.3bt PoE++ PSE
• 2x SFP slots supporting 100BASE-FX/1000BASE-X (auto-detect)

PoE Output:

• Standards: IEEE 802.3af/at/bt (Type 4)
• Output: Up to 95W in Legacy Mode / 90W in Standard Mode
• Power Pins: End-span (1/2, 3/6) + Mid-span (4/5, 7/8)
• Power Budget:
• 30W @ 12V DC input
• 95W @ 24–56V DC input

Switching Performance:

• Auto-negotiation for 10/100/1000Mbps
• Store-and-Forward architecture
• Flow Control: IEEE 802.3x pause (full-duplex), Backpressure (half-duplex)
• Jumbo Frame Support: up to 9K

Power Supply:

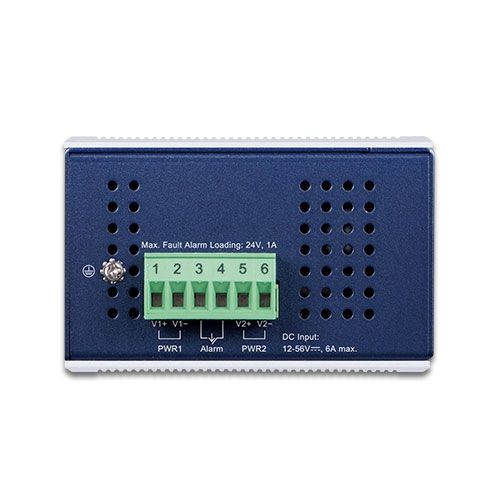

• Input: 12~56V DC dual input (reverse polarity protected)
• Power Consumption:
• Idle: 4.56W (12V), 5.28W (48V)
• Full Load: 46.6W (12V), 100.3W (48V)

Housing & Installation:

• IP30-rated metal case
• Dimensions: 56 x 87.8 x 135 mm
• Weight: 612g
• Mounting: DIN-rail and wall-mount supported
• ESD Protection: 6KV DC

LED Indicators:

• System: Power 1/2 (Green), Alarm (Red), PoE Usage (Amber)
• Copper Port: LNK/ACT (Green), PoE-in-use (Amber)
• Fiber Ports: 100BASE-X (Amber), 1000BASE-X (Green)

Cabling & Distance:

• RJ45: Cat. 3–6 UTP/STP up to 100m
• SFP: Up to 120km depending on module (multimode/singlemode)

Standards Compliance:

• IEEE 802.3 / 802.3u / 802.3ab / 802.3z / 802.3x / 802.3af / 802.3at / 802.3bt / 802.3az
• Regulatory: FCC Part 15 Class A, CE
• Ruggedness: IEC60068 (shock, vibration, drop)

Environmental:

• Operating Temp: -40 to +75 °C
• Storage Temp: -40 to +85 °C
• Humidity: 5–90% (non-condensing)
