PLANET Industrial Media Converter IGTP-815AT 802.3at PoE+
|
132,63 EUR |
|
|
( 157,83 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 1 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Lieske Part No.: | 1640373 |
|---|---|
| Mfg Part No: | IGTP-815AT |
| UPC/EAN: | 4711605284288 |
| Weight: | 0.36 kg |
Product information for Planet IGTP-815AT:

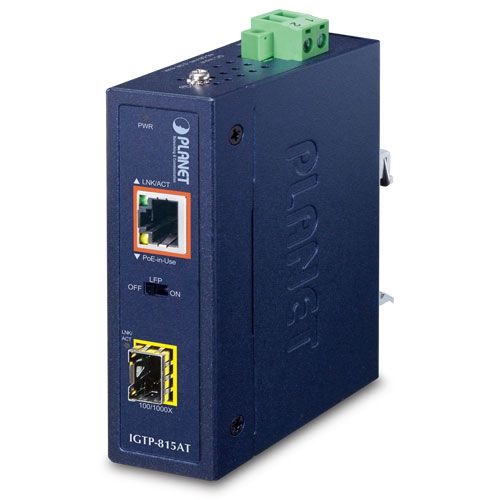

The PLANET IGTP-815AT is a compact, rugged industrial-grade media converter featuring one PoE+ enabled RJ45 port and one SFP slot supporting 100/1000BASE-X. Designed for harsh environments, it operates in a wide temperature range from -40 to 75 °C and is ideal for IIoT applications, outdoor deployments, and tight installations.
Compliant with IEEE 802.3at, the device delivers up to 36 watts of power via PoE+ and supports fiber extensions up to 120 km depending on the SFP module. With DIP switch-controlled Link Fault Passthrough (LLCF/LLR) and robust electrical protection (±6KV ESD), the IGTP-815AT ensures stable performance in demanding industrial networks.
Technical Specifications (English):
Network Interfaces:

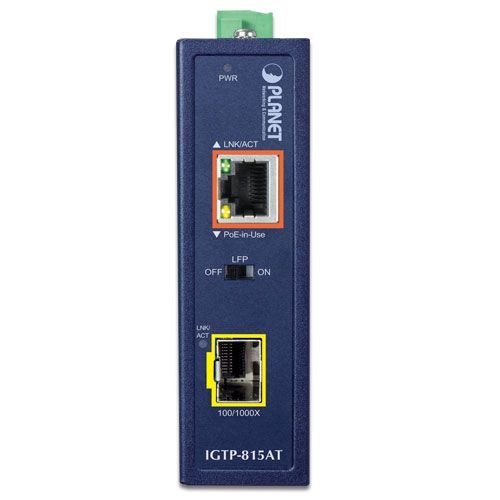

- 1x 10/100/1000BASE-T RJ45 with PoE+ injector (IEEE 802.3af/at)
- 1x SFP slot (100BASE-FX/1000BASE-X dual mode)
Power over Ethernet:
- Complies with IEEE 802.3af/at PoE Plus (end-span)
- Max Output: 36W
- PoE Budget: 36W @ 48–56V DC
- Power Pins: 1/2 (+), 3/6 (−)
- PD auto detection, PoE splitter compatible
Switching Features:
- Auto-negotiation for 10/100/1000Mbps
- Half/Full duplex
- Flow Control: IEEE 802.3x (full), Backpressure (half)
- Max Frame Size: 9K
Diagnostics & Protection:
- DIP Switch: Enables LFP (LLCF/LLR) and FEF
- ESD Protection: ±6KV (Ethernet)
- IEC60068 compliant for shock, vibration, free fall
Power Supply:

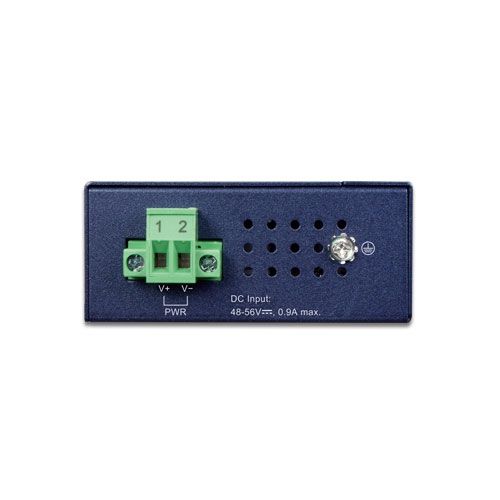

- DC Input: 48–56V, reverse polarity protected
- Power Consumption:
- Idle: 0.96–1.12W
- Full Load with PoE: Up to 42W
Physical Design:
- IP30-rated metal enclosure
- Dimensions: 30 x 70 x 104 mm
- Weight: 231 g
- Mounting: DIN-rail or wall-mountable
Cabling:
- RJ45: Cat. 3/4/5/5e/6 up to 100m
- Fiber: Multimode (up to 2km), Singlemode (up to 120km depending on SFP)
Environmental Tolerance:
- Operating Temp: -40 to +75 °C
- Storage Temp: -40 to +85 °C
- Humidity: 5–95% (non-condensing)
Certifications:
- FCC Part 15 Class A, CE
- Complies with IEEE 802.3/3u/3ab/3z/3x/3af/3at/3az
