PLANET Industrial Media Converter IGTP-802T PoE+ 550m
|
150,87 EUR |
|
|
( 179,54 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 11 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Lieske Part No.: | 1640353 |
|---|---|
| Mfg Part No: | IGTP-802T |
| UPC/EAN: | 4711213686955 |
| Weight: | 0.64 kg |
Product information for Planet IGTP-802T:
The PLANET IFT-80xT Series provides industrial-grade media conversion from 10/100Base-TX to 100Base-FX, enabling secure and stable Ethernet extension over fiber optics. Designed for harsh environments, the IFT-80xT converters feature high immunity to EMI, EFT, and surges, operating reliably from -40 to +75 °C in compact, IP30-rated metal enclosures.

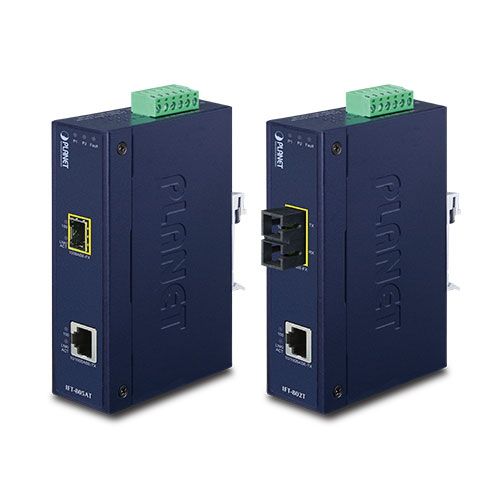

This series includes three models:

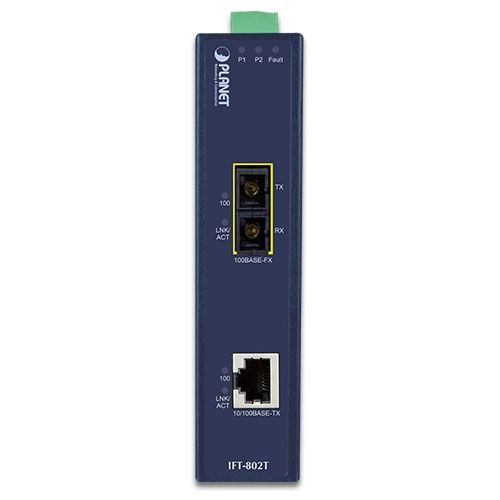

- IFT-802T: Multimode fiber (up to 2km)

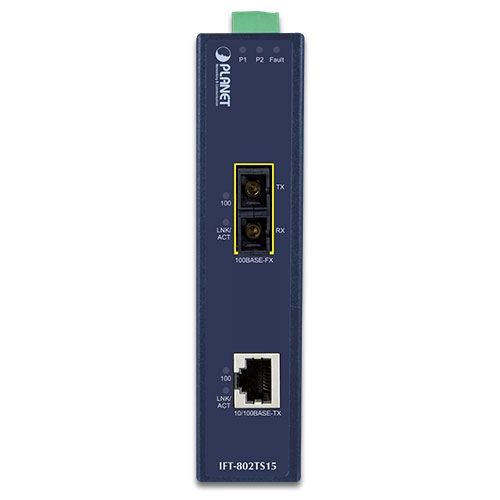

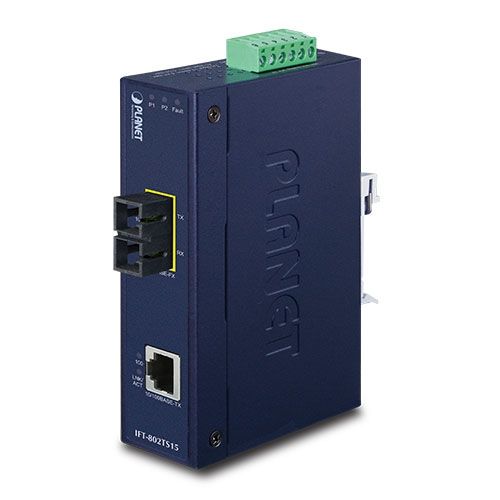

- IFT-802TS15: Single-mode fiber (up to 15km)
- IFT-805AT: SFP slot for up to 120km (depending on module)
Ideal for industrial automation, transportation cabinets, ISPs, or FTTx deployments, the IFT-80xT series ensures consistent high-performance data communication in mission-critical applications.
Technical Specifications (English):
Interfaces:
- 1x 10/100Base-T RJ45 with Auto MDI/MDI-X
- 1x 100Base-FX SC port (IFT-802T/802TS15)
- 1x SFP slot (IFT-805AT)
Fiber Performance:
- Distance:
- IFT-802T: 2km (Multimode), 1310nm
- IFT-802TS15: 15km (Singlemode), 1310nm
- IFT-805AT: Up to 120km (based on SFP)
- Launch Power:
- IFT-802T: Max -14, Min -20 dBm
- IFT-802TS15: Max 0, Min -20 dBm
- Receive Sensitivity: -32 dBm
Housing & Protection:
- IP30 slim metal enclosure
- Dimensions: 32 x 87.8 x 135 mm
- Weight: 430g
- ESD/EFT Protection: 6KV (Ethernet & Power)
- Mounting: DIN-rail and wall-mount

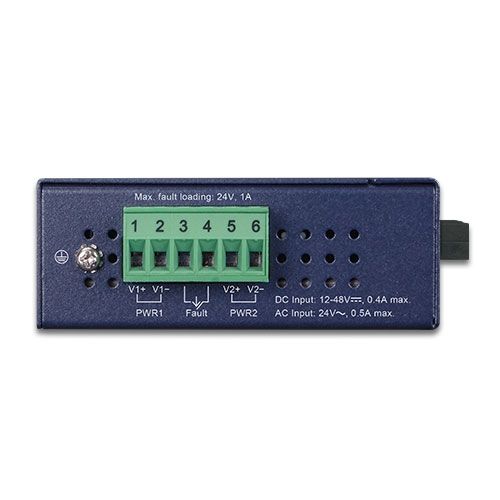

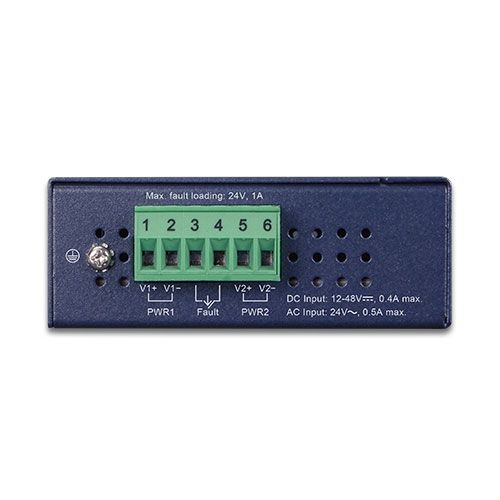

Power:
- Dual 12–48V DC input (reverse polarity protected)
- AC 24V power adapter supported
- Power Consumption: Max 3W / 10 BTU
Environmental Tolerance:
- Operating Temp: -40 to +75 °C
- Humidity: 5–95% (non-condensing)
Switching Features:
- Standards: IEEE 802.3, 802.3u, 802.3x
- Switching Method: Store-and-Forward
- Flow Control: IEEE 802.3x (full-duplex), Backpressure (half-duplex)
- Jumbo Frame: Up to 1522 Bytes
- Auto-negotiation and auto MDI/MDI-X
- MAC Address Table: Auto-learn/aging
LED Indicators:
- System: Power 1, Power 2, Fault (Green)
- RJ45 Port: 10/100 Mbps, LNK/ACT (Green)
- Fiber Port: 100 Mbps, LNK/ACT (Green)
Certifications & Standards:
- Compliance: FCC Class A, CE Class A, UL (IFT-805AT)
- Ruggedness: IEC60068 (shock, vibration, free fall)
Use Cases:
- Industrial transport cabinets, factory automation
- Fiber deployment in ISP, FTTH, FTTC, or FTTB environments
