PLANET IGT-900-2T2S – Fully-Managed Industrial Gigabit Media Converter for Critical Environments

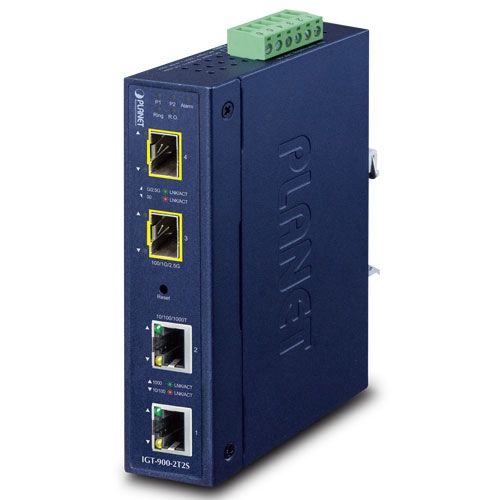

The PLANET IGT-900-2T2S is a rugged, fully-managed industrial media converter equipped with two 10/100/1000BASE-T RJ45 ports and two 100/1000/2500BASE-X SFP slots. Built for extreme operating conditions (-40 to 75 °C), its compact IP30 metal housing and dual redundant power input ensure maximum uptime and deployment flexibility.

It supports full Layer 2+ functionality and Layer 3 static routing, IPv6 management, ERPS for <10ms failover, port backup, comprehensive ACL-based security, and industrial protocols like IEEE 1588v2 (PTP) and Modbus TCP. This makes the IGT-900-2T2S ideal for automation, SCADA, transportation, and mission-critical infrastructure.

Technical Specifications (English):

Network Interfaces:

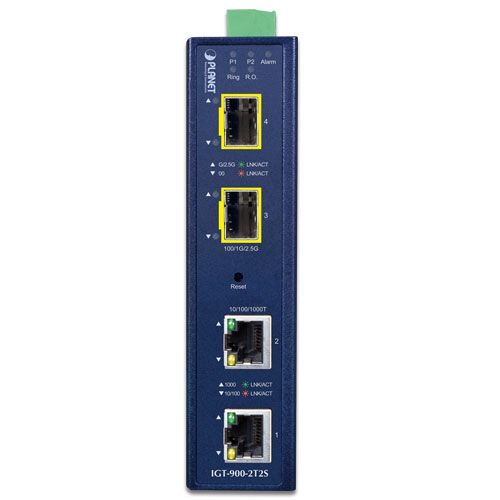

• 2x 10/100/1000BASE-T RJ45 with Auto MDI/MDI-X
• 2x 100/1000/2500BASE-X SFP ports (auto detection)

Layer 3 Routing:

• Up to 32 static routes (IPv4/IPv6)
• VLAN-based routing with up to 8 interfaces

Switching Performance:

• Architecture: Store-and-Forward
• Fabric: 14 Gbps
• Throughput: 10.42 Mpps @ 64 bytes
• MAC Table: 4K dynamic entries
• Jumbo Frames: 9KBytes

Redundancy:

• Port Backup (2 groups)
• ERPS Ring Support (ITU-T G.8032), recovery < 10ms

Security:

• IEEE 802.1X (port/MAC-based), RADIUS/TACACS+ support
• IP/MAC-based ACLs (256 entries)
• IP Source Guard, DHCP Snooping, Dynamic ARP Inspection
• Private VLAN, port isolation

Layer 2 Features:

• VLAN: 802.1Q, Q-in-Q, MAC/IP/Protocol/Subnet-based, Voice VLAN, PVE
• STP, RSTP, MSTP, BPDU filtering/guard
• Link Aggregation: 2 groups (2 ports each)
• IGMPv1/v2/v3, MLDv1/v2 snooping, MVR, GVRP
• Loop Protection, LLDP, 802.3ah OAM, Cisco UDLD compatible

QoS:

• 8 queues, port/DSCP/802.1p/IP precedence
• WRR and Strict Priority, bandwidth shaping (ingress/egress)
• Traffic policing and DSCP remarking

Management:

• Interfaces: Web GUI, Telnet, SSH, SNMP v1/v2c/v3
• Dual Stack IPv4/IPv6, TFTP, DHCP server/relay, NTP
• PLANET Smart Discovery, CloudViewer, NMS
• Logging: Syslog, SMTP, local log
• Diagnostics: SFP-DDM, cable testing, port status

Industrial Protocols:

• IEEE 1588v2 PTP (Transparent Clock)
• Modbus TCP for SCADA/HMI integration

Physical Design:

• Metal IP30 housing
• Dimensions: 32 x 87.8 x 135 mm
• Weight: 390g
• DIN-rail or wall-mount
• 6KV ESD protection
• Alarm relay: 1A @ 24V DC (power failure)

Power Requirements:

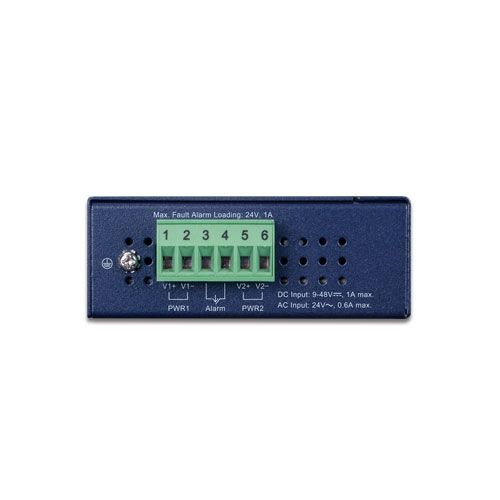

• Dual 9~48V DC or 24V AC input
• Max. Power: 6.5W (DC), 10W (AC)

Compliance:

• FCC Part 15 Class A, CE
• IEC60068 shock, vibration, free-fall certified

Environmental Conditions:

• Operating Temp: -40 to +75 °C
• Storage Temp: -40 to +85 °C
• Humidity: 5–95% non-condensing
