PLANET IP30 10/100/1000T to 100/1000X SFP Gbit Converter
|
86,70 EUR |
|
|
( 103,17 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Lieske Part No.: | 676095 |
|---|---|
| Mfg Part No: | IGT-805AT |
| Weight: | 0.6 kg |
Product information for Planet IGT-805AT:

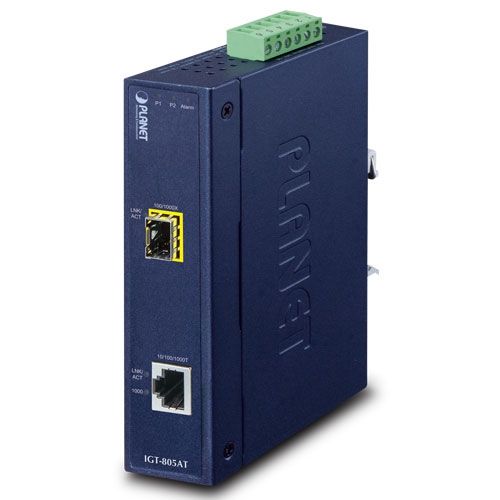

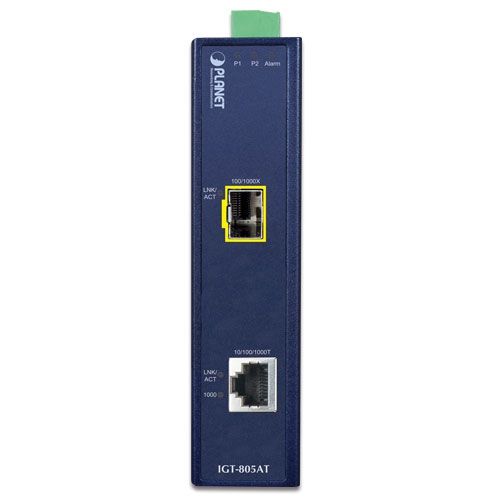

The PLANET IGT-805AT is an industrial-grade Gigabit media converter designed for reliable network extension in demanding environments. Featuring one 10/100/1000BASE-T RJ45 port and one 100/1000BASE-X SFP slot, it supports full wire-speed forwarding, 9K jumbo frames, and intelligent fault detection with LFP (Link Fault Pass-through) functionality including LLCF and LLR.
Encased in a compact IP30 metal housing with redundant power inputs (12–48V DC or 24V AC), the IGT-805AT ensures stable operation from -40 to +75 °C, making it ideal for transport systems, outdoor cabinets, and industrial control environments.
**Technical Specifications (English):**
**Network Interfaces:**
- 1x 10/100/1000BASE-T RJ45 with auto MDI/MDI-X
- 1x SFP port (auto-detect) for 100/1000BASE-X modules
**Performance:**
- Switching Fabric: 4 Gbps
- Throughput: 2.97 Mpps @ 64 Bytes
- Jumbo Frame: 9216 Bytes
- Store-and-Forward forwarding mode
**Functions:**
- LFP (LLCF + LLR) for smart link failure alerts
- Duplex Modes: 10/100Mbps (Half/Full), 1000Mbps (Full)
- Flow Control: IEEE 802.3x / Backpressure
- Automatic MAC address learning and aging

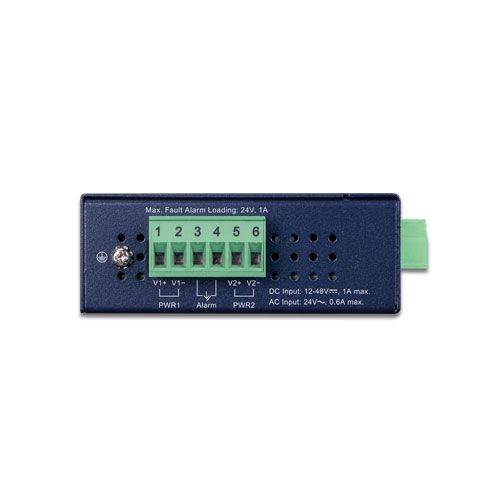

**Power Supply:**
- DC 12–48V (redundant, reverse polarity protected)
- AC 24V power adapter supported
- Max. Power Consumption: 2.6W / 8.8 BTU
- Power Failure Relay: 1A @ 24V DC
**Physical & Installation:**
- IP30 rated slim metal case
- Dimensions: 32 x 87.8 x 135 mm
- Weight: 395g
- DIN rail or wall-mount installation
**Environment:**
- Operating Temp: -40 to +75 °C
- Humidity: 5–95% (non-condensing)
- ESD Protection: 6KV
- Certified for vibration, shock, and free fall (IEC 60068)
**Fiber Compatibility & Cabling:**
- Multimode Fiber: Up to 550m (1G), 2km (100M)
- Singlemode Fiber: Up to 120km (1G), 60km (100M)
- Supports 100BASE-FX and 1000BASE-SX/LX/BX SFPs
**Standards Compliance:**
- IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x
- FCC Part 15 Class A, CE certified
