PLANET IP30 2x GE to 2-Port SFP Media Converter IGT-2205AT
|
162,04 EUR |
|
|
( 192,83 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 1 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Lieske Part No.: | 1196997 |
|---|---|
| Mfg Part No: | IGT-2205AT |
| Weight: | 0.55 kg |
Product information for Planet IGT-2205AT:

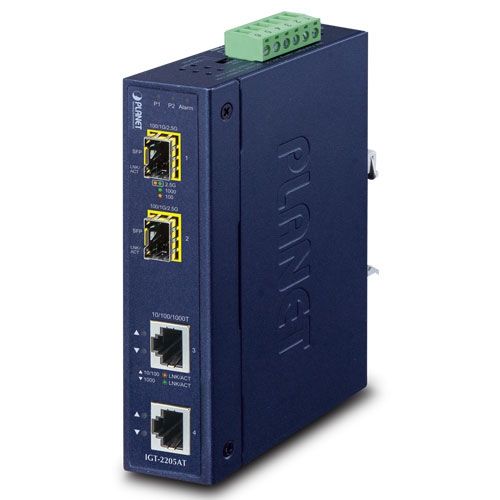

The PLANET IGT-2205AT is an industrial-grade Gigabit media converter featuring two RJ45 and two SFP ports in a compact IP30 metal chassis. It supports either 4-port Ethernet switch mode or 2-port fiber redundancy mode, ideal for ensuring continuous data flow in mission-critical environments. With its wide operating temperature range of -40 to +75 °C, and support for redundant AC/DC power inputs, the device is perfect for challenging industrial deployments.
The device is compatible with 100/1000/2500BASE-X SFP modules and includes ESD protection and robust mounting options, making it suitable for cabinets, outdoor boxes, and tight enclosures in industrial automation or transportation systems.
Technical Specifications (English):
Network Ports:
- 2x 10/100/1000BASE-T RJ45 with auto MDI/MDI-X
- 2x 100/1000/2500BASE-X SFP slots with auto detection
Operating Modes:
- DIP switch controlled
- Switch Mode (4-port)
- Fiber Redundancy Mode (2-port failover)
- Auto-switch to backup fiber on link failure
Performance:
- Switching Fabric: 14 Gbps
- Throughput: 10.42 Mpps @ 64 Bytes
- Forwarding Mode: Store-and-Forward
- Jumbo Frame: 9216 Bytes
- MAC Address Table: 4K

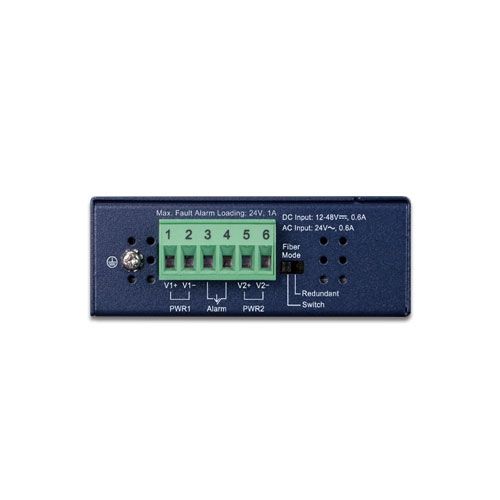

Power Supply:
- 12–48 V DC or 24 V AC input (redundant, reverse polarity protected)
- Power Consumption: 4.92W / 16.9 BTU max
- Alarm Relay: 1A @ 24V DC on power failure
Physical Characteristics:
- Dimensions: 135 x 87.8 x 32 mm
- Weight: 419g
- Housing: IP30 metal enclosure
- Mounting: DIN rail or wall-mount kit
Environmental Specs:
- Operating Temp: -40 to +75 °C
- Humidity: 5–95% (non-condensing)
- ESD Protection: 6KV
- Certified for shock, vibration, and free fall (IEC60068)

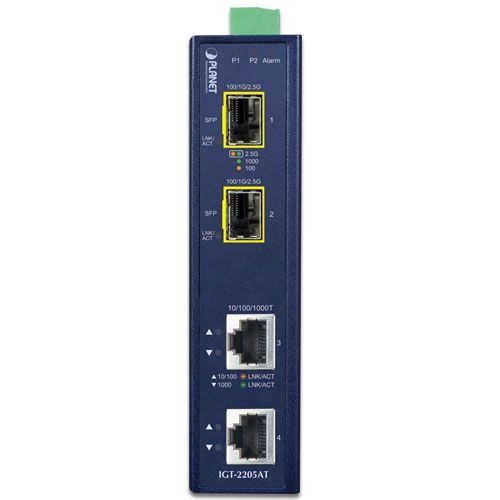

LED Indicators:
- Power 1 / 2 (Green), Alarm (Red)
- RJ45: 1G (Green), 100M (Amber)
- SFP: 2.5G (Green+Amber), 1G (Green), 100M (Amber)
Standards Compliance:
- IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x (flow control), 802.1p (CoS)
- FCC Class A, CE
Use Cases:
- Redundant fiber links in critical systems
- Long-distance Gigabit extension over SFP
- Compact deployment in harsh or confined environments
