PLANET Industrial 24-Port 10/100/1000Mbps with 4 Shared SFP

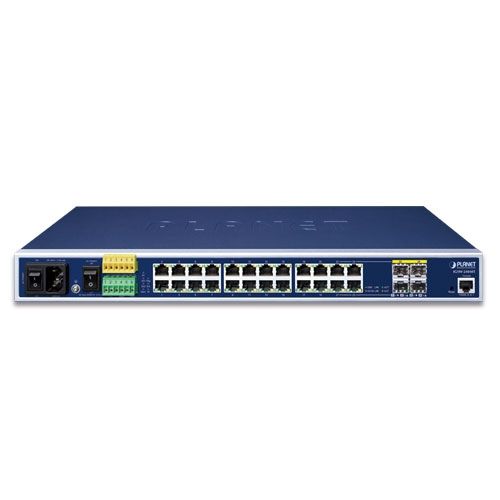

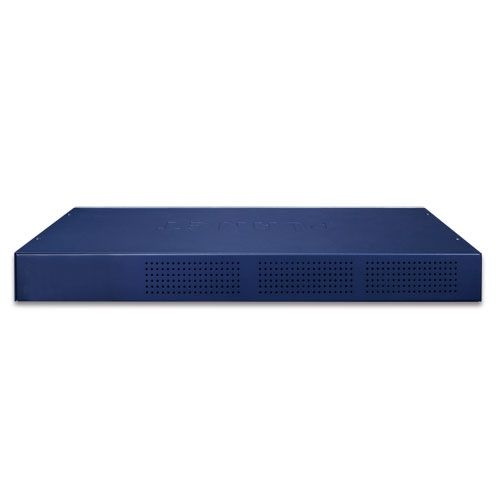

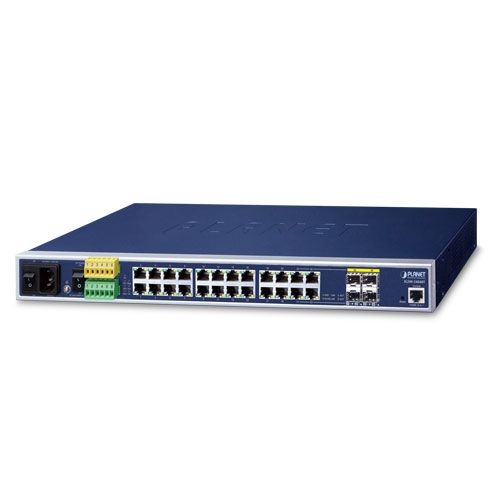

PLANET IGSW-24040T – Industrial L2+/L3 Managed Gigabit Switch with Redundant AC/DC Power

The PLANET IGSW-24040T is a highly durable, rack-mountable industrial switch featuring 24 Gigabit RJ45 ports and 4 combo SFP uplinks, housed in a fanless IP30 metal chassis. With dual-stack IPv4/IPv6 management, static Layer 3 routing, and robust Layer 2 functions, it’s tailored for mission-critical industrial networks requiring high security, fast failover, and extended fiber connectivity.

Equipped with ERPS (ITU-T G.8032) ring support, dual redundant power (AC 100–240V and DC 36–60V), and intelligent alarm interfaces (DI/DO), it enables resilient infrastructure deployment in harsh environments. Security features include ACLs, DHCP snooping, IP source guard, and 802.1X. Remote management via SNMPv3, SSHv2, and TLS ensures both flexibility and security.

Technical Specifications (English):

Network Interfaces:

• 24x 10/100/1000BASE-T RJ45 ports
• 4x 100/1000BASE-X SFP combo ports (shared with ports 21–24)
• 1x RS232-to-RJ45 console port

Performance & Switching:

• Switching Fabric: 48 Gbps
• Throughput: 35.71 Mpps @ 64 Bytes
• Jumbo Frames: up to 9 KB
• MAC Address Table: 8K

Layer 3 Routing:

• Up to 32 static routes (IPv4/IPv6)
• VLAN-based routing (up to 8 interfaces)

Layer 2 Features:

• VLAN: IEEE 802.1Q, Q-in-Q, Voice VLAN, PVE, MAC/IP/Protocol-based
• Spanning Tree: STP, RSTP, MSTP with per-VLAN BPDU Guard
• Link Aggregation: 12 groups, 8 ports each (LACP / Static)
• Loop protection, ERPS, LLDP, IEEE 1588v2 PTP

Multicast Support:

• IGMP snooping v1/v2/v3 with Querier
• MLD snooping v1/v2 with Querier
• MVR (Multicast VLAN Registration)

Quality of Service (QoS):

• 8 priority queues per port
• Strict Priority and WRR
• IEEE 802.1p, DSCP/TOS/IP Precedence
• Bandwidth control per port (Ingress/Egress)

Security Features:

• 802.1X port/MAC-based access with RADIUS/TACACS+
• DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
• ACLs: IP and MAC-based (up to 256 entries)
• IP-MAC-Port Binding, Port Security, DoS Prevention

Management & Monitoring:

• Web GUI, Telnet, CLI, SNMP v1/v2c/v3
• Secure: SSHv2, TLSv1.2
• LLDP/LLDP-MED, NTP, SFP-DDM diagnostics
• PLANET NMS, Smart Discovery, CloudViewer
• Syslog/Event Log, SNMP Traps

Digital Alarm I/O:

• 2x DI: -24~2.1V (Low), 2.1~24V (High), max 10mA
• 2x DO: Open collector 24VDC, 100mA
• Alarm Relay: 1A @ 24V DC (for port/power issues)

Mechanical & Power:

• IP30 metal case, 48,3 cm ( 19 inch ) 1U rack-mount
• Dimensions: 444 x 200 x 44.2 mm; Weight: 2788g
• Operating Temp:
• AC: -10 to +60 °C
• DC: -40 to +75 °C
• Power Input:
• AC: 100–240V, 0.5A, 50/60Hz
• DC: 36–60V, 0.7A
• Power Consumption: Max 19.7W / 67.2 BTU
• EFT/ESD Protection: 6KV

Use Cases:

• Core network for factories, transport, or tunnels
• Secure infrastructure with VLAN segmentation
• Centralized control with real-time alerts
