Planet Industrial L2+ 24-Port Managed Switch IGS-R4215-24T4X

PLANET IGS-R4215-24T4X – Rugged Industrial Switch with High-Speed 10G Uplink

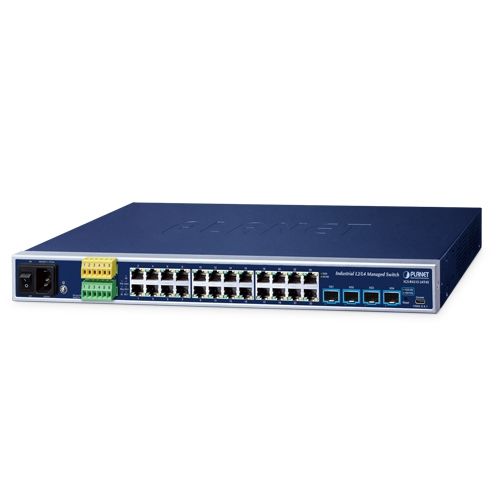

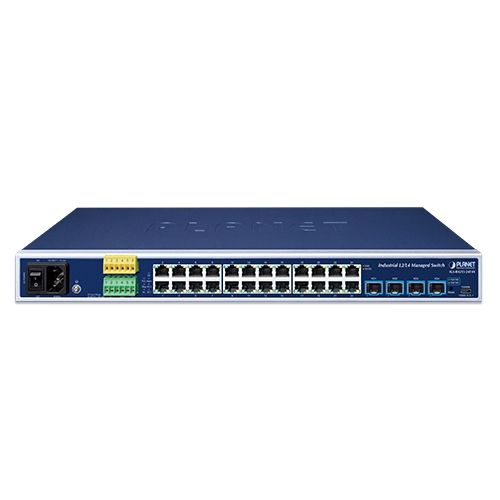

The PLANET IGS-R4215-24T4X is a high-performance, fanless, L2+/L4 Managed Gigabit Switch designed for industrial environments. Housed in a sturdy 1U rack-mountable IP30 metal chassis, it provides 24 Gigabit RJ45 ports and 4 10G SFP+ uplinks for high bandwidth backbone connections. It supports IPv6/IPv4 dual stack, Layer 3 static routing, and advanced L2/L4 switching capabilities, making it ideal for secure and efficient industrial networks.

With dual AC/DC redundant power, ERPS ring protection, and advanced security mechanisms like IP Source Guard, ACLs, and DHCP snooping, the switch is perfect for mission-critical deployments in factories, ports, and warehouses. Digital input/output ports allow real-time alarm integration. Additionally, the device supports intelligent SFP diagnostics, and remote management through SSHv2, SNMPv3, and TLS ensures streamlined and secure administration.

Technical Specifications (English):

Network Interfaces:

• 24x 10/100/1000BASE-T RJ45 ports
• 4x 10GBASE-SR/LR SFP+ slots (backward compatible with 100M/1G/2.5G)
• 1x USB Type C console interface

Performance:

• Switch Fabric: 128 Gbps
• Throughput: 95.23 Mpps at 64 Bytes
• MAC Table: 16K entries
• Jumbo Frame Support: 12KBytes

Layer 3 Routing:

• Up to 32 static routes
• VLAN-based IPv4/IPv6 routing

Layer 2 Features:

• VLAN: 802.1Q, Q-in-Q, Voice VLAN, Private VLAN, GVRP
• Spanning Tree Protocols: STP, RSTP, MSTP with BPDU Guard/Filter
• Link Aggregation: up to 8 groups of 8 ports (LACP / Static)
• Port Mirroring, Loop Protection, LLDP
• IGMP (v2/v3) and MLD Snooping

QoS & Traffic Control:

• 8 Priority Queues
• 802.1p, DSCP/TOS/IP precedence
• Ingress/Egress Rate Control per port
• WRR and Strict Priority Queuing

Security Features:

• ACLs: IP/MAC based, IPv4/IPv6 (256 entries max)
• DHCP Snooping, IP Source Guard, Dynamic ARP Inspection
• DoS protection, Port Security
• RADIUS/TACACS+ Authentication

Digital Alarm I/O:

• 2x Digital Inputs (DI)
• 2x Digital Outputs (DO)
• Alarm relay for link/power failure (1A @ 24V AC)
• SNMP trap-based notifications

Management & Diagnostics:

• Interfaces: Web GUI, Telnet/Console CLI
• SNMP v1/v2c/v3, SSHv2, TLSv1.2
• Syslog/Event Logging, Smart Discovery Utility
• SFP-DDM (Digital Diagnostics Monitoring)
• PLANET NMS, NMSViewerPro, CloudViewerPro Apps

Mechanical & Environmental:

• IP30-rated metal case, 1U rack-mountable
• Dimensions: 444 x 200 x 44.2 mm; Weight: 2826g
• Operating Temperature:
• DC: -40 to +75 °C
• AC: -10 to +60 °C
• Humidity: 5–95% non-condensing

Power Supply:

• AC Input: 100~240V, 50/60Hz, 1A max.
• DC Input: 24~60V, 1.5A max.
• Dual redundant AC/DC power with reverse polarity protection

Protection:

• EFT & ESD protection: 6KV
• Relay output for alerts
