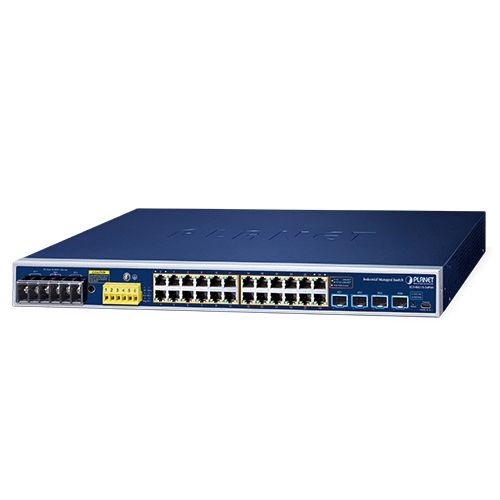

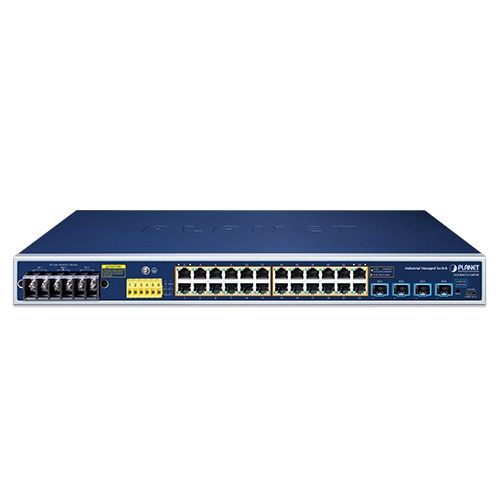

PLANET IGS-R4215-24P4X – Rackmount L2+ PoE+ Managed Switch for Harsh Industrial Environments

The PLANET IGS-R4215-24P4X is a cost-effective, fanless L2+ managed Gigabit switch designed for rugged industrial conditions. With 24 PoE+ ports (up to 36W per port) and four high-performance 10G SFP+ uplink slots, it ensures robust, uninterrupted performance in extreme temperatures ranging from -40°C to +75°C.

Supporting IPv6/IPv4 dual stack, static Layer 3 routing, and a rich set of Layer 2/4 features, the switch is ideal for advanced and secure network setups. Its redundant ring technology (ITU-T G.8032 ERPS), MSTP support, and sub-450ms recovery time ensure optimal uptime in critical environments.

Advanced PoE functions include PD alive monitoring, PoE scheduling, recycling, and extend mode (up to 250 meters), with a generous PoE budget of up to 440W. Digital I/O for external alarms, extensive security features (ACLs, DHCP snooping, DoS prevention), and versatile management via Web, SNMPv3, SSHv2, and TLSv1.2 round out the industrial-grade feature set.

Technical Data (English):

Network Ports:

• 24x 10/100/1000BASE-T RJ45 PoE+ ports
• 4x 10GBASE-SR/LR SFP+ slots (backward compatible with 100M/1G/2.5G)
• 1x USB Type-C console interface

PoE Capabilities:

• IEEE 802.3at compliant, up to 36W per port
• PoE budget: 240W (single), 440W (dual)
• Features: Scheduling, Alive Check, Power Recycling, Extend Mode (up to 250m)

Performance:

• Switching Fabric: 128Gbps
• Throughput: 95.23 Mpps @ 64Bytes
• Jumbo Frames: up to 12KBytes
• MAC Address Table: 16K

Layer 2/3 Features:

• VLAN (Q-in-Q, Voice, Private), Link Aggregation, MSTP
• IGMP/MLD Snooping, LLDP/LLDP-MED
• Up to 32 static routes
• VLAN-based IPv4/IPv6 routing

Security Features:

• Port security, DHCP snooping, IP source guard
• ACLs based on MAC/IP/TCP/UDP
• RADIUS/TACACS+ authentication
• DoS protection, ARP inspection

Management & Diagnostics:

• Web GUI, CLI, SNMP v1/v2c/v3, SSHv2, TLSv1.2
• Syslog, Smart Discovery Utility, Event logging
• SFP-DDM monitoring (optical power, temperature, etc.)
• PoE usage and thermal thresholds

Mechanical & Power:

• IP30 metal enclosure, 48,3 cm ( 19 inch ) rack-mountable (1U)
• Operating temperature: -40°C to +75°C
• Dual 48-54V DC input, max 486W consumption
• 2x Digital Inputs, 2x Digital Outputs
• Relay output for link/power failure alarm

Applications:

• Centralized PoE for IP cameras, wireless APs, VoIP phones
• Redundant and alarm-equipped infrastructure for automation
• Energy-saving with PoE scheduling
