Product information for Planet IGS-824UPT:

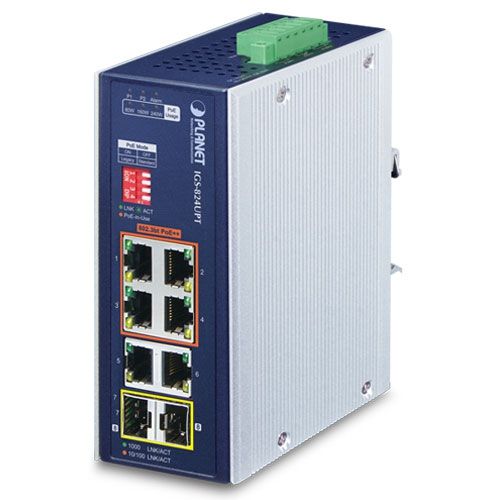

The PLANET IGS-824UPT is a rugged unmanaged industrial Gigabit switch featuring four 802.3bt PoE++ RJ45 ports and two dual-speed fiber SFP uplink ports. Designed for harsh conditions, it delivers up to 95 watts per PoE++ port and high-speed data transmission for demanding PDs in remote deployments.
High-Power PoE++ Capability
With IEEE 802.3bt Type 4 and UPoE support, each PoE port can deliver up to 95W. This makes it ideal for:
- PTZ IP dome cameras
- Thin clients
- All-in-one touch kiosks and POS terminals
- Remote digital signage
- Smart PoE lighting
Real-Time PoE Power Monitoring

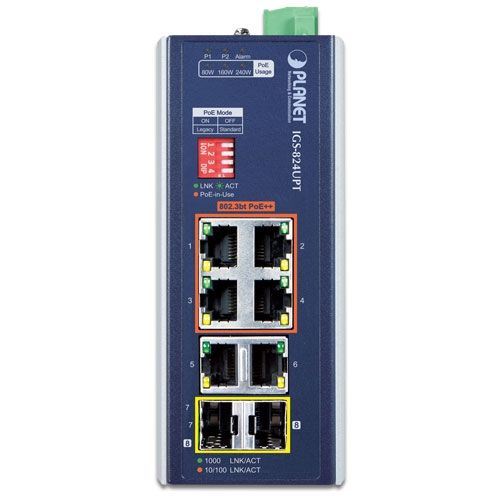

Three intuitive LED indicators on the front panel show current power usage at 80W, 160W, or 240W, simplifying power management and monitoring.
Flexible Fiber Optic Uplinks
Equipped with 2 SFP slots supporting 100BASE-FX and 1000BASE-X, the IGS-824UPT enables long-range uplinks over multi- or single-mode fiber, ranging up to 120km.

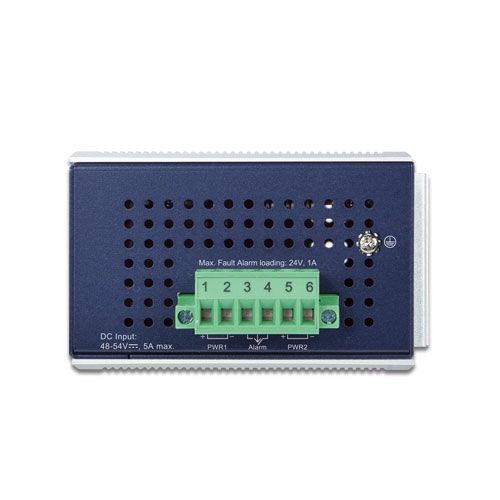

Redundant Power Input
Dual DC 48–54V inputs ensure continuous uptime through automatic failover in case of a primary power supply failure.
Industrial-Grade Durability
Built in an IP30-rated aluminum enclosure and engineered for silent fanless operation, the IGS-824UPT withstands -40 to 75 °C temperatures, high EMI, and ESD or surge threats.
Typical Applications
- NVR-based IP surveillance
- Building security and automation
- Outdoor PoE wireless access deployment
Technical Specifications:
Ports:
- 6 x 10/100/1000BASE-T RJ45 (4 PoE++ capable)
- 2 x SFP slots (100/1000BASE-X dual mode, 100BASE-FX compatible)
PoE Features:
- IEEE 802.3bt Type 4, UPoE support
- 240W max budget (52–54V), 160W (48–51V)
- Up to 95W per port
- Modes: End-span / Mid-span / Legacy
- Power Pins: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
Switching:
- Architecture: Store-and-Forward
- Switching Fabric: 16 Gbps
- Throughput: 11.9 Mpps @ 64 bytes
- MAC Table: 4K entries
- Jumbo Frame: 9K
- Packet Buffer: 1 Mbit
Power & Construction:
- Consumption: Up to 252W (PoE full load)
- Redundant 48–54V DC input with reverse polarity protection
- Fault alarm relay
- Dimensions: 56 x 86.1 x 135 mm
- Weight: 777 g
- Mounting: DIN rail and wall-mount options
Environmental:
- Operating Temp: -40 to +75 °C
- Humidity: 5–90% (non-condensing)
Standards & Compliance:
- IEEE 802.3 series (Ethernet, Fast Ethernet, Gigabit Ethernet)
- IEEE 802.3bt, 802.3at, 802.3af PoE standards
- IEEE 802.3x, 802.3az EEE
- FCC Part 15 Class A, CE
- IEC 60068-2-32/27/6 (Drop, Shock, Vibration)
