PLANET 8-Port 10/100/1000T Industrial Gigabit Ethernet
|
132,26 EUR |
|
|
( 157,39 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 1 workdaysinfo_outline | |
| In Stock: 4 pieces | |
| Lieske Part No.: | 1225924 |
|---|---|
| Mfg Part No: | IGS-801T |
| UPC/EAN: | 4711213687792 |
| Weight: | 0.6 kg |
Product information for Planet IGS-801T:

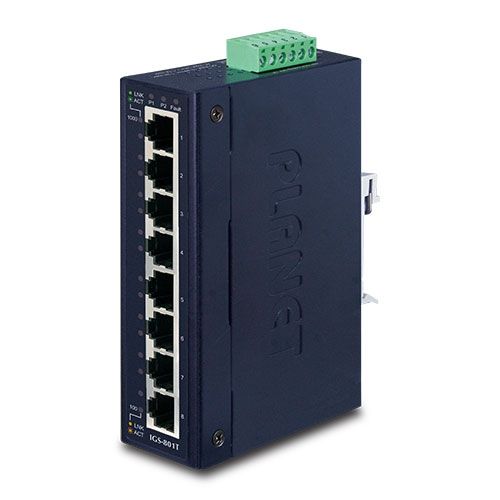

The PLANET IGS-801T is a compact, rugged 8-Port Gigabit Ethernet Switch housed in an IP30-rated metal enclosure, designed for demanding industrial environments. Its 8 auto-negotiation RJ45 ports ensure stable, high-speed connectivity while saving space with its slim profile and wall or DIN-rail mount options.
Energy-Efficient Performance
The IGS-801T uses advanced green networking features including link-on and link-down power saving modes. It supports IEEE 802.3az Energy Efficient Ethernet (EEE) to automatically adapt its power usage based on connection status and traffic activity — reducing power draw without sacrificing performance.
Reliable Operation in Harsh Conditions
Engineered to withstand extreme conditions, the IGS-801T operates in -40 to 75 °C temperatures and is resistant to electrical surges and interference. Dual power inputs (12–48V DC or 24V AC) ensure uninterrupted operation during power disruptions.
High-Speed Switching Architecture
Featuring a 16 Gbps switching fabric, 4K MAC address table, 1.5 Mbit packet buffer, and support for 9K jumbo frames, the IGS-801T handles high-volume traffic with ease, ideal for connecting to backbone switches or high-performance servers.
Plug-and-Play Integration
All RJ45 ports support 10/100/1000Mbps auto-negotiation and auto-MDI/MDI-X, making setup straightforward with standard Cat 5/5e/6 cables — no crossover cables required.
Technical Specifications:
Ports:

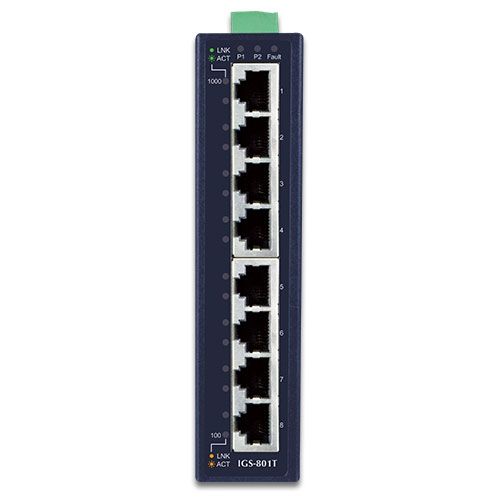

- 8 x 10/100/1000BASE-T RJ45 with Auto-MDI/MDI-X
Switch Architecture:
- Store-and-Forward
- Switching Fabric: 16 Gbps
- Throughput: 11.9 Mpps @ 64 Bytes
- MAC Table: 4K entries
- Jumbo Frame: 9K Bytes
- Packet Buffer: 1.5 Mbit SRAM
Power:
- Consumption: 6.72W / 23 BTU

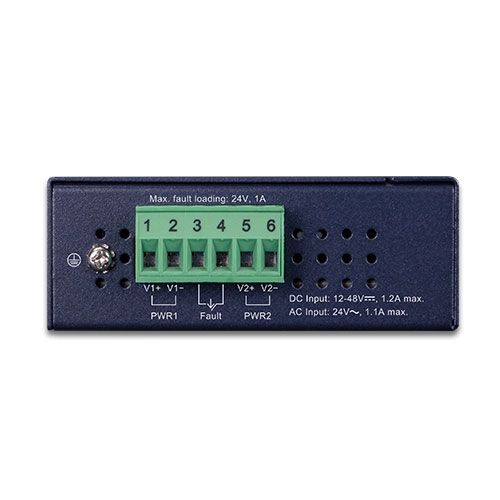

- Input: 12–48V DC (redundant) or 24V AC
- Reverse polarity protection
Housing & Installation:
- IP30 metal case
- Dimensions: 32 x 87.8 x 135 mm
- Weight: 476 g
- Mounting: DIN rail or wall mount
Layer 2 Features:
- IEEE 802.3x Flow Control (Full Duplex), Back Pressure (Half Duplex)
- Broadcast Storm Protection
- CRC and Runt Packet Filtering
- 802.1p Class of Service
- Auto learning and aging
- CSMA/CD protocol
Environment:
- Operating Temperature: -40 to +75 °C
- Humidity: 5% to 95% (non-condensing)
Compliance:
- IEEE 802.3 / 802.3u / 802.3ab / 802.3x / 802.3az
- FCC Part 15 Class A, CE, UL
- IEC 60068-2-32/27/6 (Free Fall, Shock, Vibration)
