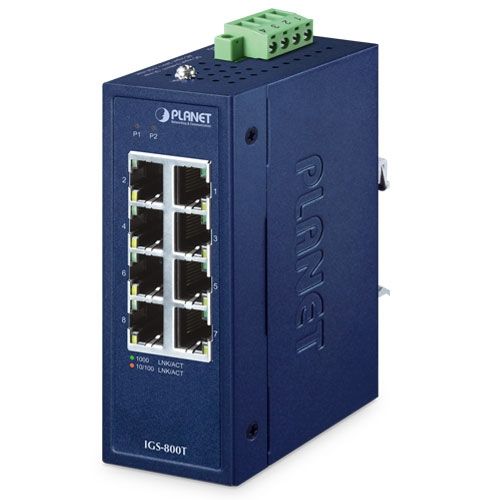

PLANET Industrial 8-Port 10/100/1000T Switch IGS-800T

Compact Industrial Gigabit Switch for Practical and Space-Saving Deployment

The PLANET IGS-800T is a space-efficient 8-port industrial Gigabit Ethernet switch designed for use in rugged environments with space constraints. Housed in a durable IP30-rated metal enclosure, it operates reliably from -40 to +75 °C, making it perfect for factories, warehouses, marine applications, and electrical cabinets.

Equipped with eight 10/100/1000BASE-T ports, the IGS-800T ensures high-performance data transmission and supports fanless, silent operation. Its dual redundant power input (9–48V DC or 24V AC) provides critical uptime protection in automation networks.

Thanks to IEEE 802.3az Energy Efficient Ethernet and intelligent power-saving features (e.g., link-down/link-on detection), the IGS-800T consumes over 50% less energy compared to the IGS-801T – ideal for ESG-aligned networks.

Technical Details:

Ports:

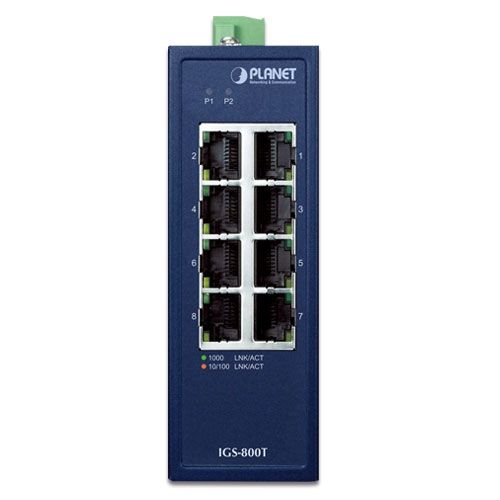

• 8x 10/100/1000BASE-T RJ45 with Auto-MDI/MDI-X

Switch Specifications:

• Switching Fabric: 16 Gbps
• Throughput: 11.9 Mpps @ 64 Bytes
• MAC Address Table: 4K entries
• Jumbo Frame: 9K Bytes
• Store-and-Forward with QoS and Broadcast Storm Control
• PROFINET Traffic Pass-through

Power Supply:

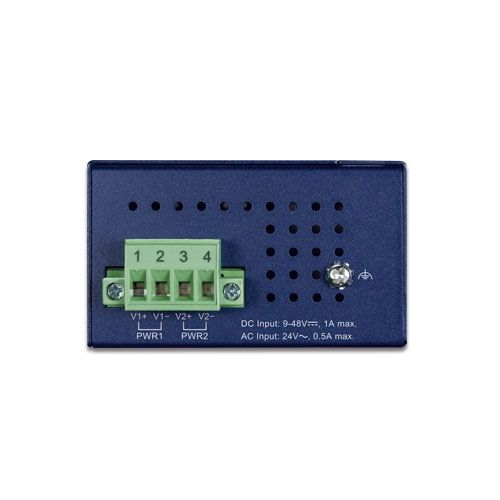

• 9–48V DC redundant with reverse polarity protection
• 24V AC support
• Power Consumption: max. 2.88 W / 9.83 BTU

Housing & Installation:

• IP30-rated metal enclosure
• DIN rail and wall mountable
• Dimensions: 41 × 70 × 115 mm
• Weight: 305 g

Surge & ESD Protection:

• ESD: 6 kV
• EFT: 6 kV

Environmental:

• Operating Temperature: -40 to +75 °C
• Humidity: 5–90%, non-condensing

Certifications:

• CE, FCC Class A
• IEC 60068-2-32/27/6 certified for drop, shock, and vibration
