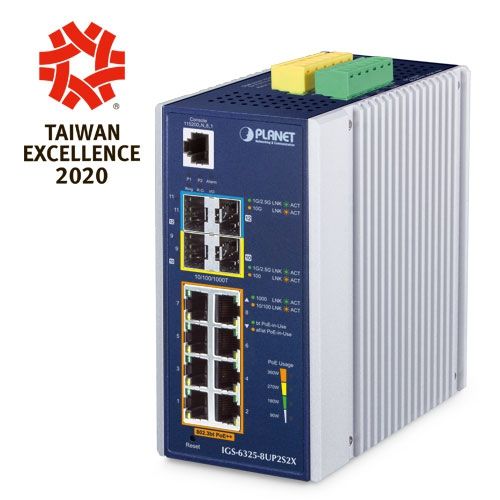

PLANET Industrial L3 8-Port GE + 2x 2.5G SFP + 2x 10G SFP+
|
633,89 EUR |
|
|
( 754,33 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 270362 |
|---|---|
| Mfg Part No: | IGS-6325-8UP2S2X |
| UPC/EAN: | 4711605284738 |
| Weight: | 1.69 kg |
Product information for Planet IGS-6325-8UP2S2X:
The PLANET IGS-6325-8UP2S2X is a robust industrial-grade Layer 3 managed switch, offering eight 10/100/1000BASE-T PoE++ ports delivering up to 95 watts each, two 2.5G SFP ports, and two 10G SFP+ uplinks. Designed for harsh environments, it features an IP30 aluminum enclosure, redundant power inputs, and an operating temperature range from -40 to 75°C—perfect for surveillance, automation, and mission-critical edge applications.
Key Features:
- Full IEEE 802.3bt PoE++ support (up to 95W per port)
- Dual-speed 2.5G/1G SFP & 10G SFP+ uplinks
- Built-in ONVIF device discovery & GUI integration
- Advanced Layer 3 routing: OSPF, RIP, static (IPv4/IPv6)
- Security: 802.1X, ACL, DHCP Snooping, ARP Inspection
- Industrial protocols: Modbus TCP, IEEE 1588 PTPv2
- Redundant ring support with G.8032 ERPS (<10ms recovery)
Technical Specifications (English):

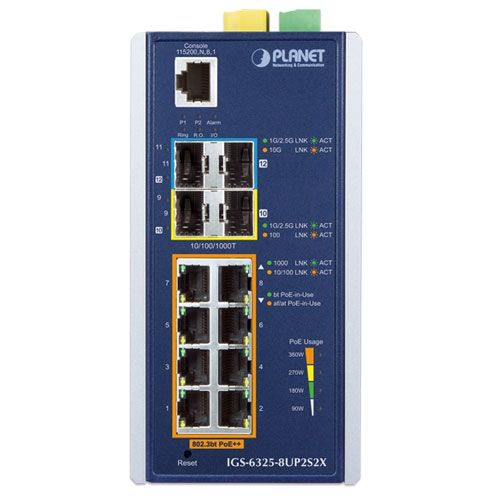

Ports:
- 8 x 10/100/1000BASE-T PoE++ (up to 95W each)
- 2 x 100/1000/2500BASE-X SFP (Port 9-10)
- 2 x 10GBASE-SR/LR SFP+ (Port 11-12)
- 1 x Console (RJ45 RS232)
PoE:
- IEEE 802.3bt Type-4 compliant, backward with af/at
- Total power budget: 360W (dual DC input)
- Modes: Standard, Legacy, Force, End/Mid-span
- PoE extension up to 200 meters
- Features: Scheduling, alive check, budget control, reboot timing
Performance:
- Switching Fabric: 60 Gbps
- Throughput: 44.64 Mpps @64Bytes
- MAC Table: 16K, Jumbo Frame: 10KByte
- Buffer: 32Mbits
Layer 3:
- OSPFv2/v3, RIP v1/v2, static routes (IPv4/IPv6)
- Up to 128 routes and VLAN interfaces
Layer 2:
- VLAN: 802.1Q, Q-in-Q, MAC-/Protocol-based, Private, Voice VLAN, GVRP
- STP, RSTP, MSTP, BPDU Guard
- LACP (4 groups × 4 ports), Loop prevention, LLDP, ERPS
- IGMP Snooping (v1–v3), MLD (v1/v2), MVR
QoS:
- 8 priority queues, CoS, DSCP, TOS-based policies
- Bandwidth: 500Kb–1Gbps per port
- Traffic policing, DSCP remarking
Security:
- ACLs (MAC/IP/Protocol/VLAN/DSCP)
- 802.1X port/MAC auth, Guest VLAN
- DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
- RADIUS & TACACS+ support
Management:
- Web UI, CLI (Telnet/Console), SNMP v1/v2c/v3, SSH, TLS
- SFP-DDM, ping, cable diagnostics, SNMP trap, Syslog, SMTP
- Dual image, DHCP (server/relay/option 82), NTP
- Compatible with UNI-NMS & CloudViewer

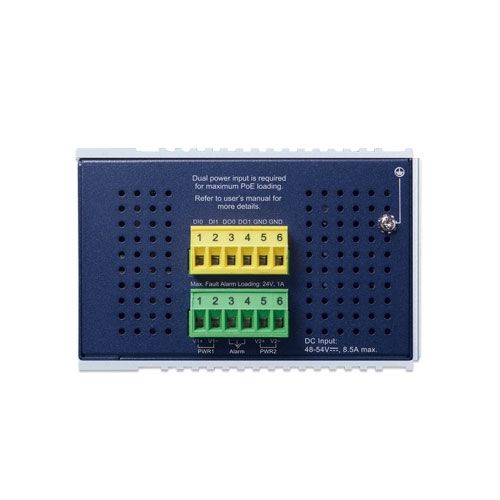

Industrial Design:
- IP30-rated metal housing, DIN or wall mount
- Dual DC 48–54V input, max power: 415.2W
- ESD: 8KV air, 6KV contact / Surge: 4KV
- Operating Temp: -40 ~ 75°C
Dimensions & Weight:
- Size: 86 x 107 x 152 mm
- Weight: 1.355 kg
Questions & answers
What is the delivery time of PLANET Industrial L3 8-Port GE + 2x 2.5G SFP + 2x 10G SFP+?
The article PLANET Industrial L3 8-Port GE + 2x 2.5G SFP + 2x 10G SFP+ is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 16 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Planet IGS-6325-8UP2S2X to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you PLANET Industrial L3 8-Port GE + 2x 2.5G SFP + 2x 10G SFP+ always at the best possible price. We can give you a discount of 2% on PLANET Industrial L3 8-Port GE + 2x 2.5G SFP + 2x 10G SFP+ if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
