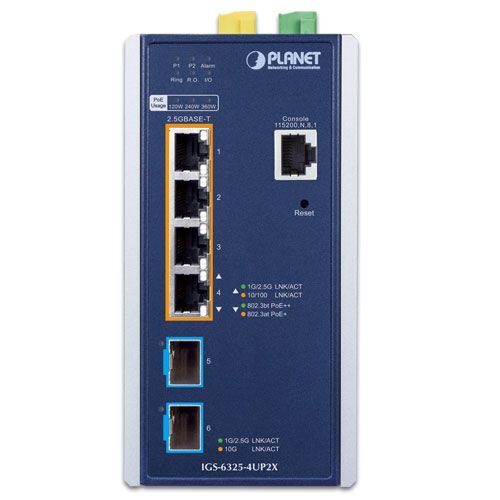

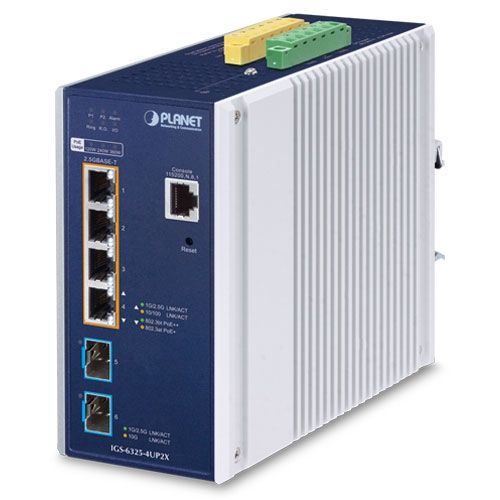

PLANET Industrial 4-Port PoE++ Managed Switch IGS-6325-4UP2X
|
528,81 EUR |
|
|
( 629,28 EUR incl. VAT ) ≈ £455.83 | ≈ $599.67 plus delivery charges: 53,00 € |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1196984 |
|---|---|
| Mfg Part No: | IGS-6325-4UP2X |
| UPC/EAN: | 4711605287159 |
| Weight: | 0.12 kg |
Product information for Planet IGS-6325-4UP2X:
Compact L3 Industrial Switch with 2.5G PoE++ and 10G SFP+ – Ideal for High-Power Industrial Networks
The PLANET IGS-6325-4UP2X is a highly rugged Layer 3 Managed Switch designed for industrial-grade applications. It features four 2.5GBASE-T ports with IEEE 802.3bt PoE++ (up to 95W per port) and two 10G SFP+ uplinks, providing robust and high-speed data transmission in demanding environments from -40°C to +75°C.
This switch supports a total PoE power budget of 360W, intelligent PoE management such as PD Alive Check, PoE scheduling, auto recovery, and rich Layer 3 routing protocols. Its compact DIN-rail or wall-mountable form factor makes it a perfect fit for surveillance, wireless, and industrial backbone applications.
Technical Details (English):
Interfaces:
- 4 x 2.5GBASE-T RJ45 PoE++ ports (IEEE 802.3bt, 95W per port)
- 2 x 10G SFP+ uplinks (compatible with 1G/2.5G SFP)
- 1 x RJ45-to-RS232 console port
PoE++ Power Capabilities:
- IEEE 802.3bt Type-4 standard, UPOE/Force modes
- Total power budget: 360W (dual DC input), 240W (single input)
- Intelligent PoE: PD Alive Check, Scheduling, Power Recycling, PoE Extend (up to 160m)
Layer 3 Routing:
- IPv4/IPv6 static routing
- Dynamic routing: RIPv2, OSPFv2 (IPv4), OSPFv3 (IPv6)
- VLAN interface routing (up to 32 entries)
Layer 2 Switching:
- VLAN: IEEE 802.1Q, Q-in-Q, Private VLAN, Voice, MAC/Protocol/IP subnet
- Link Aggregation: 3 groups, max 6 ports per group
- STP/RSTP/MSTP with BPDU Guard
- QoS: 8 queues, DSCP, CoS, rate limiting
Multicast / Security:
- IGMP/MLD Snooping, MVR, Querier mode
- ACLs: IP/MAC-based (up to 512)
- Security: IEEE 802.1X, RADIUS/TACACS+, DHCP Snooping, ARP Inspection, IP Source Guard
Alarming & Timing:
- 2 Digital Inputs / 2 Digital Outputs
- Alarm relay: 1A @ 24V
- IEEE 1588 PTPv2, ERPS G.8032, SFP-DDM
Hardware & Power:
- IP30 aluminum housing, DIN-rail or wall-mount
- Dimensions: 76 x 135 x 152 mm, Weight: 1.32 kg

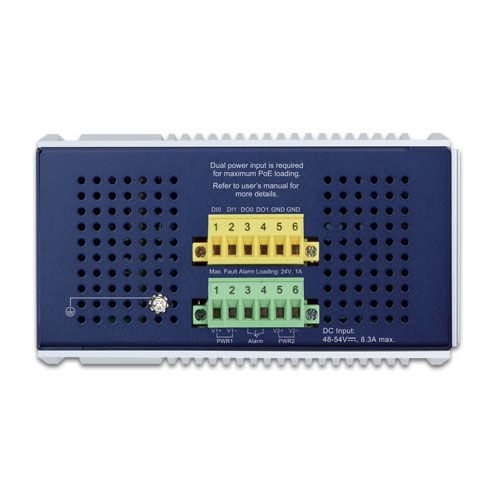

- Dual 48–54V DC, max. 8.3A
- Power consumption: up to 381W (full load)
Management:
- Web GUI, Telnet, CLI, SNMP v1/v2c/v3, SSHv2, TLSv1.2
- Dual firmware, DHCP/TFTP/NTP, RMON
- PLANET Smart Discovery, UNI-NMS, CloudViewer
Application Scenarios:
- Industrial automation & control
- High-power IP surveillance and wireless APs
- 10G uplink in rugged network environments
- Smart cities and IIoT infrastructure
Questions & answers
What is the delivery time of PLANET Industrial 4-Port PoE++ Managed Switch IGS-6325-4UP2X?
The article PLANET Industrial 4-Port PoE++ Managed Switch IGS-6325-4UP2X is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 16 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Planet IGS-6325-4UP2X to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you PLANET Industrial 4-Port PoE++ Managed Switch IGS-6325-4UP2X always at the best possible price. We can give you a discount of 2% on PLANET Industrial 4-Port PoE++ Managed Switch IGS-6325-4UP2X if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
