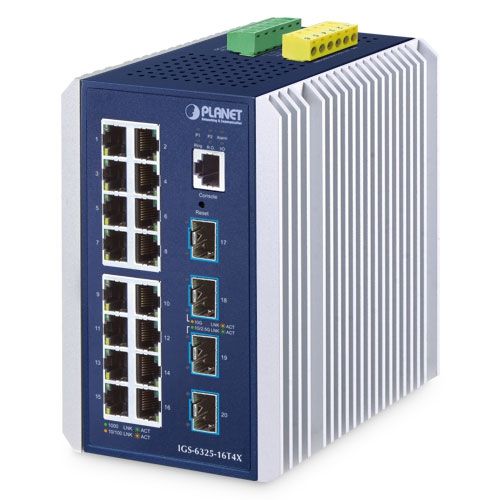

Planet Industrial 16-Port Managed Switch IGS-6325-16T4X
|
901,68 EUR |
|
|
( 1.073,00 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 1 workdaysinfo_outline | |
| In Stock: 2 pieces | |
| Lieske Part No.: | 873608 |
|---|---|
| Mfg Part No: | IGS-6325-16T4X |
| UPC/EAN: | 4711605287425 |
| Weight: | 1.95 kg |
Product information for Planet IGS-6325-16T4X:
High-Performance 10Gb Layer 3 Industrial Switch for Data-Intensive Networks
The PLANET IGS-6325-16T4X is a rugged, high-performance Layer 3 Managed Industrial Switch featuring 16 Gigabit RJ45 ports and 4 10G SFP+ slots. Designed for demanding environments, it operates reliably between -40 and +75 °C and delivers up to 112Gbps switching capacity, making it ideal for data centers, ISPs, industrial networks, and telecom backbones.
With flexible triple-speed SFP+ ports (10G/2.5G/1G), you can customize uplinks to suit any distance or bandwidth requirement. Advanced Layer 3 routing (OSPFv2/v3, RIP, VLAN Routing), cybersecurity functions, ERPS ring recovery (<10ms), and full industrial protocols make the IGS-6325-16T4X a powerful, secure and scalable networking solution.
Technical Specifications (English):
Interfaces:

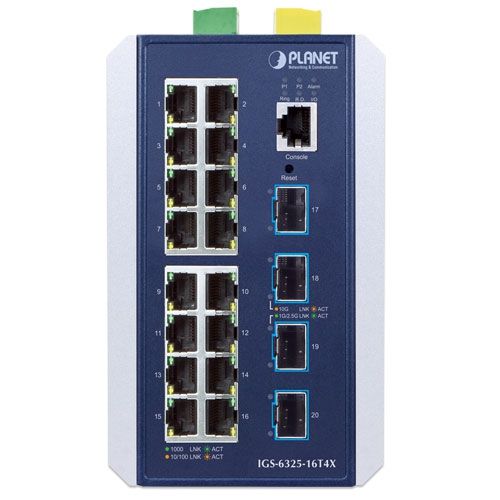

- 16 x 10/100/1000BASE-T RJ45 ports
- 4 x 10GBASE-SR/LR SFP+ slots (backward compatible with 1G/2.5G)
- 1 x RJ45-to-RS232 console port
Performance:
- Switching Capacity: 112Gbps / 83.3Mpps
- 32K MAC address table
- Jumbo Frame: 10K
- Store-and-Forward switching
- Routing: IPv4/IPv6 Static, OSPFv2/v3, RIP, VLAN Routing (4K routes)
Layer 2+ Capabilities:
- VLAN: 4K groups, Q-in-Q, Private VLAN, MAC/IP/Protocol/Voice VLAN
- Link Aggregation: 10 groups, 16 ports each, 80Gbps max
- Spanning Tree: STP, RSTP, MSTP, BPDU Guard
- Multicast: IGMP/MLD Snooping, Querier, MVR
- Bandwidth Control (Ingress/Egress: 100Kbps–1Gbps)
- QoS with 8 queues, DSCP/ToS, WRR, CoS
Security:
- IP/MAC-based ACLs (512 entries)
- IEEE 802.1X port/MAC authentication
- DHCP Snooping, DAI, IP Source Guard, Static MACs
- RADIUS, TACACS+, Guest VLAN
Management & Monitoring:
- Management via Web, Telnet, Console, SNMP v1/v2c/v3, SSHv2, TLS
- Dual firmware image, Syslog, SMTP, RMON, LLDP
- PLANET UNI-NMS and CloudViewerPro supported
- Modbus TCP, IEEE 1588v2 PTP Transparent Clock
- Diagnostics: SFP-DDM, Cable Test, Ping
Industrial Design:
- Rugged IP30 aluminum enclosure
- DIN-rail or wall-mountable

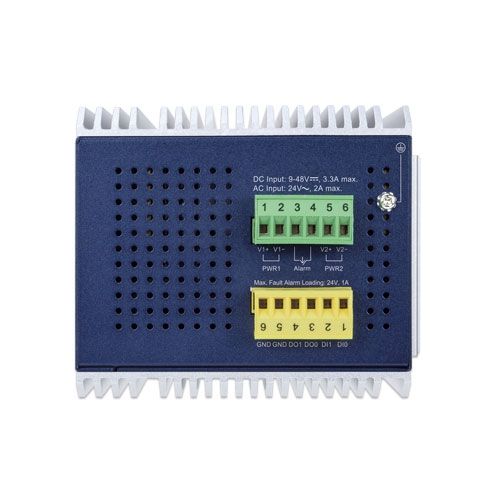

- Dual power input: DC 9–48V / AC 24V (reverse polarity protected)
- Operating Temperature: -40 to +75 °C
- Power Consumption: Max 24W
- Dimensions: 96 x 107 x 152 mm; Weight: 1.5 kg
- ESD Protection: 6KV / Surge: 4KV
Applications:
- High-speed optical backbone for ISPs, carriers, factories
- Resilient mesh for big data or critical automation
- Secure multi-service networks with long-distance fiber uplinks
