PLANET Industrial L3+ 16-Port 1000T + 4Port 1000X SFP
|
624,84 EUR |
|
|
( 743,56 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1605241 |
|---|---|
| Mfg Part No: | IGS-6325-16T4S |
| Weight: | 1.76 kg |
Product information for Planet IGS-6325-16T4S:

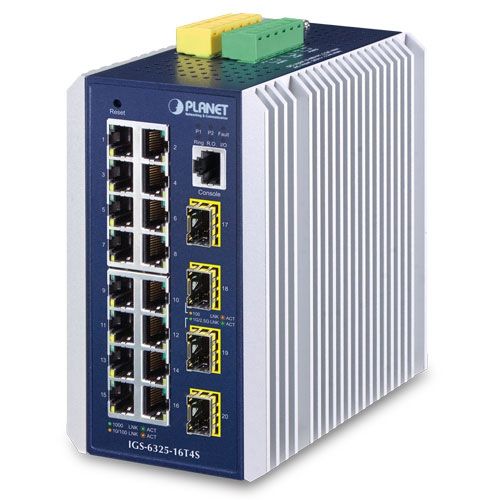

The PLANET IGS-6325-16T4S is a compact, industrial-grade Layer 3 managed switch featuring 16 10/100/1000BASE-T RJ45 ports and 4 100/1000/2500BASE-X SFP slots, housed in a DIN-rail mountable aluminum enclosure. Despite its small size, it delivers robust performance and reliable, long-range connectivity for mission-critical environments. With full Layer 3 OSPFv2 routing, ERPS ring protection, IPv6 dual stack, Modbus TCP support, and comprehensive security, it is tailored for automation systems, telecom networks, and high-availability infrastructures.
Technical Specifications (English):
Interfaces:

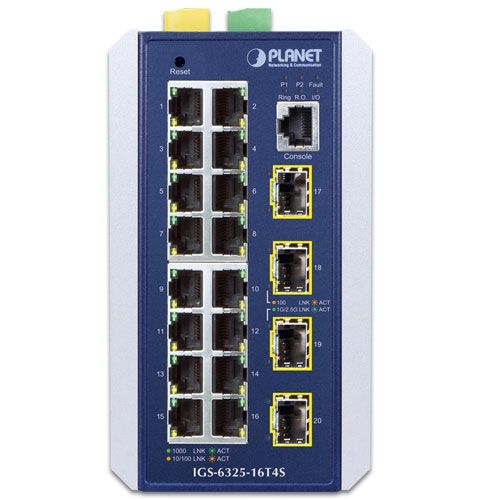

- 16 x 10/100/1000BASE-T RJ45 ports
- 4 x 100/1000/2500BASE-X SFP slots
- 1 x RJ45-to-RS232 console port
Core Features:
- Layer 3 routing: OSPFv2, IPv4/IPv6 static routing, 4K dynamic routes
- VLAN routing with up to 128 interfaces
- Switching capacity: 52 Gbps / 38.69 Mpps
- 32K MAC address table, 16Mb buffer, 10K jumbo frames
Layer 2 Capabilities:
- VLAN: 4K groups, Q-in-Q, Private VLAN, GVRP
- Aggregation: 14 trunk groups, 16 ports each, up to 80 Gbps
- Spanning Tree: STP, RSTP, MSTP
- Multicast: IGMP v1/v2/v3, MLD v1/v2, MVR
- Per-port bandwidth: 100Kbps–1000Mbps
Security:
- Access Control Lists (IP/MAC-based), 512 entries
- Port security, DHCP Snooping, IP Source Guard, DAI
- IEEE 802.1X port/MAC authentication
- Supports RADIUS and TACACS+
Management & Diagnostics:
- Dual IPv4/IPv6 Stack
- Management via Web GUI, Telnet, Console, SNMP v1/v2c/v3, SSHv2, TLS v1.2
- Tools: SFP DDM, cable diagnostics, ping, NTP
- Dual firmware images, Syslog, SMTP, RMON, LLDP
- PLANET Smart Discovery Utility
Industrial Design:
- Operating temp: -40 to +75 °C, IP30 enclosure

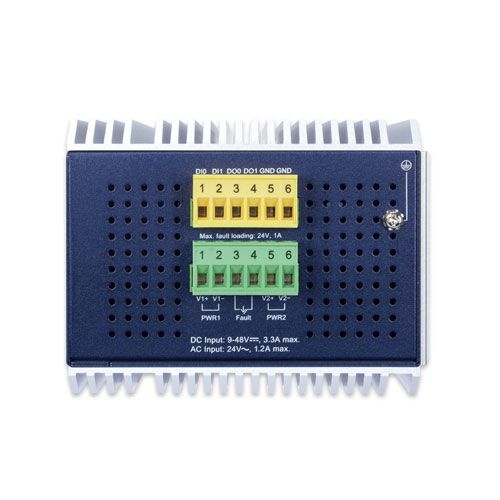

- Power: Dual DC 9–48V / AC 24V redundant inputs
- 2 Digital Inputs / 2 Digital Outputs for external alarm triggers
- ERPS G.8032 ring protection, <10ms recovery
- IEEE 1588v2 PTP Transparent Clock
Dimensions & Power:
- Size: 76.8 x 107.3 x 152 mm
- Weight: 1168 g
- Max Power: 29W (AC), 26W (DC)
- ESD: 6KV / Surge: 4KV
Use Cases:
- Redundant fiber infrastructure for data centers and carriers
- Industrial automation backbones
- Secure surveillance and long-distance connectivity in smart cities
