PLANET Industrial 16-Port 10/100/1000T + 4 1G/2.5 SFP POE
|
874,50 EUR |
|
|
( 1.040,66 EUR incl. VAT ) ≈ £753.82 | ≈ $991.68 plus delivery charges: 53,00 € |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 278092 |
|---|---|
| Mfg Part No: | IGS-6325-16P4S |
| UPC/EAN: | 4711605284134 |
| Weight: | 1.84 kg |
Product information for Planet IGS-6325-16P4S:
The PLANET IGS-6325-16P4S is a feature-rich industrial-grade Layer 3 managed PoE+ switch with 16 Gigabit Ethernet PoE ports and 4 dual-speed 100/1000/2500BASE-X SFP slots. Built in a rugged IP30 aluminum chassis, this switch delivers up to 360 watts of total PoE power and ensures reliable operation from -40 to 75°C, making it ideal for mission-critical deployments. Designed for industrial surveillance, transportation, and automation networks, the IGS-6325-16P4S supports advanced Layer 2/3/4 functions, including OSPFv2/v3, RIP, ERPS ring protection, ACLs, Modbus TCP, ONVIF support, and remote network management via UNI-NMS and CloudViewerPro.
Technical Specifications (English):

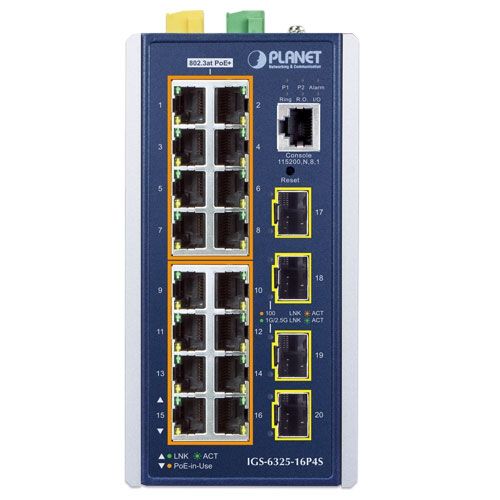

Interfaces:
- 16 x 10/100/1000BASE-T RJ45 with IEEE 802.3at PoE+ (36W per port)
- 4 x 100/1000/2500BASE-X SFP (auto-detection)
- 1 x RJ45 Console port
PoE Features:
- Total PoE budget: 360W (dual 54V input)
- IEEE 802.3af/at compliant
- PoE Management: Scheduling, PD Alive Check, Power Recycling, PoE Extender (up to 160m)
Layer 3 Capabilities:
- 128 static routes, RIP v2, OSPF v2/v3
- VLAN-based routing interfaces (IPv4/IPv6)
Layer 2 Switching:
- VLANs: up to 4K IDs, 255 active groups
- Q-in-Q, Private VLAN, MAC/Protocol/Subnet-based VLANs
- STP/RSTP/MSTP, BPDU Guard
- Link Aggregation: 10 groups with up to 20 ports (LACP & Static)
- Multicast: IGMP v1/v2/v3, MLD v1/v2, MVR
- Per-port bandwidth control (Ingress/Egress)
Security:
- 802.1X Port-/MAC-based authentication
- RADIUS, TACACS+, ACLs (MAC/IP/EtherType/VLAN/DSCP)
- DHCP Snooping, DAI, IP Source Guard
- Port security, static MACs, AAA management
Management & Diagnostics:
- Web GUI, Telnet, CLI, SNMP v1/v2c/v3, SSHv2, TLSv1.2
- ONVIF device discovery and management
- SFP-DDM, Cable diagnostics, ICMPv4/v6 ping
- Alerts via SNMP trap, Syslog, SMTP
- Dual firmware, LLDP/LLDP-MED, NTP support
Industrial Protocols:
- Modbus TCP for SCADA integration
- IEEE 1588v2 PTP (transparent clock)
- ERPS ring protection (G.8032v1/v2), <50ms recovery

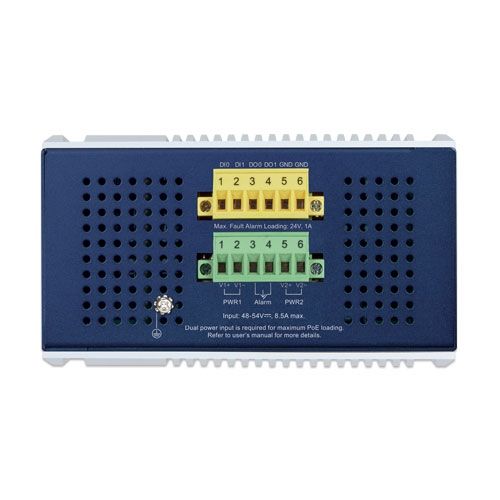

Digital I/O:
- 2 Digital Inputs (DI) / 2 Digital Outputs (DO)
- Sensor integration and remote fault alerts

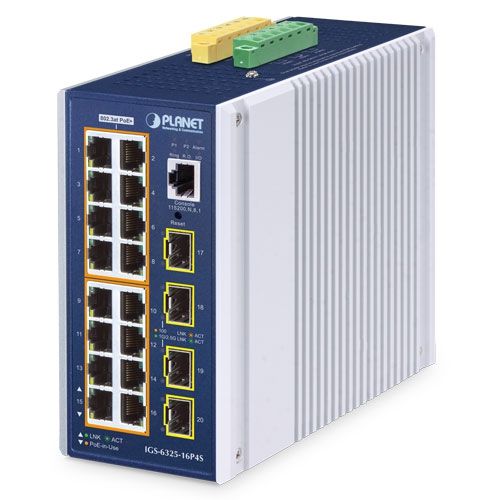

Physical Design:
- IP30 aluminum housing, DIN-rail or wall-mountable
- Dimensions: 76 x 135 x 152 mm
- Weight: 1530 g
- ESD/Surge protection: 6KV
- Operating temperature: -40 ~ 75°C
- Power input: Dual 48–54V DC (redundant, polarity-protected)
Application Scenarios:
- Central PoE provisioning for surveillance and wireless APs
- High-bandwidth industrial network backbone
- Resilient automation and transport networks
