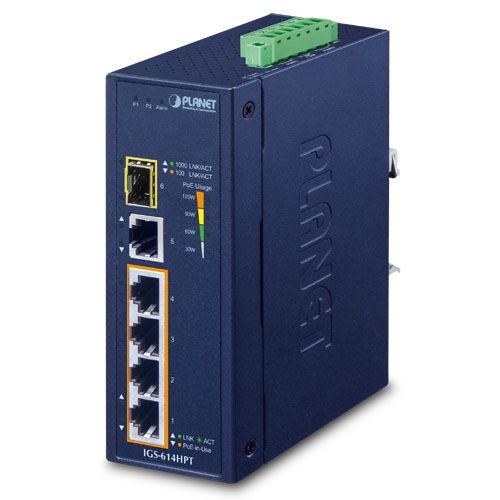

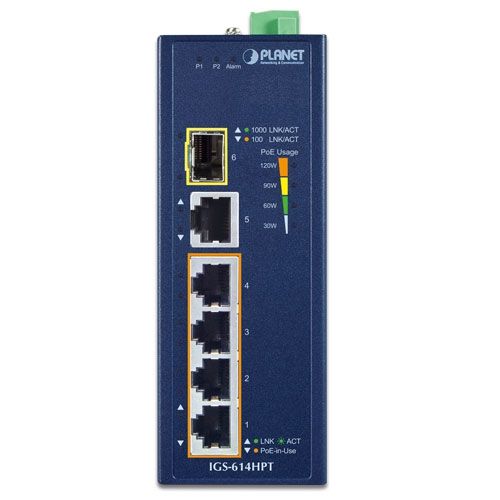

PLANET Industrial 4-Port PoE Switch +1xGE + 1xSFP IGS-614HPT
|
243,15 EUR 245,12 EUR |
|
|
( 289,35 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 1 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Lieske Part No.: | 2178983 |
|---|---|
| Mfg Part No: | IGS-614HPT |
| Weight: | 0.85 kg |
Product information for Planet IGS-614HPT:
Rugged Industrial PoE+ Switch with Fiber Uplink – Reliable Power and Connectivity in Harsh Environments
The PLANET IGS-614HPT is a compact unmanaged industrial-grade Gigabit PoE+ switch featuring four 10/100/1000BASE-T PoE+ ports, one extra RJ45 uplink, and one 100/1000BASE-X SFP slot. Housed in an IP40-rated metal enclosure, it supports wide temperature operation from -40 to 75°C and a robust power design with redundant 12–54V DC inputs. It delivers up to 120 watts total PoE budget, supports real-time LED-based PoE consumption monitoring, and is ideal for applications such as factory surveillance, transportation infrastructure, and IP-based building automation.
Technical Specifications (English):
Interfaces:
- 4 x 10/100/1000BASE-T PoE+ RJ45 ports (up to 36W per port)
- 1 x 10/100/1000BASE-T RJ45 uplink port
- 1 x 100/1000BASE-X SFP slot (supports 100BASE-FX)
PoE Capabilities:
- IEEE 802.3af/at PoE+, end-span
- 120W total power budget
- Auto PD detection
- Per-port LED PoE usage indicators: 30W, 60W, 90W, 120W
Switching Performance:
- Switch architecture: Store-and-Forward
- Switching capacity: 12 Gbps
- Throughput: 8.93 Mpps @ 64 bytes
- MAC table: 2K addresses
- Jumbo frame support: 9K
Power Supply:

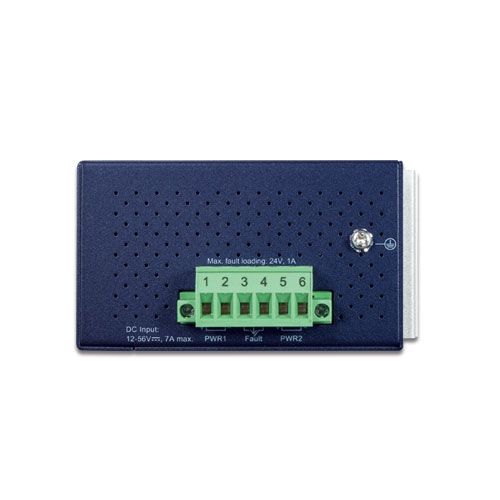

- Dual 12–54V DC inputs, reverse polarity protection
- Power usage (max full load): 139W
- PoE output depends on voltage input:
- 60W @ 12V
- 90W @ 24V
- 120W @ 48–54V
- ESD protection: ±6KV contact, ±8KV air
Housing & Installation:
- IP40 metal enclosure
- Dimensions: 50 x 86.4 x 135 mm
- Weight: 623 g
- Mounting options: DIN rail, wall, or side wall
- Fanless, noiseless operation
Industrial Compliance & Certifications:
- IEC 60068-2-27/-6/-32 shock, vibration, drop resistance
- Operating/storage temperature: -40 ~ 75°C
- Humidity: 5–90% non-condensing
- Certified: FCC, CE, UL
Highlights:
- Plug & Play unmanaged setup
- SFP uplink extends fiber range up to 120 km
- Visual PoE consumption tracking via LED
- Redundant dual power inputs with failure alarm
Application Scenarios:
- Industrial IP camera & NVR deployments
- PoE infrastructure for VoIP, APs in harsh conditions
- Space-limited enclosures with high power demands
