PLANET Industrial IP67 Rated 4-Port 10/100/1000T 802.3at
|
452,48 EUR |
|
|
( 538,45 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1225929 |
|---|---|
| Mfg Part No: | IGS-604HPT-RJ |
| UPC/EAN: | 4711605281584 |
| Weight: | 0.12 kg |
Product information for Planet IGS-604HPT-RJ:
Weatherproof Industrial PoE Switch with RJ45 and Layer 3 Routing

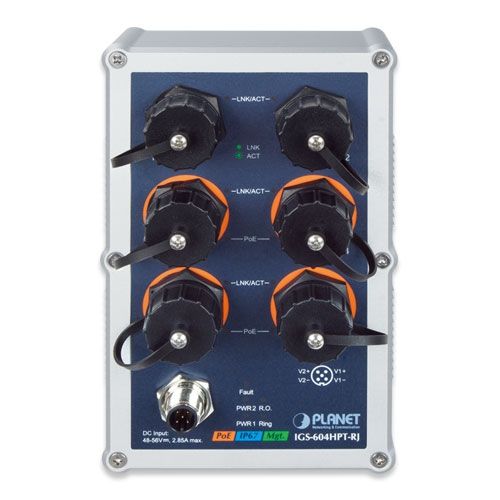

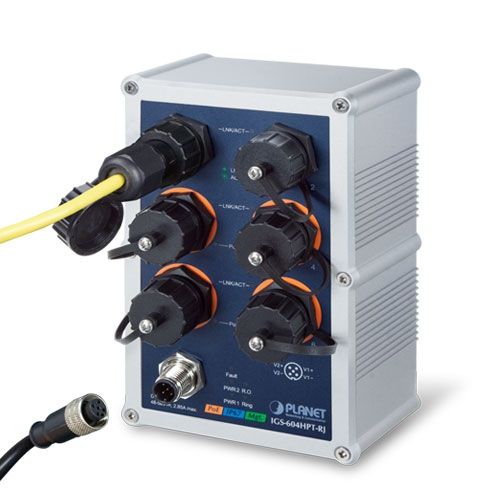

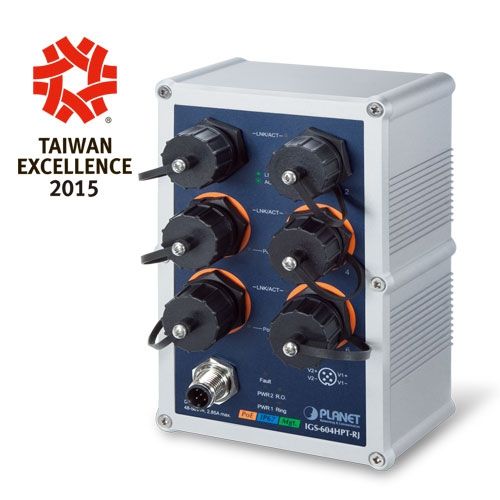

The PLANET IGS-604HPT-RJ is a ruggedized industrial Ethernet switch designed with an IP67-rated aluminum enclosure and six Gigabit RJ45 ports, four of which support IEEE 802.3at PoE+ up to 36 watts per port (144W total). This switch is built for deployment in extreme environments like public infrastructure, transport, or surveillance networks. Its waterproof RJ45 connectors with shielded plugs ensure tight, vibration-resistant data links. The IGS-604HPT-RJ features redundant power inputs, Layer 3 static routing, and intelligent PoE controls such as scheduling, reboot automation, and PD health monitoring, providing both reliability and energy efficiency.
Technical Specifications (English):
Ports:

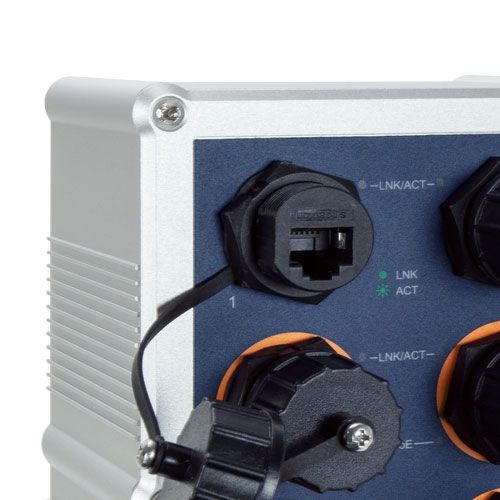

- 6 x 10/100/1000BASE-T RJ45 IP67-rated connectors
- 4 x IEEE 802.3af/at PoE+ ports (Port 3–6)
PoE Features:
- Total power budget: 144W
- Max. 36W per port
- Intelligent management: scheduling, PD alive check, prioritization, recycling
Housing & Installation:
- IP67-rated aluminum enclosure
- Dustproof, waterproof, vibration-resistant
- Wall or DIN-rail mountable
- Dimensions: 103 x 53 x 163 mm
- Weight: 1069 g
Power Supply:
- Dual 48~56V DC inputs with failover
- Max. power consumption: 160W
- EFT/ESD protection: 6KV
Layer 3 Functions:
- Static IPv4/IPv6 routing
- 32 route entries, 8 VLAN interfaces
Layer 2 Capabilities:
- VLAN: 802.1Q, Q-in-Q, MAC/Protocol/Subnet/Voice VLAN (up to 255)
- Spanning Tree: STP, RSTP, MSTP, BPDU Guard
- Link Aggregation: 3 trunks (2 ports each), 4 Gbps total
- IGMP/MLD Snooping, MVR, Port Mirroring
- Storm control, bandwidth control, loop protection
Security:
- 802.1X port/MAC-based, RADIUS, TACACS+
- ACL: MAC/IP (256 entries)
- DHCP Snooping, ARP Inspection, IP Source Guard
- Guest VLAN support, access control policies
QoS & Multicast:
- 8 priority queues
- Traffic prioritization via Port, VLAN, IP, DSCP
- IGMP v1/v2/v3, MLD v1/v2, MVR support
Management & Diagnostics:
- IPv4/IPv6, Web GUI, CLI via Telnet, SNMP v1/v2c/v3
- Secure access via SSH/SSL
- HTTP/TFTP firmware updates, dual firmware images
- Event alerts via SNMP, Syslog, SMTP, RMON
- Diagnostics: cable testing, ping, PD status check
- PLANET Smart Discovery Utility
Special Features:
- IEEE 1588 Precision Time Protocol
- ERPS ring protection with <20ms recovery time
- PoE scheduling and power recycling automation
