PLANET Industrial IP67 Rated 4-Port 10/100/1000T 802.3at
|
574,67 EUR |
|
|
( 683,86 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1225973 |
|---|---|
| Mfg Part No: | IGS-604HPT-M12 |
| UPC/EAN: | 4711605282178 |
| Weight: | 1.5 kg |
Product information for Planet IGS-604HPT-M12:

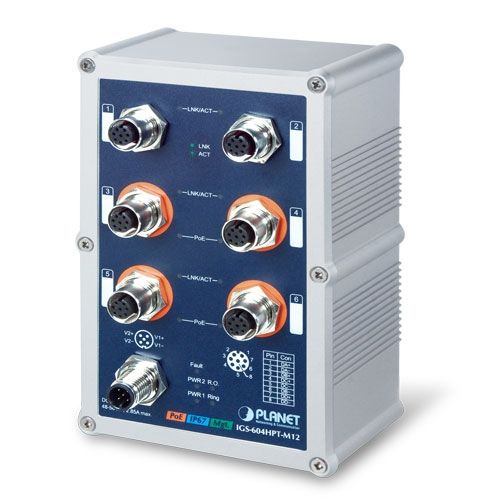

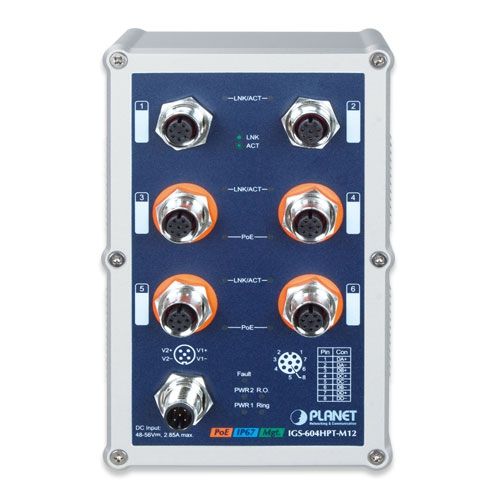

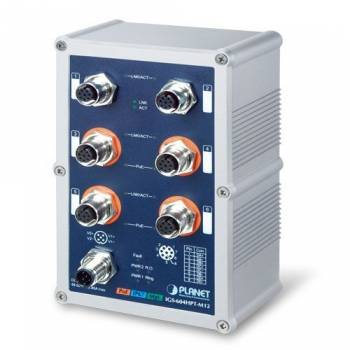

Rugged IP67 Industrial Switch with PoE+ and Layer-3 Routing
The PLANET IGS-604HPT-M12 is a Layer 2+ managed industrial Ethernet switch built with an IP67-rated aluminum enclosure and equipped with six M12 Gigabit Ethernet ports, four of which support IEEE 802.3at PoE+ with up to 36 watts per port (total 144W). Ideal for outdoor, railway, or factory floor deployments, the switch offers a redundant 48–56V DC power input, Layer 3 VLAN routing, ERPS ring protection with <20ms recovery, PD alive check, and PoE scheduling. It is a comprehensive solution for surveillance, VoIP, and industrial automation applications.
Technical Specifications (English):
Ports:
- 6 x 10/100/1000BASE-T M12 A-coded female connectors
- 4 ports (Port 3–6) support IEEE 802.3af/at PoE+
PoE Capabilities:
- Total Power Budget: 144W
- Up to 36W per port (IEEE 802.3at)
- PoE scheduling, PD alive check, scheduled recycling
Housing & Installation:
- IP67-rated aluminum case
- DIN-rail and wall-mountable
- Dimensions: 103 x 53 x 163 mm
- Weight: 1069 g
Power Input:
- Dual 48~56V DC (redundant)
- M12 5-pin power connector
- Max. power consumption: 165.3W
Layer 3 Routing:
- Static IPv4/IPv6 routing
- Up to 32 entries and 8 VLAN interfaces
Layer 2 Functions:
- VLAN: 802.1Q, Q-in-Q, MAC, protocol, subnet, voice VLAN (up to 255 groups)
- Spanning Tree: STP, RSTP, MSTP, BPDU Guard
- Link Aggregation: 3 trunks with 2 ports each (up to 4 Gbps)
- IGMP/MLD Snooping, MVR, Loop Protection
- Port mirroring, storm control, bandwidth control
Security:
- 802.1X port/MAC-based access
- RADIUS/TACACS+ authentication
- ACL: MAC/IP-based, up to 256 entries
- DHCP snooping, IP Source Guard, Dynamic ARP Inspection
- Guest VLAN, access control
QoS & Multicast:
- 8 queues per port
- Priority by port, VLAN, IP, DSCP
- IGMP v1/v2/v3, MLD v1/v2, MVR
Management & Diagnostics:
- Web GUI, CLI (Telnet), SNMP v1/v2c/v3
- Secure access via SSH/SSL
- DHCP, NTP, LLDP, TFTP, Reset, Dual image support
- Cable diagnostics, remote ping, event alerts
- ONVIF discovery, PLANET Smart Discovery Utility
Special Features:
- IEEE 1588v2 Precision Time Protocol (PTP)
- ERPS ring recovery <20ms
- Modbus TCP for SCADA/HMI integration
Package Contents:
- 1 x M12-to-RJ45 cable (2m)
- 1 x M12 power cable (1.2m)
- Wall-mount and DIN-rail kits
- 6 x M12 dust caps
- 1 x M12 power waterproof cap
- Quick Installation Guide
