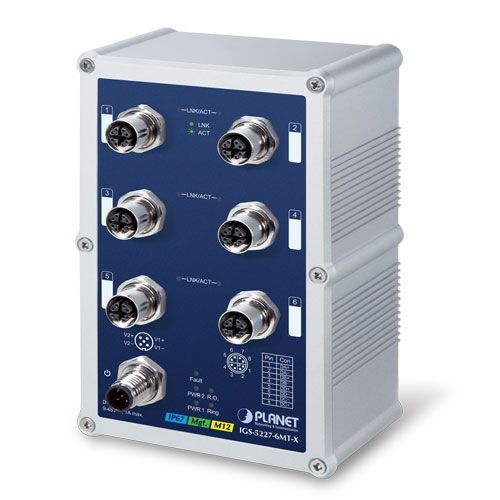

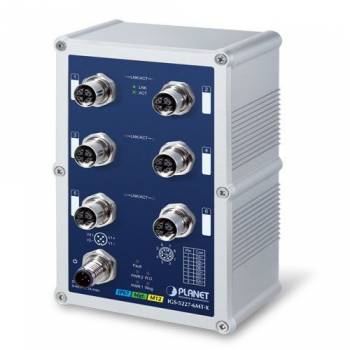

Product information for Planet IGS-5227-6MT-X:
IP67 Industrial Switch with Layer-3 Capability and Rugged M12 Ports
The PLANET IGS-5227-6MT-X is a robust Layer 2+ Managed Ethernet Switch designed for mission-critical outdoor and industrial networking. Equipped with 6 waterproof, vibration-resistant M12 Gigabit ports and an
IP67-rated aluminum enclosure, the device withstands dust, moisture, vibration, and wide temperature extremes. Its Layer 3 static routing, dual DC power input, ERPS ring recovery, and Layer 2–4 security features make it ideal for transportation, automation, and surveillance applications.
Technical Specifications (English):
Ports:

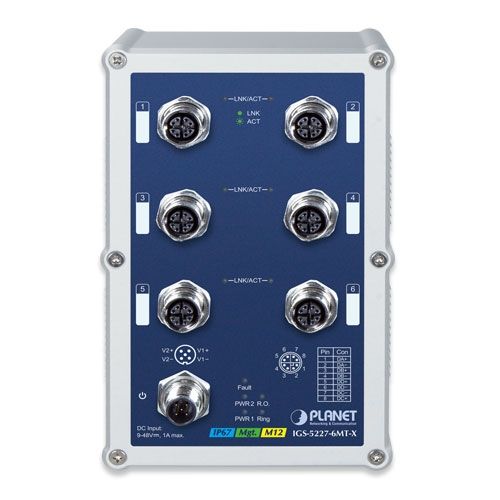

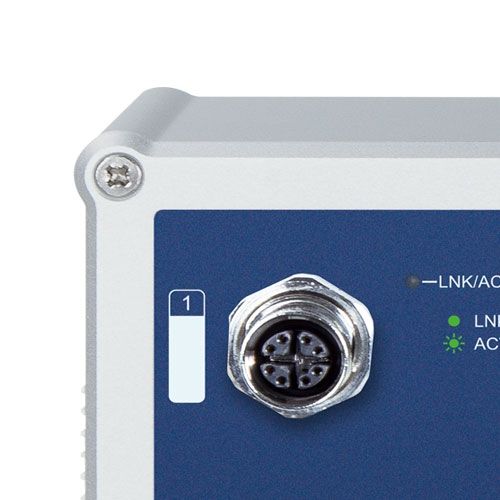

- 6 x 10/100/1000BASE-T M12 X-coded female connectors, auto MDI/MDI-X
Hardware & Enclosure:
- IP67 aluminum housing
- DIN-rail and wall-mountable
- Dimensions: 103 x 53 x 163 mm
- Weight: 1037 g
- ESD Protection: 6KV
Power:
- Dual 9–48V DC redundant power input
- M12 5-pin A-coded male connector
- Power consumption: max. 6.68 W
Layer 2 Features:
- VLAN: 802.1Q, Q-in-Q, MAC-, protocol-, subnet-, voice-based VLANs, up to 255 groups
- Link Aggregation: 3 trunks, up to 6 ports per group, 12 Gbps
- Spanning Tree: STP, RSTP, MSTP, BPDU Guard
- IGMP/MLD Snooping v1–v3, up to 255 multicast groups
- QoS: 8 queues, DSCP/ToS, 802.1p, application/port classification
- Storm Control, Loop Protection, MVR
Layer 3 Routing:
- Static IPv4/IPv6 routing
- Max. 8 VLAN interfaces, 32 routing entries
Security:
- 802.1X port/MAC-based access control
- RADIUS/TACACS+ authentication
- ACL: MAC/IP-based (up to 256 entries)
- DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
- Guest VLAN, private VLAN isolation
Management:
- IPv4/IPv6 dual stack
- Interfaces: Web, Telnet CLI, SNMP v1/v2c/v3, SSH, SSL
- Features: NTP, LLDP, DHCP Server/Relay/Option 82
- SNMP traps, system logs, RMON, TFTP, cable diagnostics
- ONVIF support with device discovery & floor map
- PLANET Smart Discovery Utility
Special Functions:
- IEEE 1588v2 Precision Time Protocol (PTP)
- Modbus TCP for SCADA/HMI
- ERPS G.8032 ring recovery <20ms
- External DI/DO alarms
- Remote ping, real-time diagnostics
Package Contents:

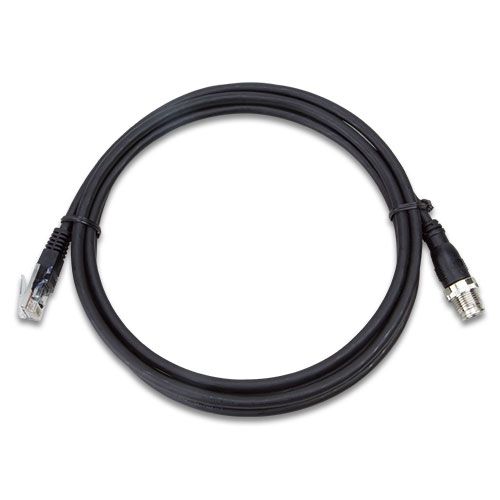

- 1 x 2m M12 to RJ45 cable

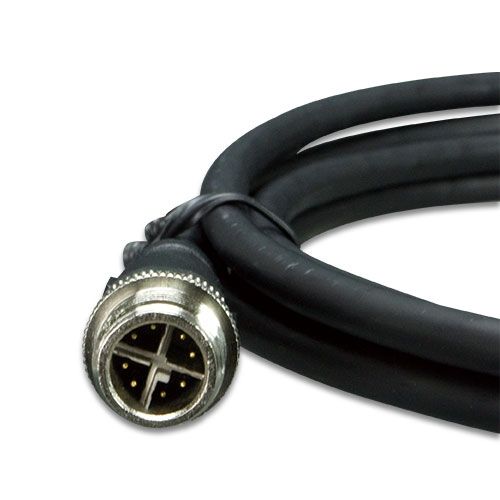

- 1 x 1.2m M12 power cable
- DIN-rail and wall-mount kits

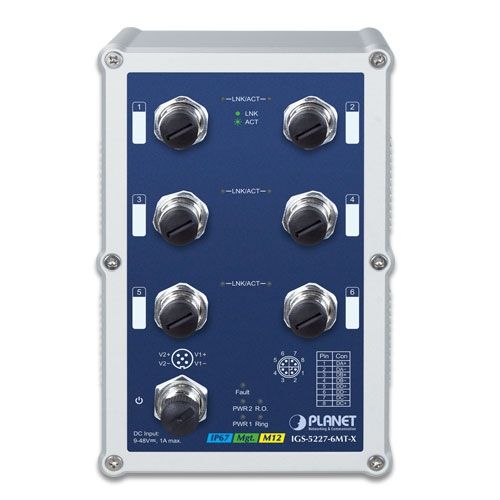

- 6 x M12 dust caps
- Quick installation guide
