PLANET Industrial L2+ 8-Port 10/100/1000T 802.3at PoE+
|
526,49 EUR |
|
|
( 626,52 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 1 workdaysinfo_outline | |
| In Stock: 2 pieces | |
| Lieske Part No.: | 1225935 |
|---|---|
| Mfg Part No: | IGS-5225-8P4S |
| UPC/EAN: | 4711605282420 |
| Weight: | 1.47 kg |
Product information for Planet IGS-5225-8P4S:

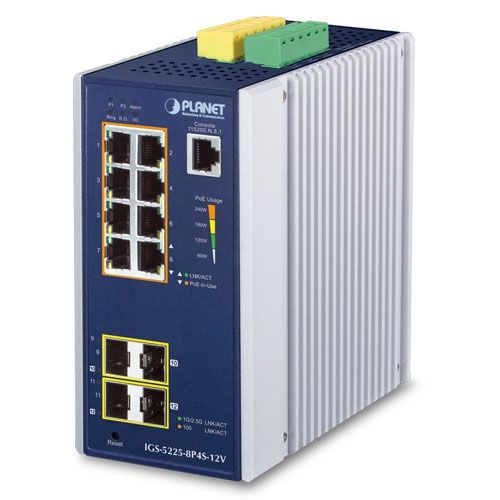

Advanced Industrial L2+ Managed PoE+ Switch with Power Boost and Flexible SFP Uplinks
The PLANET IGS-5225-8P4S-12V is a rugged L2+ industrial managed switch featuring 8 PoE+ Gigabit ports, two 100/1000BASE-X SFP and two 100/1000/2500BASE-X SFP ports. Powered by 12–54V DC input and internal boost circuitry, it eliminates the need for special PoE power supplies. With advanced management, Layer 3 static routing, ERPS ring support, and intelligent PoE functions (Alive Check, PoE Scheduling), it's an ideal switch for surveillance, factory automation, and remote site deployment.
Key Features:
- 8 IEEE 802.3at PoE+ ports, up to 36 W per port, 240W total PoE budget
- 4 SFP ports (2x 1G + 2x 2.5G) for flexible uplinks
- IPv4/IPv6 Layer 3 static routing
- ERPS redundancy ring with <10ms recovery
- PoE scheduling, extend mode (up to 200m), device auto-reboot
- Wide operating temp: -40 to 75 °C, rugged IP30 aluminum housing
Technical Specifications:

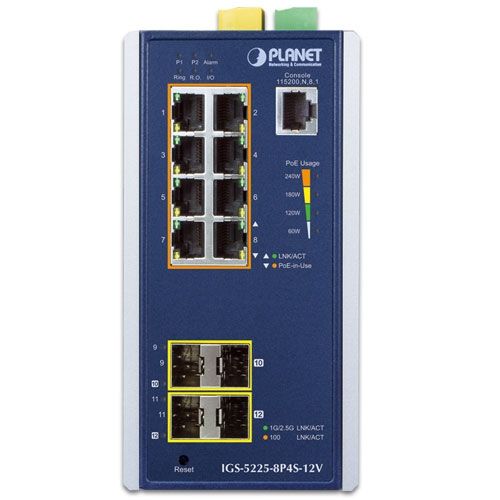

Ports:
- 8 x 10/100/1000BASE-T RJ45 with IEEE 802.3at PoE+
- 2 x 100/1000BASE-X SFP
- 2 x 100/1000/2500BASE-X SFP
- 1 x RJ45 console port
PoE Capabilities:
- IEEE 802.3af/at compliant, up to 36W per port
- Power budget: 60W (12V), 120W (24V), 240W (48V+)
- Extend mode: up to 200 meters
- PoE management: schedule, alive check, port priority, usage thresholds, legacy/force modes
Switching Performance:
- Switch fabric: 30 Gbps
- Throughput: 22.32 Mpps
- MAC table: 8K
- Jumbo frame: 9K bytes
- Store-and-forward architecture
Networking Features:
- VLAN: 802.1Q, Q-in-Q, MAC/IP/Protocol-based, Private, Voice VLAN
- QoS: 8 queues, WRR, strict priority, DSCP marking
- Multicast: IGMP/MLD snooping (v1-v3), MVR
- Spanning Tree: STP, RSTP, MSTP, BPDU guard
- LACP: 6 groups of 4 ports
- ERPS (G.8032): recovery <10ms
- PTP IEEE 1588v2 time sync
- Modbus TCP, LLDP, 802.3ah OAM
Layer 3 Routing:
- Static IPv4/IPv6 routing
- Up to 32 routing entries
- VLAN-based routing interfaces
Security:
- Authentication: 802.1X port/MAC-based, RADIUS, TACACS+, Guest VLAN
- ACLs: IP/MAC-based
- DHCP Snooping, IP Source Guard, ARP Inspection
- User-level command line privileges
Management:
- Interfaces: Web GUI, Telnet, Console, SNMP v1/v2c/v3, SSHv2, TLSv1.2
- Remote alerts: Syslog, SMTP, SNMP trap
- Tools: TFTP/HTTP firmware/config mgmt, dual image, DHCP server/relay
- Monitoring: LLDP, cable diagnostics, SFP-DDM, ONVIF device map
- PLANET NMS and Smart Discovery utility
Hardware & Power:
- Enclosure: IP30 aluminum
- Mounting: DIN-rail or wall
- Dimensions: 76.8 × 107.3 × 152 mm; Weight: 1128 g
- Operating Temp: -40 to 75 °C

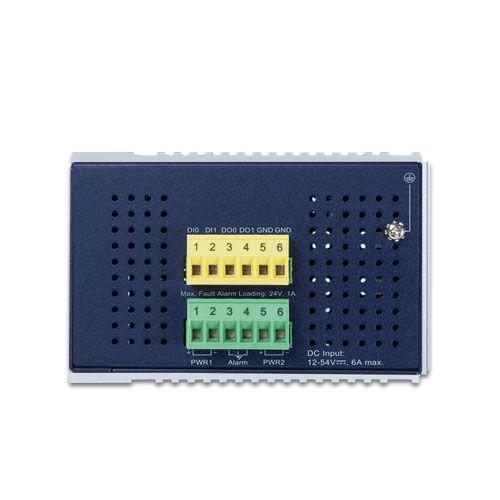

- Power Input: Dual 12–54V DC
