PLANET Industrial 8-Port GE PoE + 2*1G SFP + 2*2.5G SFP
|
597,59 EUR |
|
|
( 711,13 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 2024807 |
|---|---|
| Mfg Part No: | IGS-5225-8P4S-12V |
| UPC/EAN: | 4711605286350 |
| Weight: | 0.12 kg |
Product information for Planet IGS-5225-8P4S-12V:
Industrial L2+ Managed Gigabit PoE+ Switch with Power Boost and Versatile SFP Uplink Ports
The PLANET IGS-5225-8P4S-12V is a rugged, fanless L2+ managed switch designed for mission-critical industrial applications. Equipped with 8 PoE+ Gigabit ports and four SFP uplink slots (2x 1G + 2x 2.5G), it supports high-power devices such as wireless access points and surveillance cameras. With a wide power input range of 12–54V DC and built-in voltage boost circuitry, it eliminates the need for specialized power supplies. Intelligent PoE scheduling, ONVIF support, ERPS ring recovery, and extensive Layer 2/3/4 features make this switch ideal for transportation, manufacturing, and remote edge networks.
Technical Specifications:
Interfaces:

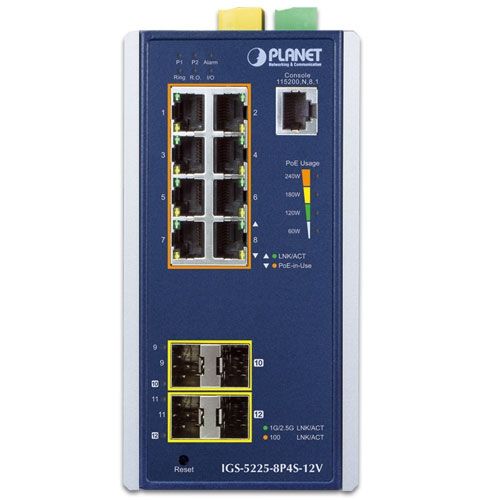

- 8 x 10/100/1000BASE-T PoE+ ports (802.3at)
- 2 x 100/1000BASE-X SFP slots
- 2 x 100/1000/2500BASE-X SFP slots
- 1 x RJ45 console port
PoE Features:
- Compliant with IEEE 802.3at (PoE+) and 802.3af
- Up to 36 W per port, 240 W total budget (depending on voltage)
- Legacy mode, PoE extend mode (up to 200 m)
- Alive check, scheduling, port priority, power monitoring
Networking Capabilities:
- Layer 3: Static IPv4/IPv6 routing (up to 32 entries)
- VLAN: 802.1Q, Q-in-Q, MAC/IP/Subnet/Protocol-based VLANs, voice VLAN
- QoS: 8 queues, DSCP, 802.1p, TOS, application-based traffic prioritization
- Link Aggregation: Up to 6 groups of 4 ports, LACP/static
- Spanning Tree: STP/RSTP/MSTP, ERPS ring (<10ms failover)
- Multicast: IGMP v1–v3, MLD v1–v3, MVR
Security Features:
- Authentication: 802.1X (MAC/Port), RADIUS, TACACS+, Guest VLAN
- Access Control Lists: IP-, MAC-, VLAN-, and protocol-based (up to 256 rules)
- IP Source Guard, DHCP Snooping, Dynamic ARP Inspection
Management & Monitoring:
- IPv4/IPv6 Dual Stack, SNMP v1/v2c/v3, SSHv2, TLSv1.2
- Web GUI, CLI via Telnet or console
- Alarm via SNMP trap, SMTP, Syslog
- Dual firmware, DHCP server/relay, ONVIF device map, LLDP, TFTP
Hardware & Power:

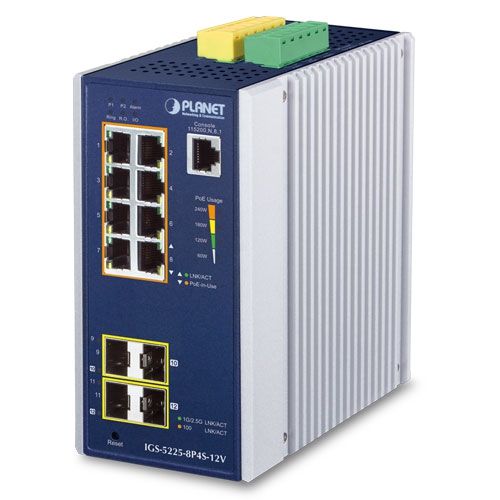

- Fanless IP30 aluminum case
- DIN-rail or wall-mountable
- Dimensions: 76.8 × 107.3 × 152 mm
- Weight: 1128 g
- Operating Temperature: -40 to 75 °C

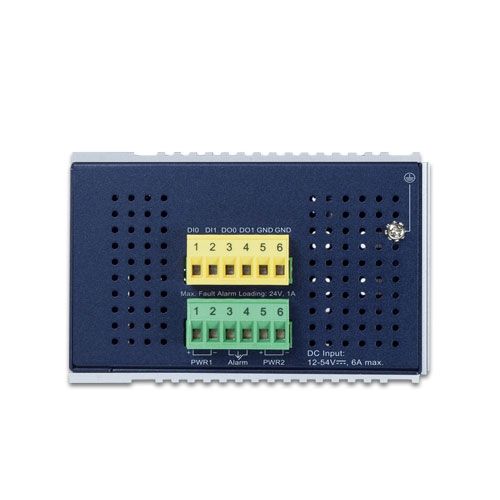

- Power input: Dual 12–54 V DC
- Power consumption: up to 249 W (full PoE load)
Questions & answers
What is the delivery time of PLANET Industrial 8-Port GE PoE + 2*1G SFP + 2*2.5G SFP?
The article PLANET Industrial 8-Port GE PoE + 2*1G SFP + 2*2.5G SFP is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 16 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Planet IGS-5225-8P4S-12V to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you PLANET Industrial 8-Port GE PoE + 2*1G SFP + 2*2.5G SFP always at the best possible price. We can give you a discount of 2% on PLANET Industrial 8-Port GE PoE + 2*1G SFP + 2*2.5G SFP if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
