PLANET Industrial L2+ 8-Port 10/100/1000T 802.3at PoE+
|
596,59 EUR |
|
|
( 709,94 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 1 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Lieske Part No.: | 1225936 |
|---|---|
| Mfg Part No: | IGS-5225-8P2S2X |
| UPC/EAN: | 4711605282352 |
| Weight: | 1.43 kg |
Product information for Planet IGS-5225-8P2S2X:

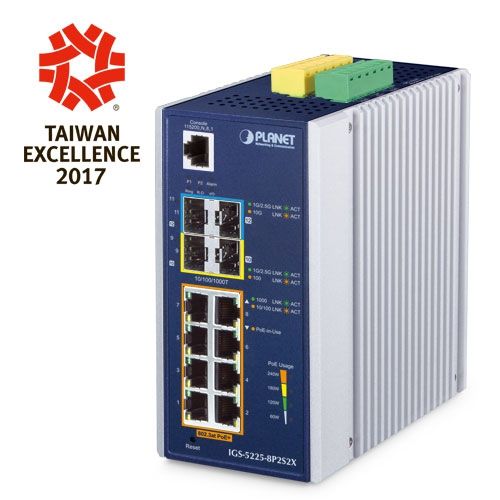

Industrial Layer-3 Managed Switch with 10G Uplinks and Intelligent PoE
PLANET’s IGS-5225-8P2S2X is a powerful industrial L2+/L3 switch featuring eight 10/100/1000BASE-T PoE+ ports and two 10G SFP+ uplinks, making it ideal for high-bandwidth and high-power applications like Wi-Fi 6 access points, PTZ cameras or VoIP systems. With a rugged IP30 aluminum housing and wide operating temperature (-40 to 75 °C), this switch is built for harsh industrial conditions.
Redundancy, Performance, and Secure Network Integration
It supports advanced Layer-2 to Layer-4 features, Layer-3 static and dynamic routing (RIP, OSPF), and smart PoE controls including PD Alive Check, PoE scheduling, and usage monitoring. With ITU-T G.8032 ERPS support and 10G uplinks, the switch ensures maximum uptime and ultra-fast network recovery (10ms), while robust security tools safeguard the infrastructure.
Technical Specifications:
Ports:

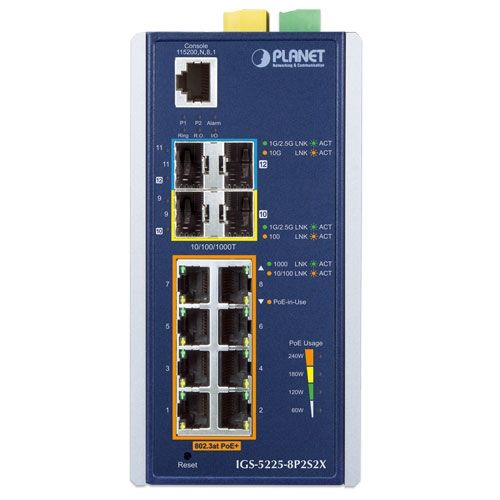

- 8 x 10/100/1000BASE-T RJ45 with PoE+ (up to 36W per port)
- 2 x 100/1000/2500BASE-X SFP
- 2 x 10GBASE-SR/LR SFP+
- 1 x RJ45 console port
Performance:
- Switch Fabric: 66Gbps
- Throughput: 49.1Mpps
- MAC Address Table: 32K
- Jumbo Frame: 10K bytes
PoE Capabilities:
- Total PoE Budget: up to 240W
- IEEE 802.3at compliant
- Advanced PoE features: schedule, usage LEDs, PD reboot, Extend Mode (up to 200m)
Routing & Networking:
- Layer-3: Static, RIP v1/v2, OSPF v2/v3
- IPv4/IPv6 VLAN routing (up to 128 entries)
Security:
- IEEE 802.1X, MAC-based authentication
- RADIUS, TACACS+, ACL (MAC/IP)
- DHCP Snooping, ARP Inspection, IP Source Guard
Additional Features:
- Modbus TCP, ONVIF discovery, LLDP/LLDP-MED
- Ring redundancy with 10ms recovery (ERPS)

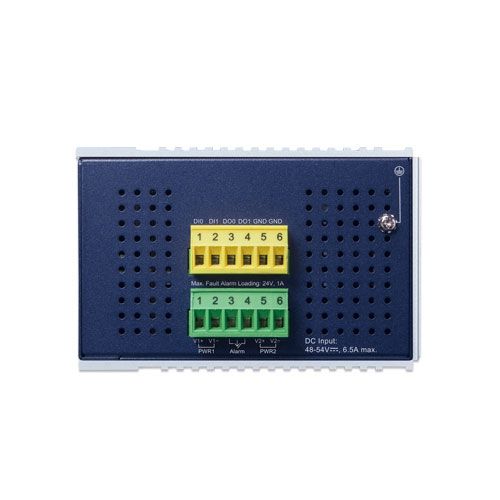

- Digital Input/Output (2 DI, 2 DO), Alarm relay output
Hardware & Power:
- Enclosure: IP30 Aluminum
- Mounting: DIN-rail, wall-mount
- Dimensions: 86 × 107.3 × 152 mm, Weight: 1353g
- Operating Temp: -40 to 75 °C
- Dual 48–54 V DC input
