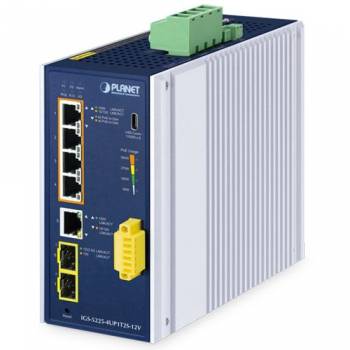

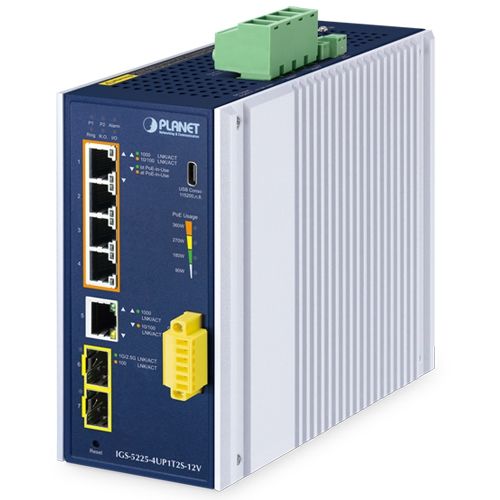

PLANET Industrial L2+ 4-Port 10/100/1000T Ultra PoE+
|
474,49 EUR |
|
|
( 564,64 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1225937 |
|---|---|
| Mfg Part No: | IGS-5225-4UP1T2S |
| UPC/EAN: | 4711605282444 |
| Weight: | 1.38 kg |
Product information for Planet IGS-5225-4UP1T2S:
High-Power PoE++ Switching for Demanding Industrial Environments
PLANET’s IGS-5225-4UP1T2S-12V is a rugged industrial L2+ Managed PoE++ switch designed for harsh environments and sustainable energy systems. Supporting a wide 9~54V DC input range, it's ideal for solar or wind power sources. With four 802.3bt PoE++ ports delivering up to 95W each, one additional RJ45 port, and two 2.5GBASE-X SFP slots, the switch accommodates powerful devices such as PTZ cameras, digital signage, or high-throughput wireless APs.
Reliable, Sustainable, and Deployment-Ready
Encased in a compact IP30 aluminum chassis and withstanding temperatures from -40 to 75 °C, this model ensures reliability under extreme conditions. Smart PoE features include PD Alive Check, scheduled reboot, usage monitoring, and PoE extension up to 250m. Network administrators benefit from robust cybersecurity tools and Layer 3 VLAN routing, while full IPv6/IPv4 dual-stack and Modbus TCP support make it SCADA- and cloud-ready.
Technical Specifications:
Interfaces:

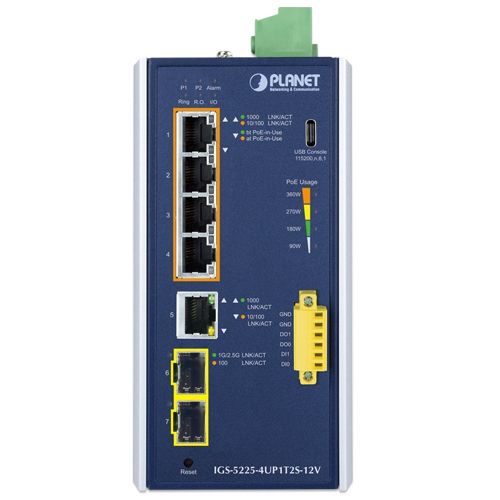

- 4 x 10/100/1000BASE-T PoE++ (IEEE 802.3bt)
- 1 x 10/100/1000BASE-T RJ45
- 2 x 100/1000/2500BASE-X SFP
- 1 x USB-C console
- 2 x Digital Input, 2 x Digital Output, 1 x Alarm relay
PoE Specifications:
- Max. power per port: up to 95W
- Total PoE budget: up to 360W (depends on input voltage)
- Supports Standard, Legacy, and Force modes
Power Input:

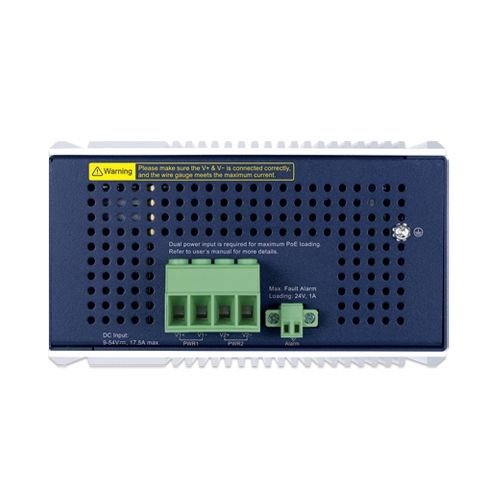

- Dual 9~54V DC with boost function
- Redundant power input design
Certifications & Protection:
- ESD protection: 6 kV
- EFT protection: 6 kV
- Compliant with: IEEE 802.3af/at/bt, 802.1Q, 802.1x, SNMPv3, IPv6, Modbus TCP
Operating Temperature:
- -40 to +75 °C
Mounting:
- DIN-rail and wall-mountable
Housing/Dimensions:
- Aluminum enclosure, IP30 rated
- Size: 76 x 135 x 152 mm
- Weight: 1400 g
Questions & answers
What is the delivery time of PLANET Industrial L2+ 4-Port 10/100/1000T Ultra PoE+?
The article PLANET Industrial L2+ 4-Port 10/100/1000T Ultra PoE+ is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 16 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Planet IGS-5225-4UP1T2S to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you PLANET Industrial L2+ 4-Port 10/100/1000T Ultra PoE+ always at the best possible price. We can give you a discount of 2% on PLANET Industrial L2+ 4-Port 10/100/1000T Ultra PoE+ if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
