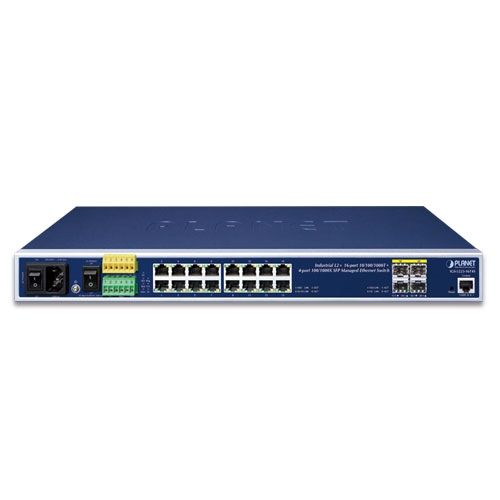

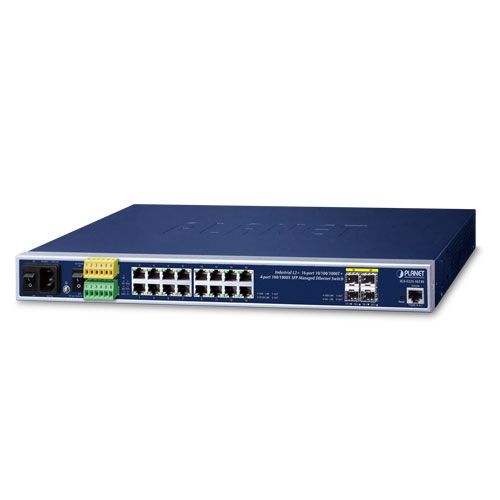

PLANET IGS-5225-16T4S – Industrial-Grade L2+/L3 Managed Gigabit Switch

Powerful Backbone Switch for Industrial and Telecom Applications

The PLANET IGS-5225-16T4S is a robust Layer 2+/Layer 3 managed switch with 16 Gigabit RJ45 ports and 4 dual-speed SFP uplinks. Featuring 40Gbps switching fabric, IPv4/IPv6 routing, ERPS support, and advanced Layer 2 security, it is ideal for industrial, telecom, and high-availability applications.

ERPS and Redundant Power for Network Resilience

Supports ITU-T G.8032 ERPS with <20ms recovery and features dual AC/DC power inputs. Designed to endure industrial conditions with front-facing DI/DO alarms, it enables critical alert integration and uninterrupted network operations.

Advanced L3 Routing and VLAN Segmentation

With support for up to 32 static IPv4/IPv6 routes and inter-VLAN routing via up to 8 VLAN interfaces, the switch delivers high flexibility and control across network segments.

Comprehensive Layer 2 and Security Suite

Extensive VLAN support, IGMP/MLD snooping, and LACP combined with advanced security (802.1X, ACLs, DHCP Snooping, IP Source Guard) ensure safe, efficient operation in complex environments.

Technical Highlights

Ports:

• 16 × 10/100/1000BASE-T RJ45 ports
• 4 × 100/1000BASE-X SFP slots (100BASE-FX compatible)
• 1 × RJ45 console port (RS232)

Performance:

• Switching Capacity: 40 Gbps, Throughput: 29.76 Mpps
• Jumbo Frames: 9K, MAC Table: 8K, Shared Buffer: 4Mbit
• Store-and-Forward architecture

Layer 2 Features:

• VLAN: 802.1Q, Q-in-Q, Voice VLAN, MAC/IP/Protocol VLANs
• LACP: 10 groups, up to 16 ports per group
• Spanning Tree: STP, RSTP, MSTP
• ERPS Ring Support (<10ms recovery with up to 16 nodes)
• IGMP/MLD Snooping, MVR, LLDP/LLDP-MED

Layer 3 Capabilities:

• Static IPv4/IPv6 Routing (up to 32 routes)
• 8 VLAN Interfaces

Security Features:

• IEEE 802.1X with RADIUS/TACACS+
• DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
• ACL: IP/MAC-based (256 entries), Port Security

QoS and Bandwidth Control:

• 8 queues per port, DSCP/ToS/CoS/Port priority
• Traffic policing, DSCP remarking
• Ingress/Egress shaping

Alarm & Monitoring:

• 2 DI / 2 DO ports for alarm sensor integration
• Relay output for power failure alerts

Management & Diagnostics:

• Interfaces: Web, CLI, Telnet, SNMP v1/v2c/v3
• Secure Access: SSHv2, TLSv1.2
• Dual firmware image, TFTP, LLDP, NTP
• SFP-DDM, cable diagnostics, ICMP ping, RMON

Housing & Power:

• 1U rack-mountable, IP30 metal case
• Power: 100–240 V AC and 36–60 V DC, redundant
• Max. power: 15.2 W
• Protection: ESD/EFT 6kV

Environment:

• Operating Temp:
• DC: –40 to +75 °C
• AC: –10 to +60 °C
• Humidity: 5–95% (non-condensing)

Ideal for:

• Industrial automation
• Telecom carriers (IEEE 1588 PTP support)
• Network surveillance
• Metro Ethernet cores
