PLANET Industrial 4-Port PoE + 1-Port SFP IGS-514PT
|
136,04 EUR 137,21 EUR |
|
|
( 161,89 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 1 workdaysinfo_outline | |
| In Stock: 2 pieces | |
| Lieske Part No.: | 2184482 |
|---|---|
| Mfg Part No: | IGS-514PT |
| UPC/EAN: | 4711605288453 |
| Weight: | 0.39 kg |
Product information for Planet IGS-514PT:

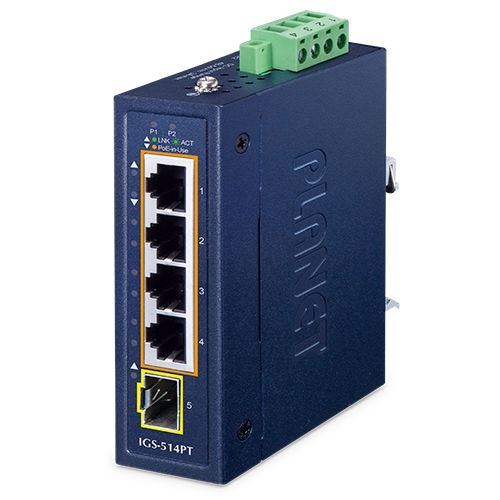

PLANET IGS-514PT – Compact Industrial PoE+ Switch with Fiber Uplink
High-Power and Compact Solution for Industrial Environments
The PLANET IGS-514PT is one of the smallest industrial-grade switches with four 802.3at PoE+ Gigabit ports and one 100/1000X SFP slot. Delivering up to 120 watts total PoE power and supporting -40 to 75 °C operating range, it is housed in a rugged IP30 metal case and ideal for space-constrained installations in harsh environments.
Fiber-Optic Uplink for Long-Range Applications
Its SFP slot supports both 100BASE-FX and 1000BASE-X modules, enabling fiber connections of up to 120 km. This makes it suitable for FTTH, FTTC, or FTTB networks in industrial campuses, ISP backbones, or municipal infrastructure.
Redundant Power for Continuous Operation

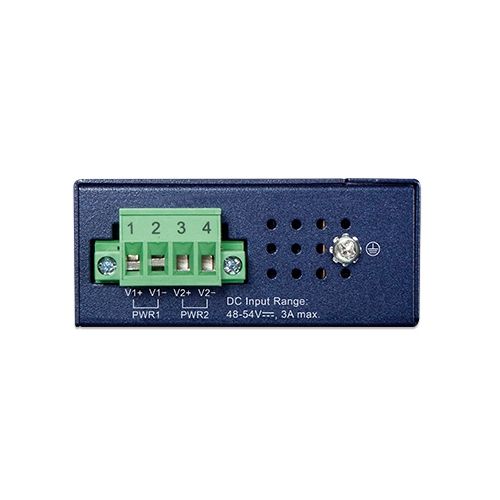

Dual 48–54 V DC power inputs ensure uninterruptible uptime. In case of power source failure, the switch automatically switches to the backup supply without impacting operations.
Reliable PoE+ Power Delivery
Compliant with IEEE 802.3at, each of the four PoE ports can deliver up to 30 W, making it ideal for powering IP cameras, access points, and VoIP phones. No software configuration is needed, and extended PoE distances up to 250 m can be achieved using PLANET PoE extenders.
Technical Specifications
Power & Build:
Standards & Compliance:
High-Power and Compact Solution for Industrial Environments
The PLANET IGS-514PT is one of the smallest industrial-grade switches with four 802.3at PoE+ Gigabit ports and one 100/1000X SFP slot. Delivering up to 120 watts total PoE power and supporting -40 to 75 °C operating range, it is housed in a rugged IP30 metal case and ideal for space-constrained installations in harsh environments.
Fiber-Optic Uplink for Long-Range Applications
Its SFP slot supports both 100BASE-FX and 1000BASE-X modules, enabling fiber connections of up to 120 km. This makes it suitable for FTTH, FTTC, or FTTB networks in industrial campuses, ISP backbones, or municipal infrastructure.
Redundant Power for Continuous Operation
Dual 48–54 V DC power inputs ensure uninterruptible uptime. In case of power source failure, the switch automatically switches to the backup supply without impacting operations.
Reliable PoE+ Power Delivery
Compliant with IEEE 802.3at, each of the four PoE ports can deliver up to 30 W, making it ideal for powering IP cameras, access points, and VoIP phones. No software configuration is needed, and extended PoE distances up to 250 m can be achieved using PLANET PoE extenders.
Technical Specifications

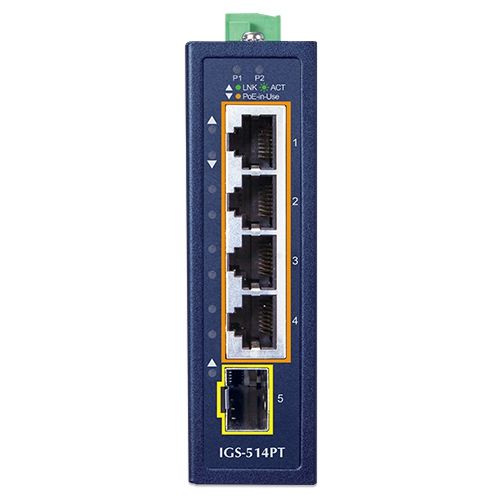

Ports:
- 4 × 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X
- 1 × 100/1000BASE-X SFP slot (100BASE-FX compatible)
PoE:
- Standard: IEEE 802.3at (PoE+), backward compatible with 802.3af
- Budget: up to 120 W total
- Power per Port: max. 30 W
- PoE Method: End-span (1/2+, 3/6–)
Switching:
- Architecture: Store-and-Forward
- Switch Fabric: 10 Gbps
- MAC Table: 2K entries
- Jumbo Frame: 9K
- Throughput: 7.4Mpps @64-byte packets
- Flow Control: IEEE 802.3x and Backpressure
Power & Build:
- Housing: Fanless IP30 metal
- Dimensions: 30 × 70 × 104 mm, Weight: 260 g
- Power Input: 48–54 V DC, 3A max, dual input with reverse polarity protection
- Power Consumption: up to 135 W full PoE load
- Mounting: DIN-rail or wall-mount
Protection:
- ESD: ±6KV contact, ±8KV air
- Surge: ±6KV
- Operating Temp: -40 to 75 °C
Standards & Compliance:
- IEEE 802.3/802.3u/802.3ab/802.3z/802.3az
- IEEE 802.1p QoS, VLAN transparency
- Regulatory: FCC Class A, CE
- Shock, vibration, and drop tested (IEC 60068)
