PLANET Industrial 4-Port GE Switch + Port 100/1000X SFP
|
119,36 EUR |
|
|
( 142,04 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 549733 |
|---|---|
| Mfg Part No: | IGS-510TF |
| UPC/EAN: | 4711605284448 |
| Weight: | 0.36 kg |
Product information for Planet IGS-510TF:
Rugged, Space-saving Networking for Demanding Environments
The PLANET IGS-510TF is a compact industrial-grade switch featuring 4 Gigabit copper ports and 1 SFP fiber slot, all enclosed in an IP30-rated durable metal case. It supports a wide operating temperature from -40 to 75 °C and redundant 9–48 V DC or 24 V AC power inputs for stable operation in harsh industrial settings.
Fiber Uplink for Extended Network Reach
Equipped with an SFP port that supports both 100BASE-FX and 1000BASE-X transceivers, the switch enables long-distance connections up to 120 km. It is ideal for ISP applications such as FTTH, FTTC, or enterprise FTTB deployments requiring high bandwidth and secure transmission.
Redundant Power for Maximum Uptime
The IGS-510TF’s dual power inputs ensure uninterrupted operation. If one power source fails, the switch instantly switches to the backup input without affecting connectivity.
Energy Efficient Performance
Using IEEE 802.3az and intelligent power-saving features, the switch reduces consumption by adapting to link activity and cable length – saving energy while maintaining full performance.
Compact Design for Tight Spaces
Designed for installations in wall enclosures or control panels, its slim 30 mm width allows for easy DIN rail or wall-mounting, making it suitable for any space-restricted industrial environment.
Technical Specifications
Ports:
- 4 x 10/100/1000BASE-T RJ45 (Auto-MDI/MDI-X)
- 1 x SFP slot for 100/1000BASE-X
Switching:
- Architecture: Store-and-Forward
- Switch Fabric: 10Gbps
- MAC Address Table: 2K entries
- Jumbo Frame: 9K
- IEEE 802.3x and Backpressure Flow Control

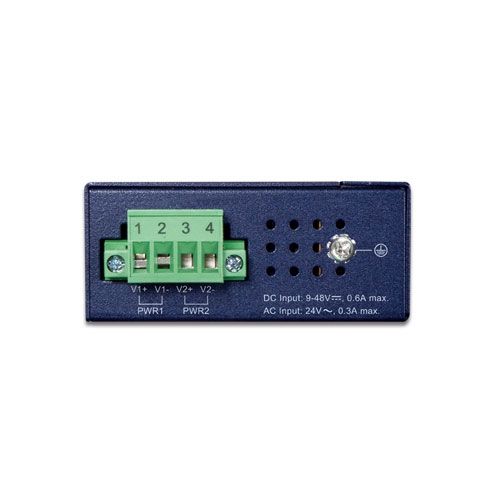

Power:
- 9–48V DC or 24V AC
- Redundant inputs with reverse polarity protection
- Max consumption: 2.4W
Protection & Build:
- ESD Protection: ±6KV, Surge Immunity: ±6KV
- IP30-rated fanless metal housing
- Dimensions: 30 × 70 × 104 mm
- Weight: 239g
- Mounting: DIN-rail or wall-mount
Environmental:
- Operating Temperature: -40 to 75 °C
- Humidity: 5–90% (non-condensing)
Standards Compliance:
- IEEE 802.3/802.3u/802.3ab/802.3z/802.3az
- IEEE 802.1p QoS
- Certifications: FCC Part 15 Class A, CE
- IEC 60068-tested for drop, shock, and vibration
Questions & answers
What is the delivery time of PLANET Industrial 4-Port GE Switch + Port 100/1000X SFP?
The article PLANET Industrial 4-Port GE Switch + Port 100/1000X SFP is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 16 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Planet IGS-510TF to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you PLANET Industrial 4-Port GE Switch + Port 100/1000X SFP always at the best possible price. We can give you a discount of 2% on PLANET Industrial 4-Port GE Switch + Port 100/1000X SFP if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
