PLANET Industrial 4-Port 10/100/1000T PoE+ + 1-Port GE
|
181,07 EUR |
|
|
( 215,47 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 309767 |
|---|---|
| Mfg Part No: | IGS-504PT |
| UPC/EAN: | 4711605286046 |
| Weight: | 0.12 kg |
Product information for Planet IGS-504PT:
High Power PoE Solution for Rugged Industrial Networks

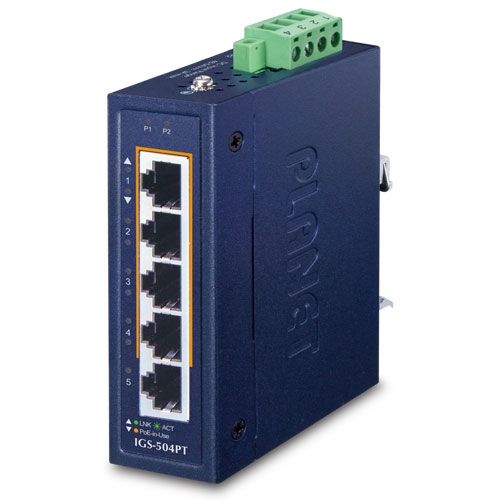

The PLANET IGS-504PT is the smallest industrial 4-Port PoE+ switch in the PLANET lineup, specifically built for space-constrained industrial environments. With four 802.3at PoE+ ports and one uplink port, it delivers up to 120W total PoE power budget and full Gigabit performance in challenging conditions ranging from -40 to 75 °C.
Plug-and-Play High Power PoE
This unmanaged switch provides up to 30W per port with IEEE 802.3at support, suitable for high-demand devices like IP cameras, APs, or VoIP phones. It can extend PoE range using PLANET’s PoE extenders for deployments beyond 100 meters.
Dual Power Input for Network Resilience

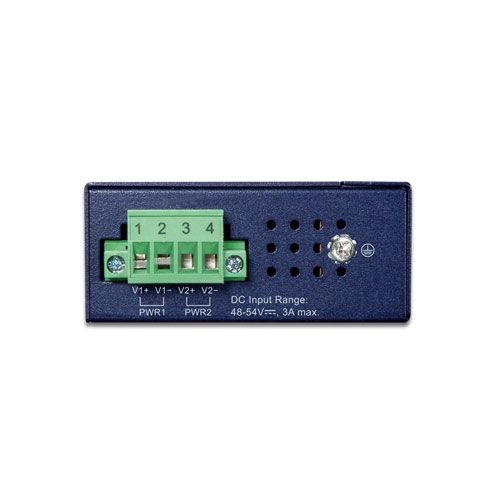

The switch supports dual 48–54V DC power inputs with reverse polarity protection. In the event of one power source failure, the system automatically switches to the secondary input, ensuring uninterrupted operation.
Compact and Durable for Industrial Environments
Housed in an IP30-rated metal case, the IGS-504PT resists electromagnetic interference and surges. The fanless design ensures silent and reliable operation. With a width of just 30mm, it’s ideal for DIN-rail or wall-mounted installations in space-limited control cabinets.
Technical Specifications
Interfaces:

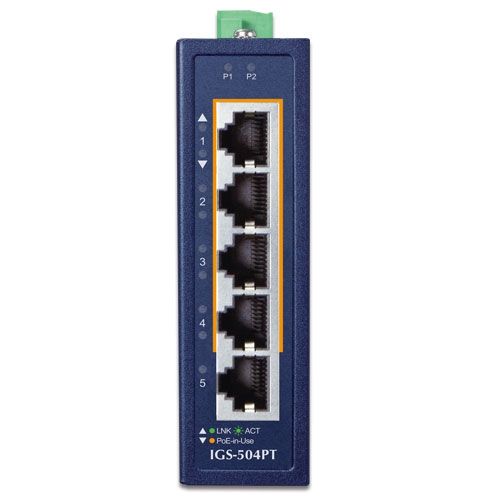

- 5 x 10/100/1000BASE-T RJ45 (Ports 1–5)
- 4 IEEE 802.3at PoE+ ports (Ports 1–4)
PoE Features:
- Per port up to 30W @54V DC
- Total PoE budget: 120W
- Auto-detects PDs (IEEE 802.3af/at)
- End-span: Pin 1/2(+), 3/6(-)
Switching:
- Architecture: Store-and-Forward
- Switch Fabric: 10Gbps
- MAC Table: 2K entries
- Jumbo Frame: 9K
- IEEE 802.1Q VLAN transparency
- IEEE 802.3x / Backpressure Flow Control
Power Supply:
- Input: 48–54V DC, max. 3A
- Redundant input with 4-pin terminal block
- Max Power: 123.12W (full load at 54V)
Mechanical & Protection:
- Enclosure: IP30 metal case
- Dimensions: 30 x 70 x 104 mm
- Weight: 260g
- ESD: ±6KV, Surge: ±6KV
- Mounting: DIN rail or wall-mount
Environment:
- Operating Temp: -40 to 75 °C
- Humidity: 5–90% (non-condensing)
Standards Compliance:
- IEEE 802.3/802.3u/802.3ab/802.3x/802.3az
- IEEE 802.3af/at PoE+
- FCC Part 15 Class A, CE
- IEC 60068-2-32/27/6 (Drop/Shock/Vibration)
