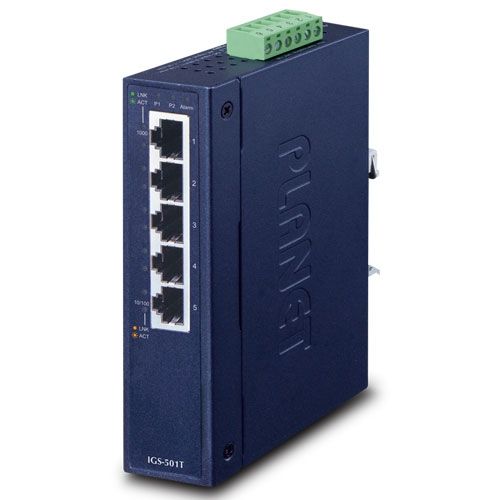

PLANET IGS-501T – Compact 5-Port Gigabit Industrial Switch for Space-Constrained Installations

Slim Design, High Efficiency, Industrial Strength

The PLANET IGS-501T is a compact, industrial-grade 5-port Gigabit Ethernet switch, ideal for space-limited applications in harsh environments. Its IP30-rated metal enclosure, dual power input (9–48V DC or 24V AC), and extended operating temperature range (-40 to 75 °C) ensure stable operation in critical conditions.

Designed for IIoT deployments, this switch features plug-and-play setup, green energy efficiency via IEEE 802.3az, and rugged surge protection. With ultra-low power consumption and compact form factor (only 32 mm wide), it fits perfectly into control cabinets and wall enclosures.

Key Features:

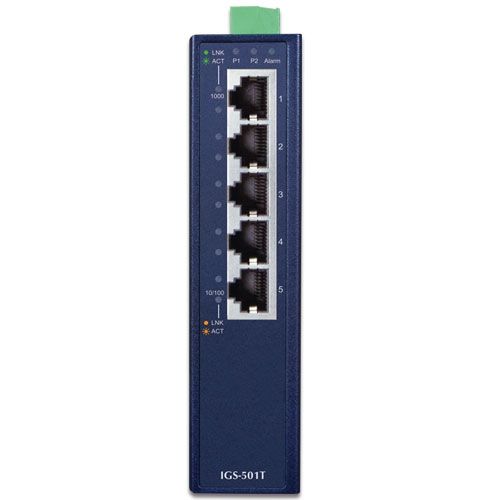

• 5 x 10/100/1000BASE-T RJ45 ports (Auto MDI/MDI-X)
• Compact IP30 metal housing with DIN-rail/wall mount
• Redundant power input: 9–48V DC / 24V AC
• Energy-efficient: IEEE 802.3az and auto power saving
• -40 to 75 °C operating range with 6KV ESD/EFT protection
• Just 32 mm wide – ideal for tight spaces

Specifications:

Ports:

• 5 x Gigabit Ethernet RJ45 ports
• Supports jumbo frames up to 9K

Switching:

• Architecture: Store-and-Forward
• Switch Fabric: 10 Gbps
• MAC Address Table: 2K entries
• Buffer Memory: 4 Mbits
• Throughput: 7.4 Mpps @64 bytes

Power Supply:

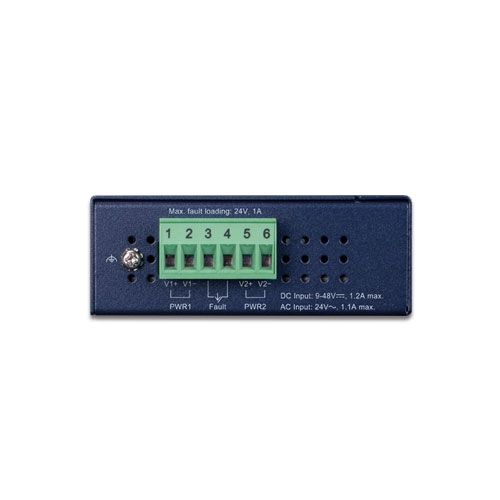

• Input: 9–48 V DC / 24 V AC (redundant, reverse polarity protected)
• Alarm Relay: 1A @ 24V for power failure
• Max. Power Consumption: 2.8W

Enclosure & Protection:

• IP30-rated aluminum case
• Dimensions: 32 x 87.8 x 135 mm
• Weight: 430g
• Installation: DIN rail or wall mount
• ESD Protection: ±6KV
• EFT Protection: ±6KV

Environmental:

• Operating Temperature: -40 to 75 °C
• Humidity: 5–90% (non-condensing)

Standards:

• IEEE 802.3, 802.3u, 802.3ab, 802.3az, 802.3x, 802.1p
• Regulatory: FCC, CE
• IEC 60068-tested for shock, vibration, and free fall
