PLANET IGS-4215-8UP4X – Rugged 10G Industrial PoE++ Switch with L3 Routing and Modbus Integration

High-Power PoE++ with Intelligent Control and Advanced Layer 3 Capabilities

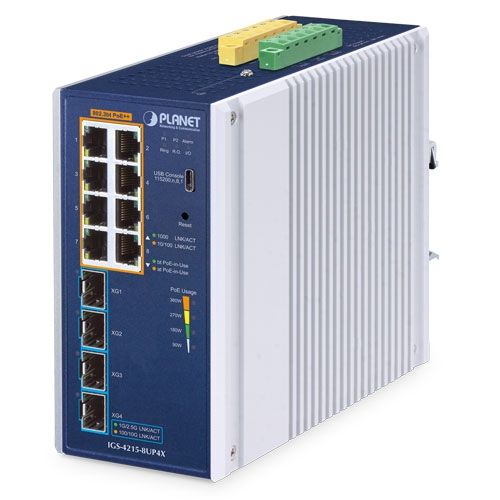

The IGS-4215-8UP4X from PLANET is a DIN-rail mounted industrial switch offering robust performance in harsh environments. With 8 IEEE 802.3bt PoE++ ports delivering up to 95 watts each and four 10G SFP+ slots, it provides up to 360W of total PoE power. The switch also supports L3 static routing for inter-VLAN communication, enhancing network flexibility without the cost of a full router.

Its rugged IP30 metal housing, wide -40 to 75°C temperature support, and digital I/O with Modbus TCP integration make it ideal for factory automation, surveillance, and infrastructure networks. Smart PoE functions include power scheduling, auto-recovery (PD Alive Check), and long-distance PoE extension up to 250 meters.

Key Features:

• 8 x 10/100/1000BASE-T PoE++ Ports (IEEE 802.3bt, up to 95W each)
• 4 x 10G SFP+ fiber uplink slots, backward compatible
• 360W PoE budget (dual DC input), 240W with single power
• Layer 3 static routing (IPv4/IPv6)
• Modbus TCP for SCADA integration
• DI/DO alerts with SNMP trap notification
• Advanced PoE features: PD monitoring, schedules, thermal shutdown

Specifications:

Network Interfaces:

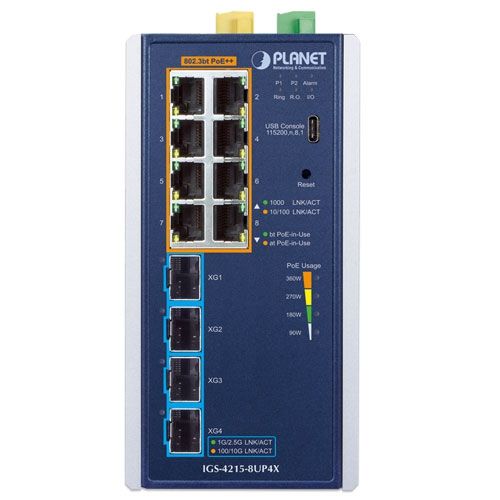

• 8 x RJ45 (PoE++), 4 x SFP+ (1G/2.5G/10G), 1 x USB Type-C Console

PoE Capabilities:

• Standard: IEEE 802.3af/at/bt Type-4
• Output per port: up to 95W
• Total Budget:
• 360W (dual 54V DC)
• 240W (single input)
• Management:
• PD Alive Check, PoE Scheduling
• PoE Extend Mode: 250m at 40W
• Per-port control and priority

L2/L3 Switching:

• VLAN: 802.1Q, Q-in-Q, Voice, GVRP
• STP, RSTP, MSTP, ERPS
• Link Aggregation: 8 groups x 8 ports
• IGMP/MLD Snooping (v2/v3), up to 256 groups
• ACL and QoS: 8 queues, DSCP, IP/TCP/UDP classification

Security:

• 802.1X, RADIUS/TACACS+, IP Source Guard
• Static MAC filtering, DoS protection, DHCP Snooping
• ARP Inspection

Management:

• Web GUI, CLI (Telnet/SSH), SNMP v1/v2c/v3
• Secure access: TLS 1.3, SSHv2, SNMPv3
• Logging: Syslog, SNMP traps, RMON
• Remote tools: PLANET UNI-NMS, CloudViewerPro

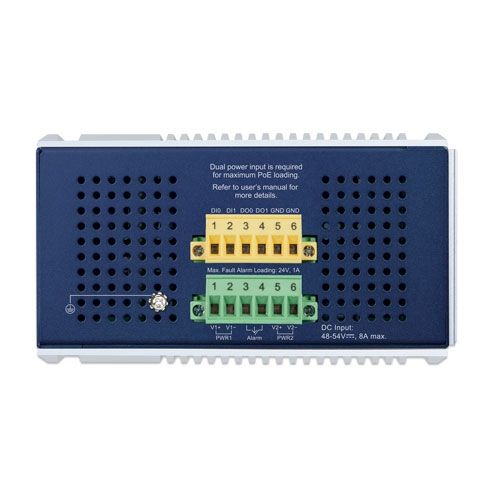

Alarm Integration:

• DI: 2 digital input (e.g., intrusion sensor)
• DO: 2 digital output (alert relay)
• SNMP Trap support for I/O events

Mechanical & Environment:

• Dimensions: 76 x 135 x 152 mm, Weight: 1361g
• IP30 Aluminum Enclosure
• Temperature: -40 to 75°C
• Surge: 4KV, ESD: ±6KV (contact), ±8KV (air)

Switch Performance:

• Fabric: 96Gbps, Throughput: 71.43Mpps
• MAC Table: 16K, Jumbo Frame: 12K
