PLANET IGS-4215-8P2T2S – High Power PoE++ Switch for Industrial Automation and Surveillance

Full 802.3bt PoE++ Power with Intelligent Management in Rugged Enclosure

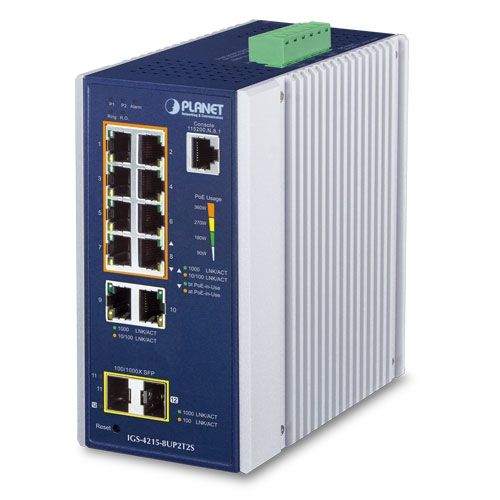

The PLANET IGS-4215-8P2T2S is a rugged, DIN-rail L2/L4 Managed Industrial PoE++ Switch designed to deliver up to 360W of total PoE power across 8 ports. With support for IEEE 802.3bt (95W per port), it enables seamless deployment of high-power devices like PTZ cameras, touch panels, and digital signage over standard Cat5e cabling. With dual power inputs and intelligent PoE monitoring, this switch is engineered for uninterrupted operation in harsh industrial settings ranging from -40 to 75 °C.

Key Highlights:

• 8 x IEEE 802.3bt PoE++ ports (up to 95W each)
• 2 x RJ45 + 2 x SFP for fiber uplink

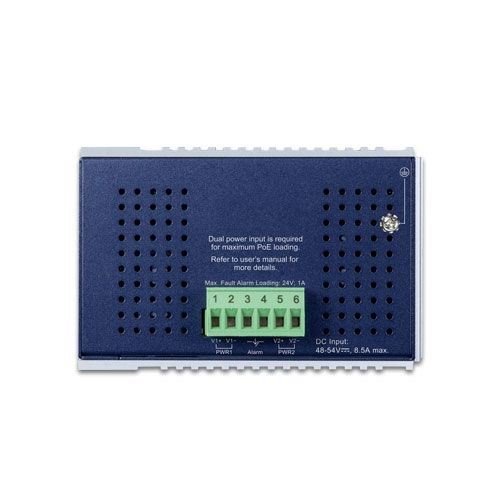

• Dual DC input for up to 360W PoE budget
• PoE watchdog, scheduling, extension mode (250m)
• Layer 2+ switching with ERPS, VLAN, STP, QoS
• Secure access with ACL, 802.1X, RADIUS/TACACS+

Technical Summary:

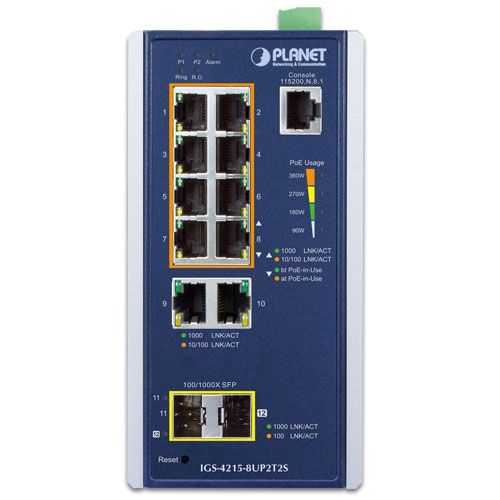

Interfaces:

• 10 x Gigabit RJ45 (Ports 1–10, PoE on 1–8)
• 2 x 100/1000BASE-X SFP (Ports 11–12)
• 1 x RJ45 Console

PoE Capabilities:

• Standards: IEEE 802.3af/at/bt
• Modes: End-span / Mid-span / Force
• Output:
• Up to 95W per port (bt)
• Up to 360W total (dual input)
• Management:
• PD Alive Check
• Power Scheduling
• Real-time Usage LEDs
• Extend Mode to 250m

Performance:

• Switch Fabric: 24 Gbps
• Throughput: 17.85 Mpps
• MAC Table: 8K
• Buffer: 4.1Mbits
• Jumbo Frame: 10 KB

Environment:

• Case: IP30 aluminum
• Dimensions: 76.8 × 107.3 × 152 mm
• Weight: 1091g
• Operating Temp: -40 to 75 °C
• Surge/ESD: 4KV / ±6kV contact, ±8kV air

Layer 2 & QoS:

• VLAN: 802.1Q, Q-in-Q, Voice, Protocol, GVRP
• STP/RSTP/MSTP, LACP (6 groups), Port Mirror
• IGMP/MLD Snooping with Querier
• QoS: 8 Queues, WRR, DSCP/802.1p

Security:

• ACL (IPv4/IPv6/MAC), 802.1X Auth
• Port Security, DoS, DHCP Snooping
• ARP Inspection, IP Source Guard

Management:

• CLI, Web GUI, SNMP v1/v2c/v3, SSH, TLS
• Features: Dual Image, Syslog, RMON, TFTP/HTTP
• PLANET Tools: NMS, Smart Discovery, CloudViewer

Certifications:

• FCC Class A, CE, EN55032/55035, ICES-003
• IEC tested for vibration, shock, free fall
